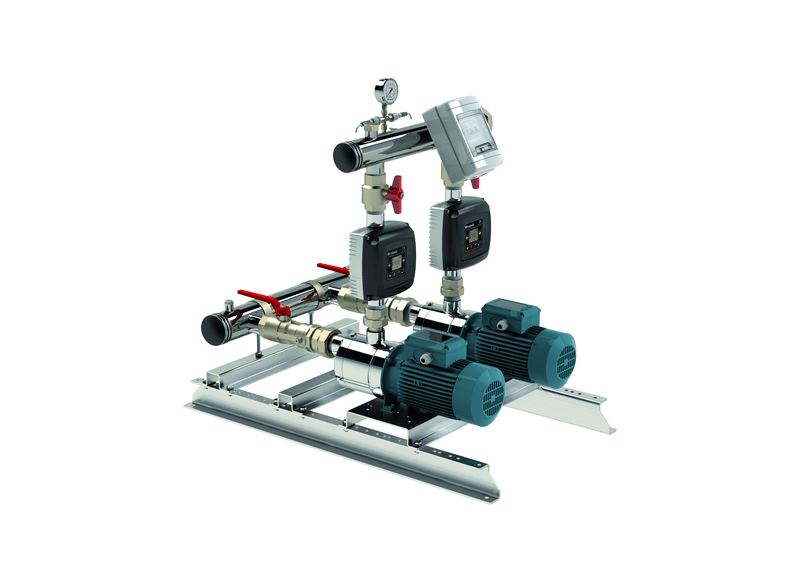

Calpeda BSM2V 2MXHL 802-EMT 2 x 0.75kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
High-volume hot and cold water distribution across commercial complexes and multi-unit developments is supported by the twin-pump Calpeda BSM2V 2MXHL 802-EMT booster set. Incorporating 2 Calpeda MXHL 802 horizontal multistage pumps, this duplex skid delivers combined flows up to 433.4 L/Min. To support elevated outlets and long pipe runs, the package can deliver up to 20.5 m of head. Dual-pump architecture provides both peak-demand capacity staging and critical duty-standby redundancy for uninterrupted building water supply.
Coordinated speed modulation across both units is governed by integrated I-MAT frequency converters mounted directly on each pump. Working in tandem, the onboard inverters adjust motor speed proportionally to maintain a steady downstream pressure while alternating lead and lag roles to equalize wear. Built-in monitoring tracks power usage and protects each pump against dry running, overcurrent, and abnormal pressure drops.
Full-bore AISI 304 stainless steel suction and delivery manifolds ensure low-velocity, corrosion-free water routing across both pumping lanes. Site pipework connects to a 65 mm suction header and a 50 mm discharge manifold, outfitted with individual isolation ball valves and non-return check valves on each branch. A system pressure gauge and a delivery header connection point for an external vessel complete the hydraulic layout.
Each inverter accepts a single-phase 230 V power feed and converts it to drive the three-phase 230/400 V motor windings. Utilizing a 2-pole induction design running at roughly 2900 rpm (50 Hz), each motor is rated at 0.75 kW (P2) and draws 2 A at full load. Manufactured to IEC 60034 standards with Class F insulation, the twin drives deliver long-lasting mechanical reliability.
Key Features
- Twin-Pump Multistage Hydraulics: Combines two 2-stage stainless steel horizontal pumps for high flow capacity and built-in operational backup.
- Dual I-MAT Inverter Control: Each pump carries its own variable frequency drive for smooth cascade staging, duty alternation, and constant pressure.
- Large-Bore Stainless Manifolds: AISI 304 suction and delivery headers minimize friction loss and resist corrosion in hot or cold water loops.
- Wide Liquid Temperature Window: Capable of handling fluids across a thermal range from -15 °C to +110 °C in HVAC and domestic systems.
- High-Specification Motor Windings: Built to IEC 60034 standards with Class F thermal insulation to withstand continuous commercial operation.
- Individual Branch Isolation: Fitted with dedicated ball valves and non-return check valves so either pump can be serviced while the other runs.
- External Vessel Connection: Features a pre-fitted port on the discharge header for attaching an external diaphragm tank.
- Factory Tested Duplex Skid: Supplied fully assembled and tested on a heavy-duty baseplate, backed by a 24 Months warranty.
What's Included
- 2 x Calpeda MXHL 802 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 433 L/Min |
| Max Head | 20.5 m |
| Power | 2 x 0.75 kW / 415v |
| Rated Current | 2 x 2 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What combined peak flow draw can this twin pump variable speed booster system discharge?
Operating dual multistage pumps in synchronized duty assist mode, the Calpeda Variable Speed Booster Set BSM2V 2MXHL 802-EMT achieves a collective maximum delivery of 433.4 L/min (26 m³/h).
Which electrical power mains and variable speed frequency converter regulate this booster set?
Dual induction motors totaling 1.5 kW run the BSM2V 2MXHL 802-EMT on single phase 230V power at 50 Hz, coordinated by dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Capable of lifting water up to 20.5 metres of total head, the BSM2V-2MXHL-802-EMT conforms to a 10 bar maximum casing limit and operates across up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Constructed with AISI 316L chromium-nickel-molybdenum stainless steel multistage pumps, the BSM2V 2 MXHL 802-EMT is seated on an AISI 304 Stainless Steel Baseplate with isolating valves and G 2 1/2" BSP inlet with G 2" BSP outlet manifolds.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Protection for the 2MXHL 802-EMT (BSM2V 2MXHL 802-EMT) is secured by Calpeda manufacturer warranty coverage guarding the pump wet end, electric motor assembly, and variable speed drive against defects from date of invoice.
