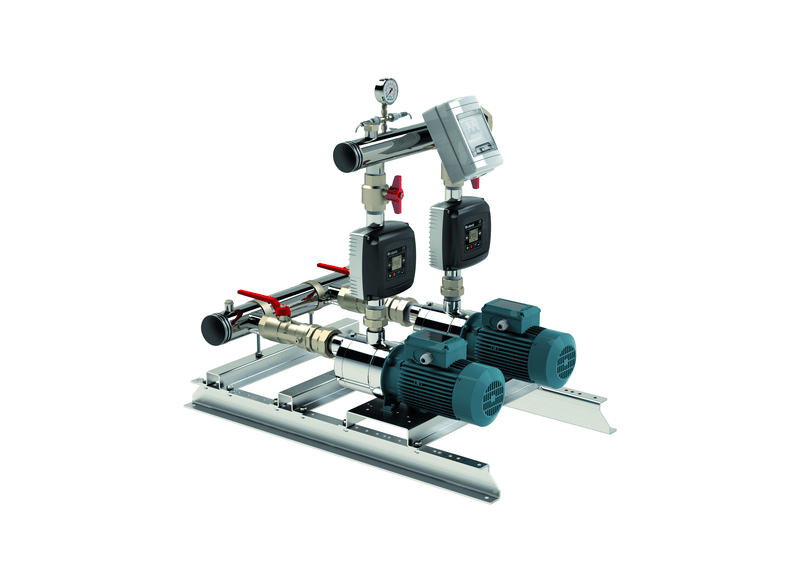

Calpeda BSM2V 2MXHL 803-EMT 2 x 1.1kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Simultaneous draw-offs in hotels, schools, and large apartment buildings require the balanced flow and head of the Calpeda BSM2V 2MXHL 803-EMT duplex booster. Engineered around 2 Calpeda MXHL 803 horizontal multistage pumps, this twin-pump package supplies up to 433.4 L/Min. For demanding vertical distribution, the multistage design can build up to 32 m of head. Having two parallel pumping units ensures smooth capacity sharing during peak hours alongside dependable standby security.
Synchronized variable-speed control is provided by integrated I-MAT frequency converters mounted directly on each pump motor. As fixture demand fluctuates, the twin drives modulate rotational speed and stage the second pump seamlessly to hold a constant manifold pressure. Automatic duty cycling balances runtime between both units while onboard electronics guard against dry running, overload, and supply faults.
Robust AISI 304 stainless steel suction and discharge manifolds link both pumps while preventing rust and scaling in heated or potable water. Plumbers connect building mains to a 65 mm inlet header and a 50 mm outlet manifold, equipped with full-bore isolation ball valves and non-return check valves for each pump. A clear pressure gauge and an external vessel connection port on the delivery header simplify installation.
Operating from a single-phase 230 V supply, the onboard inverters power three-phase 230/400 V motor windings with high electrical efficiency. Each 2-pole induction motor runs at approximately 2900 rpm (50 Hz), producing 1.1 kW (P2) of shaft output while drawing 2.7 A. Full compliance with IEC 60034 standards and Class F winding insulation guarantees resilient performance in plant rooms.
Key Features
- Duplex Multistage Configuration: Utilizes two 3-stage stainless steel pumps to deliver high flow rates and reliable backup capability.
- Pump-Mounted I-MAT Inverters: Independent frequency converters modulate speed and alternate pump duty to save energy and extend seal life.
- Corrosion-Proof AISI 304 Headers: Stainless steel suction and delivery manifolds maintain water hygiene and structural strength.
- Hot and Cold Fluid Capability: Designed to pump liquids safely across a temperature spectrum from -15 °C to +110 °C.
- Weatherproof Motor Design: Sealed to IP54 standards and constructed with Class F insulation in accordance with IEC 60034.
- Independent Service Valving: Includes isolation ball valves and non-return check valves on each pump leg for uninterrupted maintenance.
- Delivery Header Tank Port: Incorporates a dedicated connection point on the discharge manifold for an external pressure vessel.
- Turnkey Duplex Package: Arrives factory assembled, wired, and tested on a common frame with a 24 Months warranty.
What's Included
- 2 x Calpeda MXHL 803 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 433 L/Min |
| Max Head | 32 m |
| Power | 2 x 1.1 kW / 415v |
| Rated Current | 2 x 2.7 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which electrical supply input and dual communicating frequency inverters coordinate both motors?
Twin motors totaling 2.2 kW power the Calpeda Variable Speed Booster Set BSM2V 2MXHL 803-EMT, operating from single phase 230V 50 Hz mains electricity through dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Capable of lifting water up to 32 metres of total head, the BSM2V 2MXHL 803-EMT conforms to a 10 bar maximum casing limit and operates across up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Constructed with AISI 304 chromium-nickel stainless steel multistage pumps, the BSM2V-2MXHL-803-EMT is seated on a Zinc-plated Steel S235JR Baseplate with isolating valves and G 2 1/2" BSP inlet with G 2" BSP outlet manifolds.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Protection for the BSM2V 2 MXHL 803-EMT is secured by Calpeda manufacturer warranty coverage guarding the pump wet end, electric motor assembly, and variable speed drive against defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Configured for synchronized parallel staging, the 2MXHL 803-EMT (BSM2V 2MXHL 803-EMT) achieves a collective maximum rated flow capacity of 433.4 L/min (26 m³/h) during peak draw.
