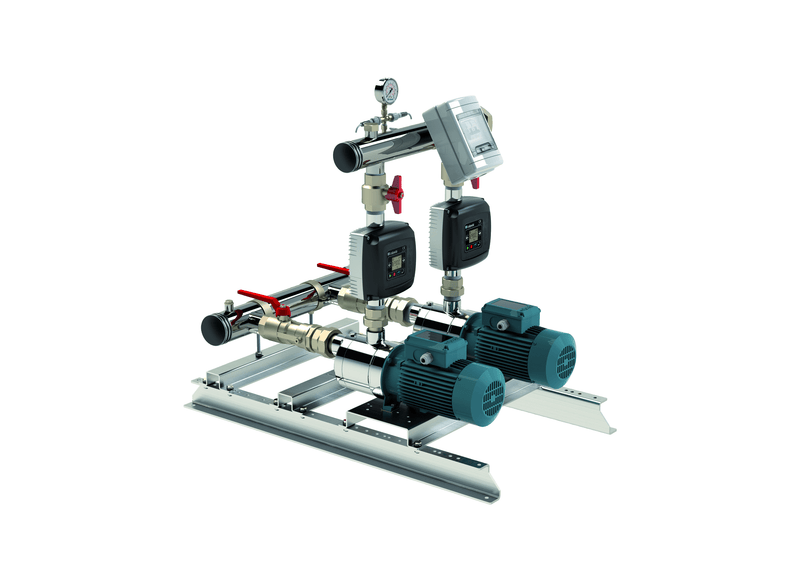

Calpeda BSM2V 2MXHL 804-EMT 2 x 1.5kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Extensive commercial plumbing networks and multi-zone hot-water loops achieve unyielding pressure stability with the Calpeda BSM2V 2MXHL 804-EMT twin-pump booster. Featuring 2 Calpeda MXHL 804 horizontal multistage pumps on a unified skid, this system delivers full-load flows up to 433.4 L/Min. Up to 42.5 m of delivery head can be developed to keep upper-level fixtures properly pressurised. It is purpose-built for hospitals, industrial estates, and multi-storey residences demanding high flow and dual-pump resilience.
Proportional cascade regulation is driven by integrated I-MAT frequency converters mounted atop each individual pump unit. By continuously tracking downstream pressure, the inverters adjust motor frequency to maintain exact setpoint pressure and bring the assist pump online smoothly during peak draw-offs. Energy consumption tracking, automatic duty alternation, and dry-run protection are all built into the drive logic.
Heavy-duty AISI 304 stainless steel suction and delivery headers unify the twin pumps while resisting corrosion across long service intervals. Field connections are made via a 65 mm suction inlet and a 50 mm discharge outlet, supported by per-pump isolation ball valves and non-return check valves. The delivery manifold also houses a system pressure gauge and a connection point for an external diaphragm tank.
Each drive connects to a single-phase 230 V electrical feed and supplies a three-phase 230/400 V motor winding for smooth variable-speed torque. Running on a 2-pole induction architecture at roughly 2900 rpm (50 Hz), each motor delivers 1.5 kW (P2) of mechanical power and draws 3.6 A. Engineered to IEC 60034 benchmarks with Class F insulation, the motors withstand continuous thermal loading.
Key Features
- High-Capacity Duplex Hydraulics: Pairs two 4-stage stainless steel horizontal pumps to handle heavy flow demands with elevated head pressure.
- Synchronized I-MAT Frequency Drives: Onboard inverters provide stepless speed modulation, automatic lead-lag alternation, and soft-start protection.
- Hygienic Stainless Manifolds: Fabricated from AISI 304 stainless steel on both suction and delivery sides to prevent rust and pressure loss.
- Broad Thermal Operating Range: Handles chilled water and high-temperature hot water from -15 °C to +110 °C without compromise.
- Industrial Enclosure Protection: Motors feature IP54 environmental sealing, Class F thermal insulation, and IEC 60034 compliant construction.
- Per-Pump Isolation and Check Valves: Equipped with shut-off ball valves and non-return valves so one pump can be isolated while the system stays live.
- Ready for Buffer Vessel: Includes a factory-fitted port on the discharge header for connecting an external expansion tank.
- Commissioning-Ready Assembly: Shipped fully piped, wired, and factory tested on a rigid base, backed by a 24 Months warranty.
What's Included
- 2 x Calpeda MXHL 804 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 433 L/Min |
| Max Head | 42.5 m |
| Power | 2 x 1.5 kW / 415v |
| Rated Current | 2 x 3.6 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across dual operation, under what maximum elevation head and collective casing pressure does this package operate?
Twin multistage pumps elevate clean water up to 42.5 metres on the Calpeda Variable Speed Booster Set BSM2V 2MXHL 804-EMT, rated for 10 bar maximum casing pressure across up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Constructed with AISI 304 chromium-nickel stainless steel multistage pumps, the BSM2V 2MXHL 804-EMT is seated on a Zinc-plated Steel S235JR Baseplate with isolating valves and G 2 1/2" BSP inlet with G 2" BSP outlet manifolds.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Protection for the BSM2V-2MXHL-804-EMT is secured by Calpeda manufacturer warranty coverage guarding the pump wet end, electric motor assembly, and variable speed drive against defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Configured for synchronized parallel staging, the BSM2V 2 MXHL 804-EMT achieves a collective maximum rated flow capacity of 433.4 L/min (26 m³/h) during peak draw.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Electrical connection for the 2MXHL 804-EMT (BSM2V 2MXHL 804-EMT) requires single phase 230V power at 50 Hz, driving twin motors totaling 3 kW via dual communicating EASYMAT variable speed frequency converters (230V).
