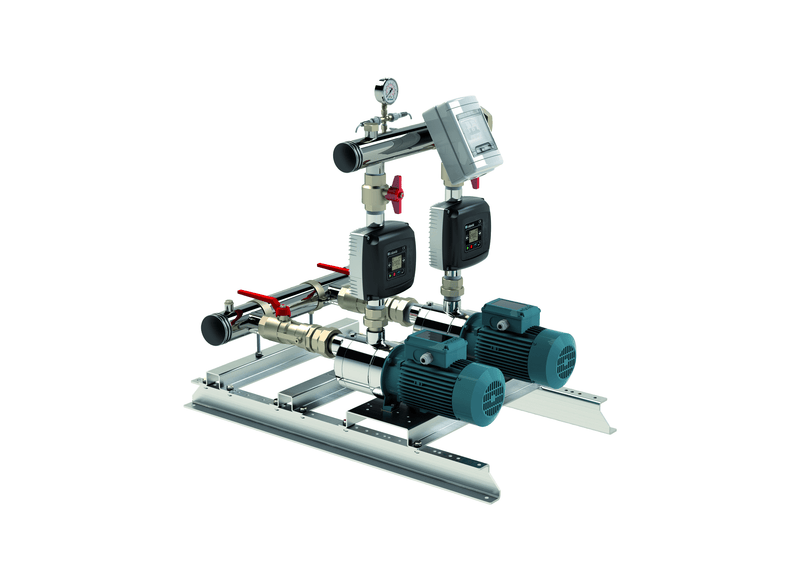

Calpeda BSM2V 2MXHL 805-EMT 2 x 1.8kW Variable Speed Twin Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Commercial water networks and multi-storey plant rooms require dependable pressure management, making the Calpeda BSM2V 2MXHL 805-EMT an ideal twin-pump solution. Equipped with two horizontal multistage MXHL 805 pumps on a unified base, this package achieves flow rates up to 433.4 L/Min. Where vertical lift is required, the multistage hydraulics can develop up to 54 m of head. It responds effortlessly to fluctuating tap and valve loads across busy hospitality, institutional, and apartment circuits without pressure drop.
Twin pump-mounted I-MAT variable-speed inverters govern the system by continuously reading manifold pressure and modulating motor frequency to hold the target setpoint. As hydraulic demand rises beyond a single unit, the secondary drive cascades into operation smoothly and alternates lead duty between cycles to balance mechanical wear. Built-in diagnostic safeguards protect the installation against dry running, overcurrent events, thermal stress, and supply anomalies while curbing electricity consumption.
Crafted for lasting corrosion resistance, the fluid assembly incorporates AISI 304 stainless steel suction and delivery manifolds engineered for clean hydraulic transfer. A 65 mm inlet header feeds the twin pump inlets, while the 50 mm discharge collector consolidates outgoing flow. Individual isolation ball valves and non-return check valves allow single-pump servicing without shutting down the building, complemented by a pressure gauge and a header connection port for an external expansion tank.
Energized from a convenient single-phase 230 V electrical feed, the onboard frequency converters output three-phase 230/400 V power directly to the motor windings. Each 2-pole induction drive runs at a nominal speed of 2900 rpm on 50 Hz and delivers 1.8 kW (P2) shaft output while drawing 4.8 A at full load. Manufactured to IEC 60034 standards with Class F thermal insulation, the motors withstand continuous industrial duty cycles.
Key Features
- Twin MXHL 805 Pump Architecture: Dual 5-stage stainless steel horizontal multistage pumps provide duty-assist boosting and built-in redundancy.
- Pump-Mounted I-MAT Inverters: Variable-frequency drives adjust motor speed in real time to maintain steady line pressure and reduce energy waste.
- AISI 304 Stainless Steel Manifolds: Hygienic suction and discharge headers resist corrosion and preserve water quality across demanding plumbing networks.
- Wide Thermal Operating Window: Engineered to pump clean liquids across a temperature spectrum from -15 °C to +110 °C for cold or hot water loops.
- Weatherproof Motor Protection: Built to IP54 ingress standards with Class F insulation to shield internal electrical components from dust and splashing water.
- Service-Friendly Isolation Valves: Integrated ball valves and non-return check valves on each branch allow maintenance without interrupting site supply.
- Automatic Duty Alternation: Smart cascade control swaps lead and lag pump assignments to equalise operating hours across both mechanical seals.
- External Vessel Readiness: Includes a dedicated port on the delivery header for connecting an accumulator tank, backed by a 24 Months factory warranty.
What's Included
- 2 x Calpeda MXHL 805 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 433 L/Min |
| Max Head | 54 m |
| Power | 2 x 1.8 kW / 415v |
| Rated Current | 2 x 4.8 Amps |
| Suitable For | Commercial & Industrial Water Supply |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What wetted stainless steel metallurgy and shared manifold headers link both pumps?
Dual AISI 304 chromium-nickel stainless steel pump ends equip the Calpeda Variable Speed Booster Set BSM2V 2MXHL 805-EMT, coupled via a Zinc-plated Steel S235JR Baseplate with G 2 1/2" BSP suction and G 2" BSP delivery manifolds.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Protection for the BSM2V 2MXHL 805-EMT is secured by Calpeda manufacturer warranty coverage guarding the pump wet end, electric motor assembly, and variable speed drive against defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Configured for synchronized parallel staging, the BSM2V-2MXHL-805-EMT achieves a collective maximum rated flow capacity of 433.4 L/min (26 m³/h) during peak draw.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Electrical connection for the BSM2V 2 MXHL 805-EMT requires single phase 230V power at 50 Hz, driving twin motors totaling 3.6 kW via dual communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Total static head on the 2MXHL 805-EMT (BSM2V 2MXHL 805-EMT) reaches up to 54 metres, while pump casings withstand up to 10 bar across liquid temperatures up to +40°C.
