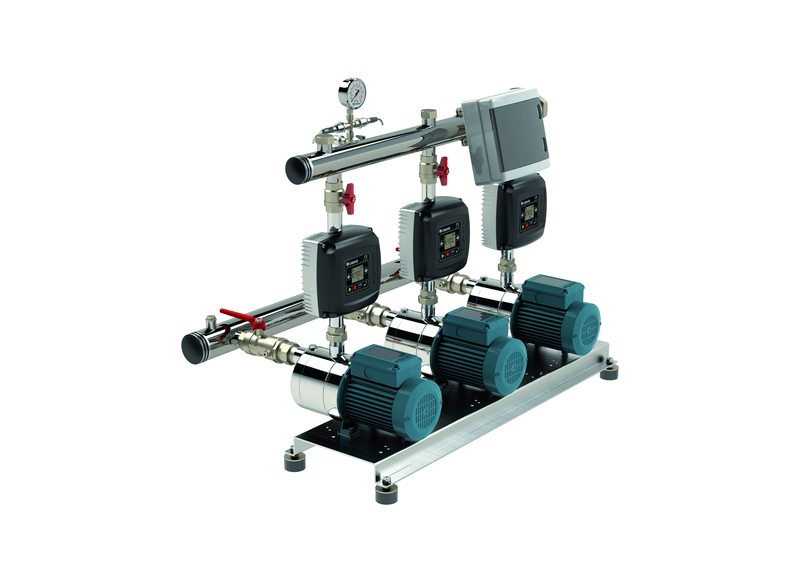

Calpeda BSM3V 3MXH 1603-EMT 3 x 1.8kW Variable Speed Triple Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Where high flow capacity must be paired with stronger vertical lift, the BSM3V 3MXH 1603-EMT triplex booster set provides a balanced commercial solution. Incorporating three Calpeda MXH 1603 horizontal multistage pumps on a rigid base, the unit supplies up to 1250.1 L/Min. For vertical risers and pressurised distribution lines, the pump assembly can reach up to 34 m of head. It is ideally suited to large apartment blocks, hospitals, and industrial processing lines needing unyielding pressure stability.
Modulating system output is a trio of integrated I-MAT frequency converters mounted directly on the motor housings. These smart drives track downstream pressure continuously, ramping motor speed up or down and cascading additional pumps online only when flow demand spikes. Duty alternation equalises wear across all three units while integrated diagnostics guard against dry running, voltage drops, and thermal overloads.
Supporting elevated flow volumes without cavitation or excessive head loss, the plant features a 100 mm suction manifold and an 80 mm delivery header crafted from AISI 304 stainless steel. Each pump line includes full-bore isolation ball valves and non-return check valves, permitting straightforward servicing of any branch while the others remain active. A system pressure gauge and an external vessel connection port are mounted directly on the delivery header.
Running the package requires a single-phase 230 V electrical feed, which the I-MAT drives invert to energise three-phase 230/400 V motor windings. Each 2-pole induction motor delivers 1.8 kW (P2) at a nominal speed of 2900 rpm (50 Hz) and draws 4.8 A under full load. Built with Class F insulation in full compliance with IEC 60034 standards, the motors handle intensive commercial schedules effortlessly.
Key Features
- Synchronised Three-Pump Inverter Control: Onboard I-MAT drives coordinate speed modulation and staging to hold downstream pressure rock-steady.
- Balanced Multistage Hydraulics: Incorporates a 3-stage stainless steel wet end to combine high volumetric flow with solid vertical boosting pressure.
- Hot and Cold Liquid Handling: Rated for continuous operation with fluid temperatures ranging from -15 °C to +110 °C.
- Protected Drive Enclosures: Sealed to IP54 standards with Class F winding insulation to resist moisture and dust in busy plant rooms.
- High-Flow AISI 304 Manifolds: Corrosion-resistant stainless steel headers reduce turbulence and preserve hygienic water quality.
- Branch Isolation Hardware: Equipped with individual ball valves and non-return valves to prevent backflow and simplify maintenance.
- Energy-Saving Speed Trimming: Variable-frequency operation matches power draw to real-time water usage, cutting electricity costs significantly.
- Header Tank Connection: Includes a dedicated port on the discharge manifold for attaching an external diaphragm accumulator.
- Comprehensive Warranty: Covered by a 24 Months warranty from Calpeda for dependable long-term support.
What's Included
- 3 x Calpeda MXH 1603 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 1250 L/Min |
| Max Head | 34 m |
| Power | 3 x 1.8 kW / 415v |
| Rated Current | 3 x 4.8 Amps |
| Suitable For | Industrial & Commercial Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak vertical elevation boost and collective casing pressure are achievable?
Triple pump elevation capacity on the Calpeda Variable Speed Booster Set BSM3V 3MXH 1603-EMT achieves up to 34 metres of static head, certified for 8 bar casing pressure and temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Shared pipework integration on the BSM3V 3MXH 1603-EMT includes isolating valves, check valves, and DN 100 Flanged suction with DN 80 Flanged delivery manifolds across the AISI 304 chromium-nickel stainless steel pumps upon a Zinc-plated Steel S235JR Baseplate.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
Equipment coverage on the BSM3V-3MXH-1603-EMT is backed by Calpeda manufacturer warranty coverage protecting the multistage pump wet end, electric motor, and electronic frequency converter against manufacturing defects from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Three multistage wet ends on the BSM3V 3 MXH 1603-EMT combine under synchronized frequency control to deliver up to 1250.1 L/min (75 m³/h) across common manifolds.
Which electrical power mains and variable speed frequency converter regulate this booster set?
Three induction motors totaling 5.4 kW run the 3MXH 1603-EMT (BSM3V 3MXH 1603-EMT) on single phase 230V power at 50 Hz, coordinated by three communicating EASYMAT variable speed frequency converters (230V).
