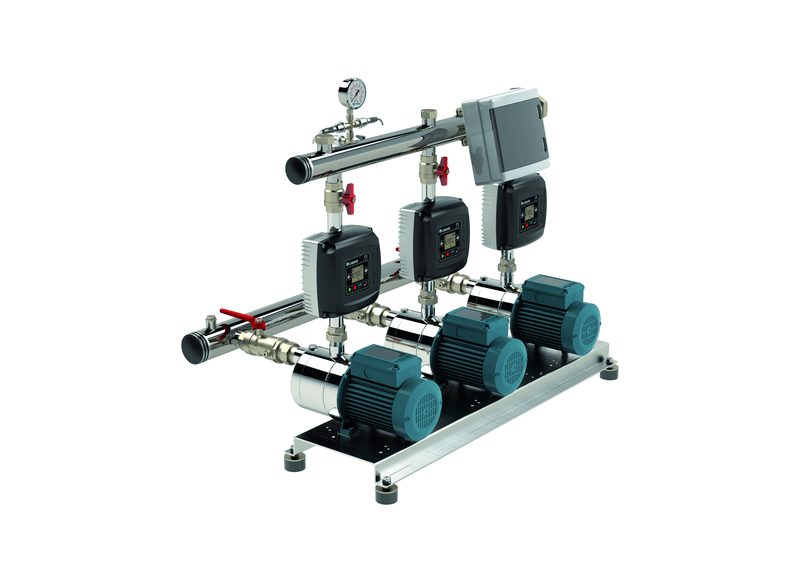

Calpeda BSM3V 3MXHL 209-EMT 3 x 1.5kW Variable Speed Triple Pump Multistage Booster Set with EasyMat Converter
Australia-Wide
(08) 9240 2992
Official Calpeda
Peace of Mind
Product Overview
Where extreme vertical lift and unwavering pressure stability are mandatory, the BSM3V 3MXHL 209-EMT triple-pump booster set stands out as a premier hydraulic solution. Engineered around three horizontal multistage Calpeda MXHL 209 pumps, this skid-mounted package can produce up to 97.1 m of head for high-rise commercial or industrial networks. When multiple outlets draw water, the system delivers flows up to 240 L/Min. Its corrosion-resistant AISI 304 stainless steel pump bodies and impellers ensure long service life in both chilled and hot water systems.
Precise speed modulation is managed by integrated I-MAT frequency converters attached directly to each of the three drive motors. By continuously monitoring discharge pressure, these variable-speed inverters adjust pump rpm in real time so building occupants experience zero pressure droop when multiple fixtures open simultaneously. The control logic also alternates lead and lag pump roles to equalize mechanical wear, logs energy consumption data, and shuts down safely if dry running or electrical faults are detected.
All three pumps connect to polished AISI 304 stainless steel headers featuring a 65 mm suction inlet and a 50 mm discharge outlet. Full-bore isolation ball valves and non-return check valves are installed on every branch line, ensuring zero reverse rotation in standby pumps and permitting isolated maintenance without shutting off water to the building. The delivery manifold also houses an analogue pressure gauge alongside a threaded connection port for an external pressure vessel.
Even with its high-pressure output, the package runs off a single-phase 230 V supply, with the I-MAT inverters feeding three-phase 230/400 V power to the motor windings. Each 2-pole induction motor delivers 1.5 kW (P2) of mechanical power at approximately 2900 rpm (50 Hz) while drawing 3.6 A per pump. Built to strict IEC 60034 standards with Class F winding insulation, the drive assembly is engineered for durable, high-efficiency operation.
Key Features
- Ultra-High-Head 9-Stage Impellers: The 9-stage AISI 304 stainless steel hydraulic assembly delivers exceptional pressure boosting for tall structures.
- Independent I-MAT Inverters: Motor-mounted frequency converters provide decentralized variable-speed control and eliminate bulky external panels.
- Balanced Triplex Operation: Automatic cascade staging and duty alternation distribute runtime evenly across all three pumps.
- AISI 304 Manifold Construction: Stainless steel suction and delivery pipework prevents internal corrosion and supports hygienic water distribution.
- Branch Isolation & Check Valves: Individual shut-off ball valves and non-return valves simplify servicing and protect against hydraulic backflow.
- Weather & Dust Resistance: Motors feature IP54 enclosure protection combined with Class F insulation for reliable mechanical room duty.
- Hot & Chilled Liquid Handling: Seals and wet-end materials tolerate fluid temperatures spanning from -15 °C to +110 °C.
- Expansion Vessel Port: Delivery header includes a pre-tapped connection point for adding an external diaphragm tank.
- Protected Investment: Supplied as a factory-tested package backed by a 24 Months manufacturer warranty.
What's Included
- 3 x Calpeda MXHL 209 horizontal multistage pumps
- Stainless steel AISI 304 suction manifold
- Stainless steel AISI 304 delivery manifold
- Isolation ball valves
- Non-return valves
- Integrated I-MAT frequency converters mounted on each pump
- System pressure gauge
- Factory assembled and tested boosting plant
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 97.1 m |
| Power | 3 x 1.5 kW / 415v |
| Rated Current | 3 x 3.6 Amps |
| Suitable For | Industrial & Commercial Pressure Boosting |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | -15 °C to +110 °C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which mains electrical supply voltage and triple frequency inverter modules govern these motors?
Mains electrical input for the Calpeda Variable Speed Booster Set BSM3V 3MXHL 209-EMT utilizes single phase 230V current to power three electric motors totaling 4.5 kW through three communicating EASYMAT variable speed frequency converters (230V).
Under what maximum static head elevation and line pressure limits does this package operate?
Total static head on the BSM3V 3MXHL 209-EMT reaches up to 97.1 metres, while pump casings withstand up to 10 bar across liquid temperatures up to +40°C.
What corrosion proof wetted metallurgy and manifold connection thread sizes are incorporated?
Common manifold plumbing on the BSM3V-3MXHL-209-EMT provides G 2 1/2" BSP suction and G 2" BSP delivery connections, joining the AISI 304 chromium-nickel stainless steel pumps on a Zinc-plated Steel S235JR Baseplate.
What manufacturer warranty protection coverage supports this variable speed pumping assembly?
All core pumping elements of the BSM3V 3 MXHL 209-EMT, including the multistage pump wet end, electric motor, and electronic frequency converter, are covered by Calpeda manufacturer warranty from date of invoice.
What peak water discharge rate and maximum flow capacity does this package supply?
Collective hydraulic delivery on the 3MXHL 209-EMT (BSM3V 3MXHL 209-EMT) reaches a maximum rated output of 240 L/min (14.4 m³/h) under full three-pump assist.
