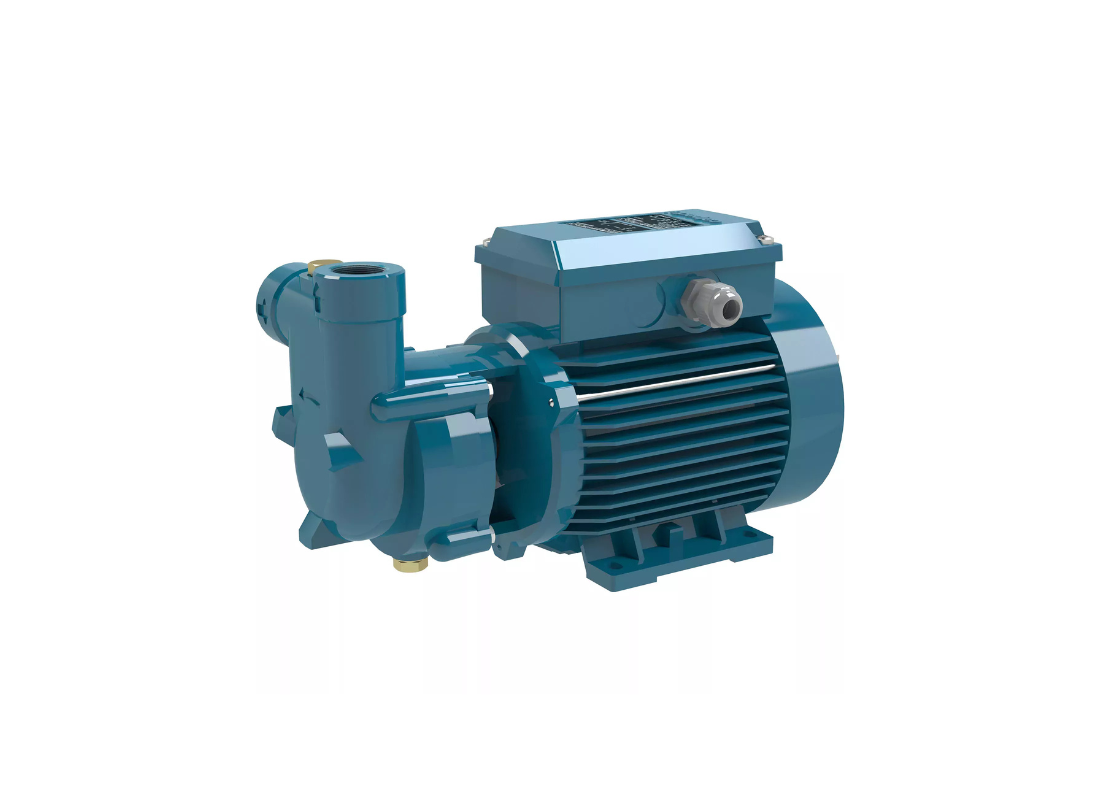

Engineered for clean water systems requiring stronger pressure performance, the Calpeda CA 91 delivers dependable hydraulic operation for pressure boosting, domestic water supply, irrigation support, and tank filling applications. Its liquid ring self-priming configuration allows stable operation even when intermittent air is present within the suction pipe.
With flow capacity reaching 2.4 m³/h and head performance extending up to 53 m, the pump delivers controlled clean water movement with elevated pressure characteristics for demanding residential and utility installations. The hydraulic arrangement supports smooth continuous-duty circulation performance across varying operating conditions.
The hydraulic assembly is powered through a three-phase 415V induction motor delivering 0.75 kW rated output power with operating current of 2.8 A. Continuous rotation near 2900 rpm is achieved through a two-pole motor arrangement supporting dependable pressure generation and stable fluid movement.
A star-shaped brass impeller operates within the cast iron hydraulic casing to ensure dependable transfer of clean liquids without suspended solids. Mechanical sealing integrates carbon, ceramic, and NBR elastomer components, while the motor assembly features class F insulation and IP54 protection for safe continuous-duty service. Permitted liquid temperature extends from -10°C to +90°C.
FEATURES- Liquid ring self-priming hydraulic arrangement improves suction capability
- Star-shaped brass impeller supports elevated pressure delivery
- Compact close-coupled construction reduces installation space requirements
- Cast iron hydraulic construction improves structural rigidity
- Designed for clean liquids without abrasive or suspended particles
- Carbon/Ceramic/NBR mechanical seal arrangement improves sealing stability
- Three-phase motor with IP54 protection supports reliable operation
- Class F insulation improves thermal resistance during continuous-duty use
