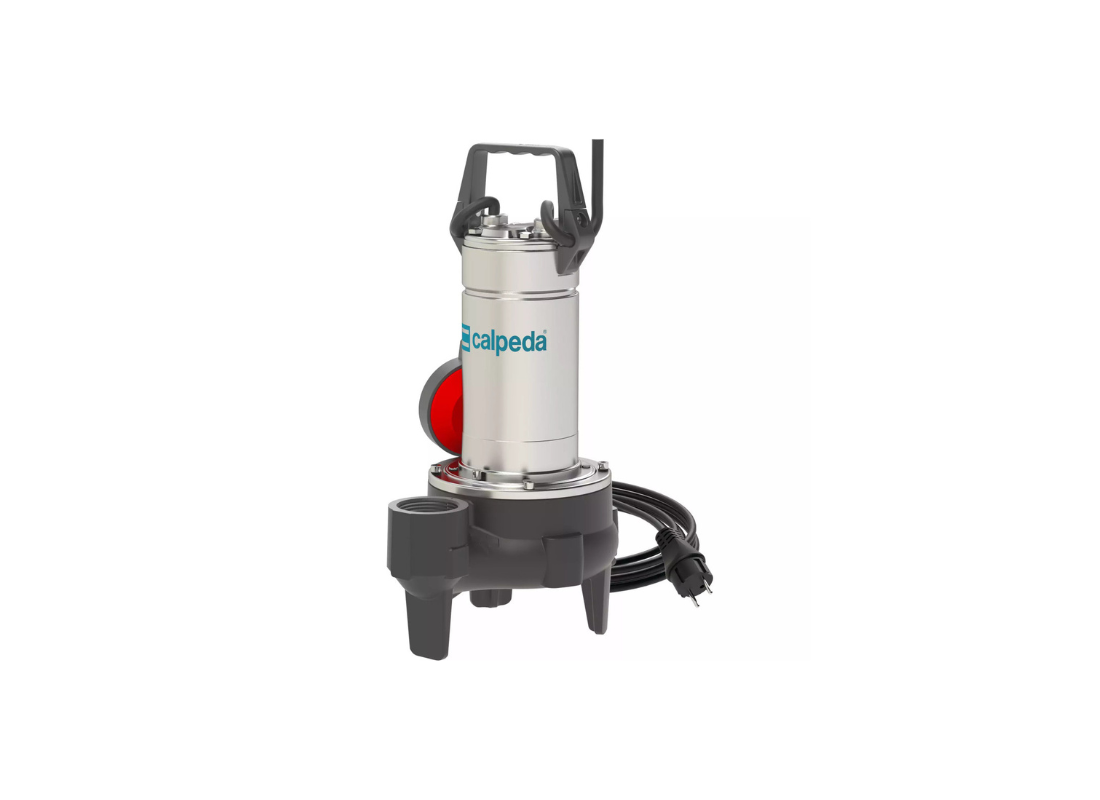

Hydraulic velocity uniformity is established through a vertical single-impeller submersible pump configuration. The Calpeda GQSM 40-9 SG GQS series pump is designed for civil and industrial wastewater that is not harmful to the pump materials, for dirty water even with solids with a diameter up to 40 mm. emptying of flooded rooms or tanks. water extraction from ponds, flowing streams, or pits for rainwater collection. It is suitable for vertical installation with vertical threaded delivery port G 40 mm.
Constructed from cast iron GJL 200 EN 1561 and AISI 304 chrome-nickel stainless steel, the housing surrounds internal components. The vortex impeller, manufactured from AISI 304 stainless steel, processes solids up to 40 mm in diameter. The unit weighs 10.9 kg and operates in liquids up to 35°C.
The 0.45 kW motor operates on a 240v supply with a rated current of 4.5 Amps. The pump achieves a maximum head of 8.8 meters and a maximum flow of 350 L/Min through a 40 mm discharge outlet.
Thermal protection features Class F insulation with an IPX8 enclosure rating. The pump allows installation depths up to 5 meters. Double mechanical shaft seals with an interposed oil chamber are present for dry-running conditions. The single-phase motor incorporates an integrated capacitor and includes a float switch for automatic operation.
Features
- Electrical connection specifications include a standard 10 meter H07RN-F power supply cable.
- The integrated carrying handle is manufactured from polypropylene with a steel support frame.
- External components conform to EN 60034-1, EN 60335-1, and EN 60335-2-41 standards.
- Seal lubrication utilizes non-toxic food-safe oil for pharmaceutical or food machinery systems.
- The dry motor winding features double moisture-resistant impregnation for humidity containment.
- Operating parameters support a wide fluid pH value range between 6 and 11.
