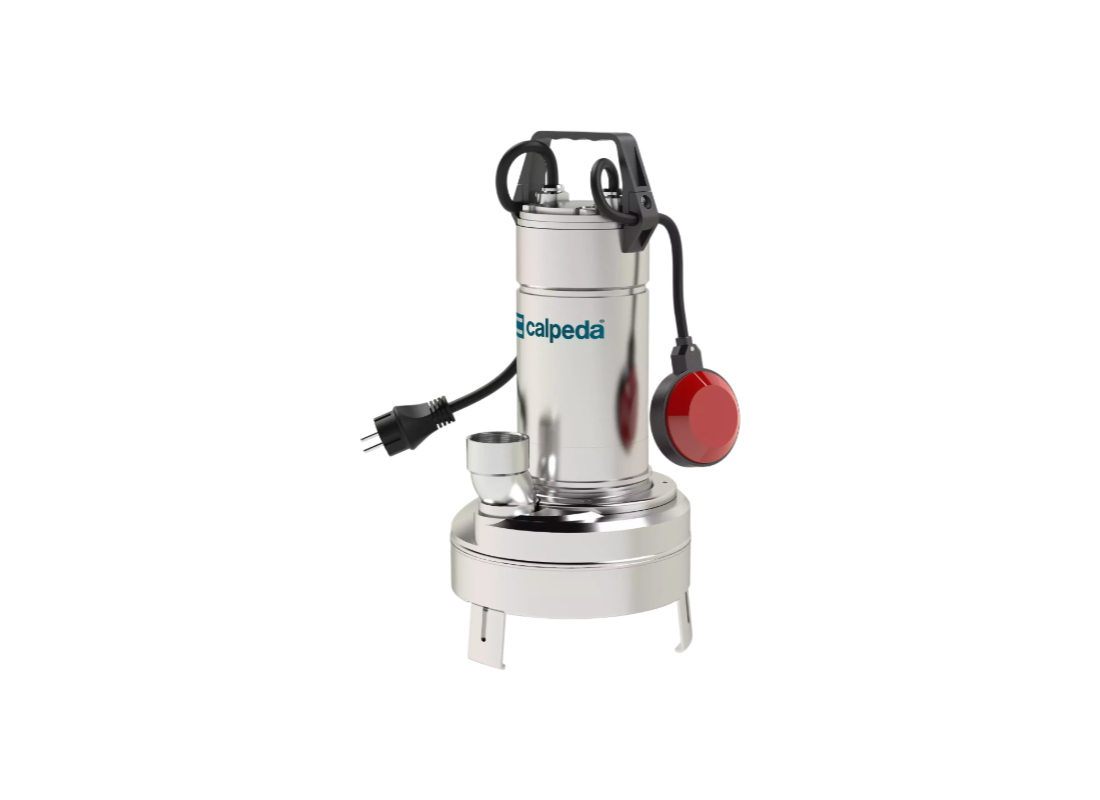

Handle water containing suspended solids effectively with the Calpeda GXC 40-10, a three-phase submersible pump designed for sewage and wastewater drainage. This unit is suitable for liquids containing grain sizes up to 35 mm and is rated for continuous duty in civil and industrial environments. It provides robust liquid handling at temperatures reaching up to 35°C in standing installation positions.
Operating on a 415v three-phase supply, the 0.55 kW motor delivers consistent hydraulic stability with a 350 L/min flow rate and 9 m total head. Drawing a rated current of 1.6 Amps, internal cooling is achieved by fluid circulating between the motor jacket and outer shell. This design ensures the unit can operate safely during extended run cycles even when only partially submerged in collection pits or tanks.
Hydraulic performance is produced by a two-passage impeller design that facilitates the handling of clean and dirty water while maintaining efficiency. The vertical delivery port configuration assists in streamlined installation, and the smooth rolled-stainless steel surfaces ensure reliable flow behavior and easy cleaning. Manual operation requires a minimum submersion depth of 250 mm for safe performance.
Construction features chrome-nickel stainless steel AISI 304 for all primary components, including the pump body, impeller, and motor jacket. Sealing is managed by a double shaft seal with an interposed oil chamber housing oil for food and pharmaceutical machinery. The 2-pole induction motor features a triple impregnation humidity-proof dry winding and is IP X8 rated for immersion up to 5 meters.
FEATURES
- AISI 304 stainless steel construction for the pump casing, impeller, and filter ensures structural longevity.
- Two-passage impeller design enables efficient handling of dirty water containing solids up to 35 mm.
- Double mechanical shaft seal with an oil-filled chamber provides a robust barrier against water ingress into the motor.
- Seal lubrication is ensured by a dedicated oil chamber filled with oil suitable for food and pharmaceutical use.
- Internal motor cooling is achieved by the pumped liquid flowing between the motor jacket and outer shell.
- Three-phase 415v induction motor is designed for high-efficiency sewage and wastewater transfer.
- Motor winding reliability is supported by a triple impregnation humidity-proof dry construction per EN 60335-2-41.
- Certified IP X8 protection rating for continuous immersion at depths of up to 5 meters with included cable.
