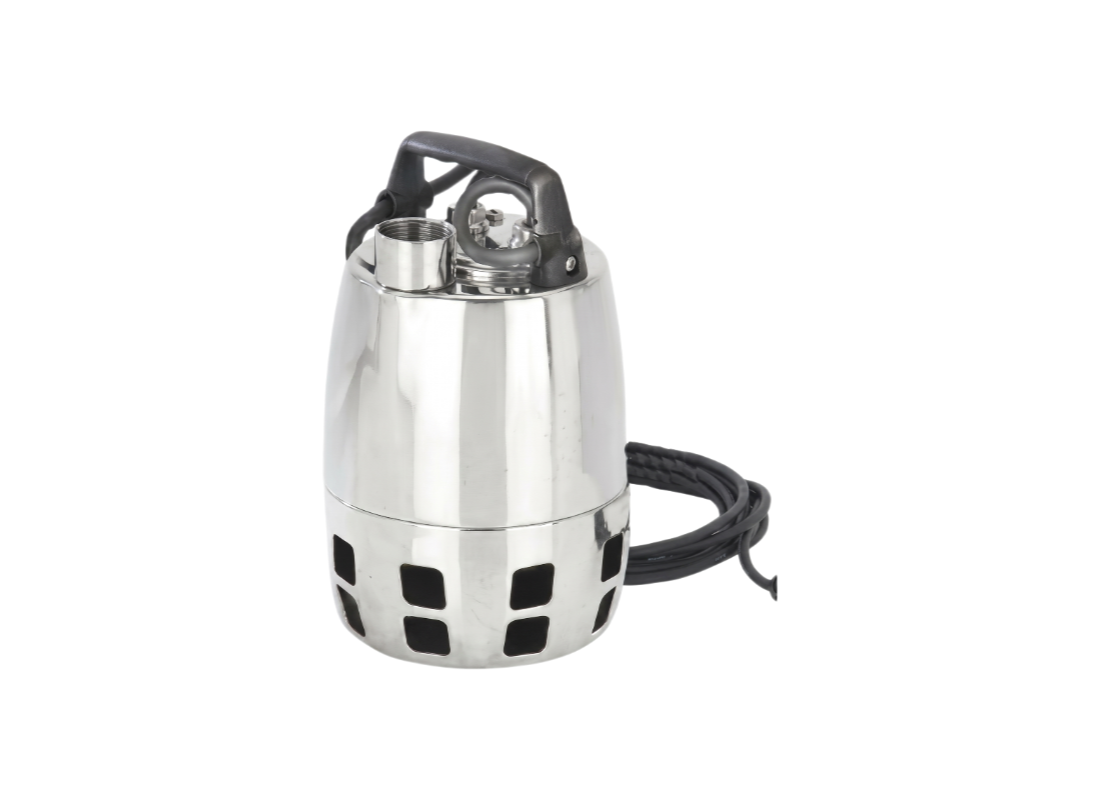

Achieving manual clean water drainage in domestic and civil environments is the primary focus of the Calpeda GXV 25-6 SG. This manual unit (SG) is designed for continuous run applications where an external control or manual oversight is preferred. It handles clean or slightly dirty water containing suspended solids up to 25 mm at liquid temperatures reaching up to 50°C.
Operating on a single-phase 240v supply, this 0.25 kW pump delivers consistent hydraulic performance with a 170 L/min flow rate and 5.7 m total head. Drawing a rated current of 2.5 Amps, the pumped liquid provides continuous motor cooling during operation. This design allows for safe service during extended drainage tasks even if the motor is only partially submerged.
The internal hydraulic configuration utilizes a single vortex impeller design housed within a vertical delivery port casing. This setup facilitates efficient flow behavior and allows for the passage of solids without compromising internal components. The integrated suction filter prevents the entrance of oversized debris, supporting manual drainage down to a water level of 30 mm.
Construction consists of a chrome-nickel stainless steel AISI 304 pump casing, filter, and motor jacket for enhanced corrosion resistance. Sealing is provided by a double mechanical shaft seal with an oil chamber containing oil for food machinery and pharmaceutical use. The motor features an incorporated capacitor, thermal protector, and a triple impregnation humidity-proof dry winding.
FEATURES
- Constructed using chrome-nickel stainless steel AISI 304 for all parts in contact with the clean liquid.
- Manual version (SG) designed without a float switch for continuous run or externally controlled service.
- Double mechanical shaft sealing with an integrated oil chamber enhances motor protection and lubrication.
- Oil chamber contains oil for food machinery and pharmaceutic use as per datasheet specifications.
- The pumped liquid dissipates motor heat during operation, facilitating safe partial immersion.
- Vortex impeller design facilitates the handling of solids up to 25 mm without clogging the pump.
- Motor reliability is supported by a triple impregnation humidity-proof dry construction per EN 60335-2-41.
- IP X8 protection rating supports continuous immersion at depths of up to 5 meters with included 10m cable.
