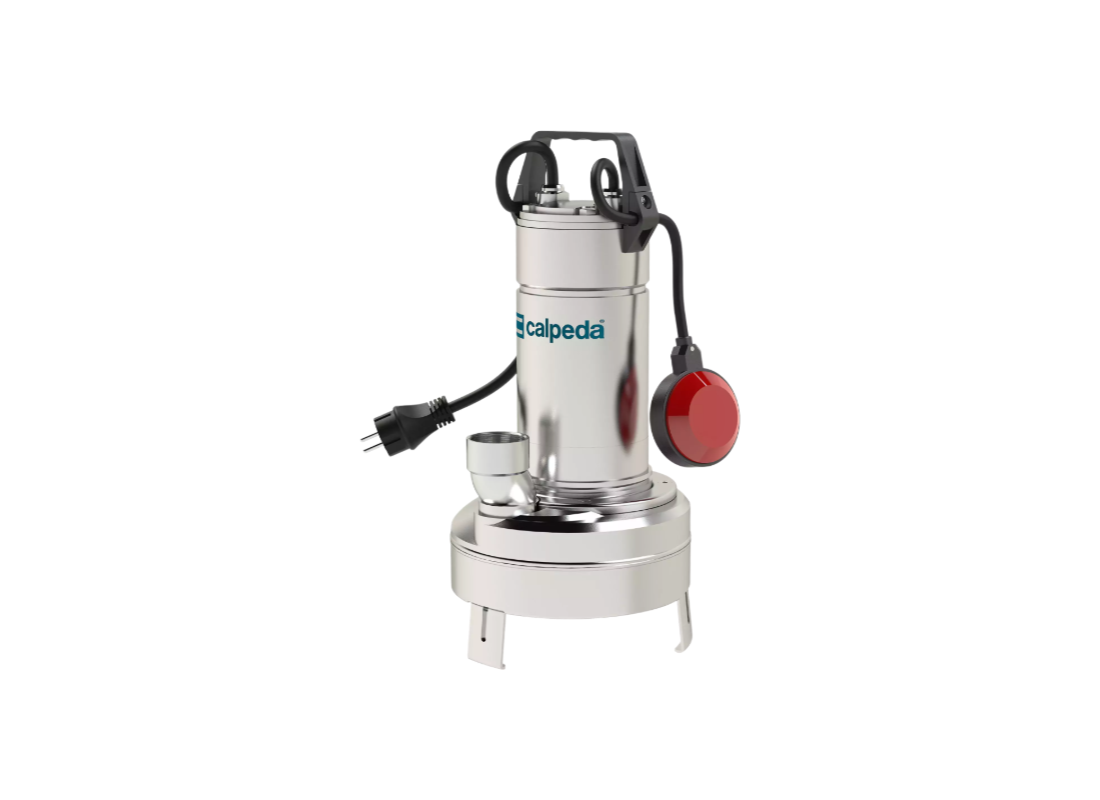

Facilitate clean water transfer using the Calpeda GXVM 40-7. This automatic submersible pump is manufactured from chrome-nickel stainless steel and is suitable for handling liquids containing suspended solids up to 35 mm. It is an automatic unit featuring a vortex impeller and is ideal for domestic and civil drainage applications where reliable water transfer is required at temperatures up to 35°C.
Operating on a single-phase 240v supply, this 0.55 kW pump delivers consistent hydraulic stability with a maximum head of 6.2 m and a flow rate of 250 L/min. Drawing 4.6 Amps, internal cooling is achieved by fluid circulating between the motor jacket and outer shell. This design allows for safe service during partial submersion, while the integrated float switch manages automated operation cycles.
Hydraulic performance is produced by a single vortex impeller design housed within a vertical delivery port casing. This configuration minimizes the risk of clogging when managing slightly dirty liquids, while the smooth rolled-stainless steel surfaces assist in easy maintenance.
Construction consists of a chrome-nickel stainless steel AISI 304 pump body and motor jacket for enhanced corrosion resistance. Sealing is managed by a double mechanical shaft seal with an oil chamber containing oil for food machinery and pharmaceutical use. The motor features a triple impregnation humidity-proof dry winding, built-in thermal protector, and an incorporated capacitor for safe submerged service.
FEATURES
- Manufactured entirely in chrome-nickel stainless steel AISI 304 for durability in transfer and drainage systems.
- Integrated float switch enables automated drainage control for collection pits and flooded rooms.
- Double mechanical shaft sealing with an integrated oil chamber enhances motor protection and lubrication.
- Mechanical shaft seal lubrication is ensured by oil for food machinery and pharmaceutic use in the oil chamber.
- Internal motor cooling achieved by the pumped fluid passing between the motor jacket and the outer shell.
- Vortex impeller design facilitates handling of water containing suspended solids up to 35 mm.
- Motor winding reliability is supported by a triple impregnation humidity-proof dry construction per EN 60335-2-41.
- Safe continuous duty immersion up to 5 meters is supported by an IP X8 protection rating and 10m cable.
