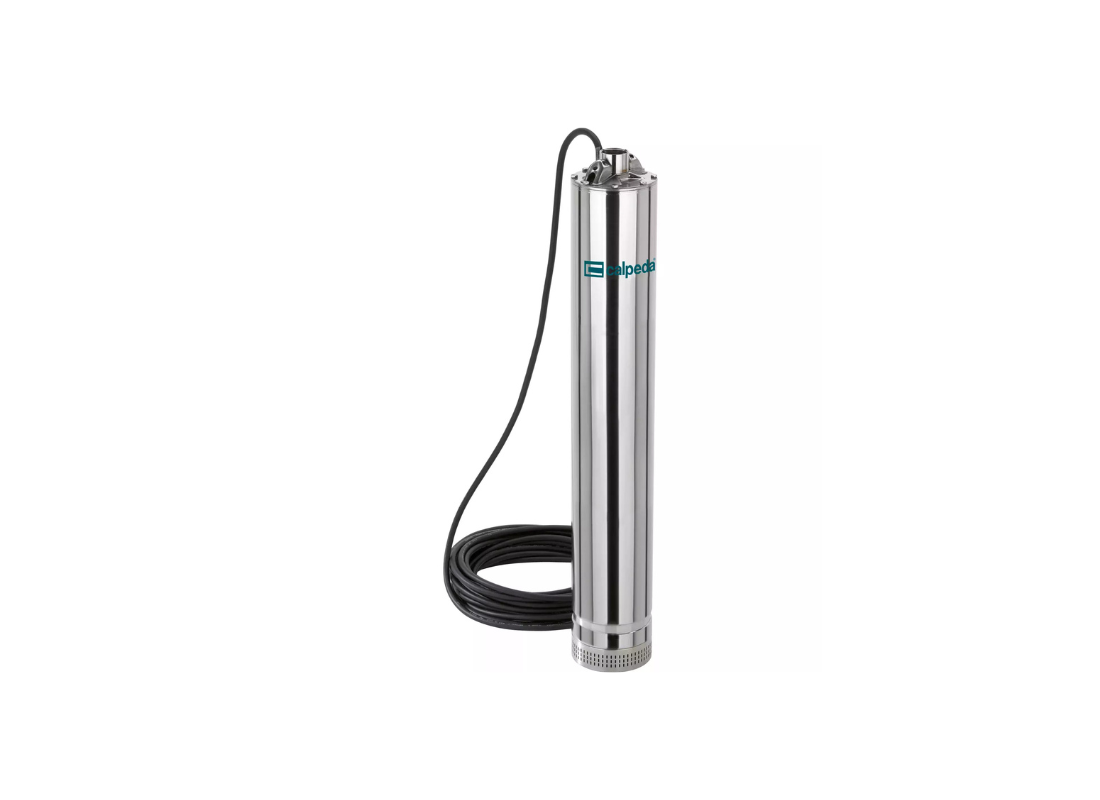

Constructed with parts in contact with fluid manufactured from chrome-nickel stainless steel, the Calpeda MXS 304 submersible pump features a corrosion-resistant design. This pump is designed for civil water supply networks, agricultural irrigation, and rainwater storage systems. The unit is suitable for vertical suspended or standing installations inside wells of 140 mm minimum diameter.
Constructed from chrome-nickel AISI 304 stainless steel, the external jacket protects internal components. The close-coupled impeller configuration has an impeller diameter that is not specified in provided sources, and the suction strainer blocks entrance of solids bigger than 2 mm. Net product weight is not specified in provided sources, and the pump operates in liquids up to 35°C.
Operating on a 415v electrical supply, the 0.55 kW motor features a rated nominal current of 1.6 Amps. The pump achieves a maximum total head of 41.5 m and a maximum flow rate capacity of 75 L/Min through a 32 mm discharge outlet.
Thermal insulation is provided by Class F windings with an IP X8 liquid protection rating for continuous duty. The pump allows operational installation depths up to 20 meters below the surface. Double mechanical shaft seals with an intermediate oil chamber containing food-safe lubrication oil provide fluid containment.
Features
- The power cable H07RN8-F features a length of exactly 15 meters.
- The three-phase electrical motor configuration is supplied without an electrical plug.
- The lower mechanical seal components are constructed from silicon carbide, carbon, and NBR materials.
- The upper mechanical seal features carbon, steatite, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for food and pharmaceutical applications.
- The electrical unit is rated for continuous duty operation.
- The hydraulic engineering design incorporates exactly 4 stages.
