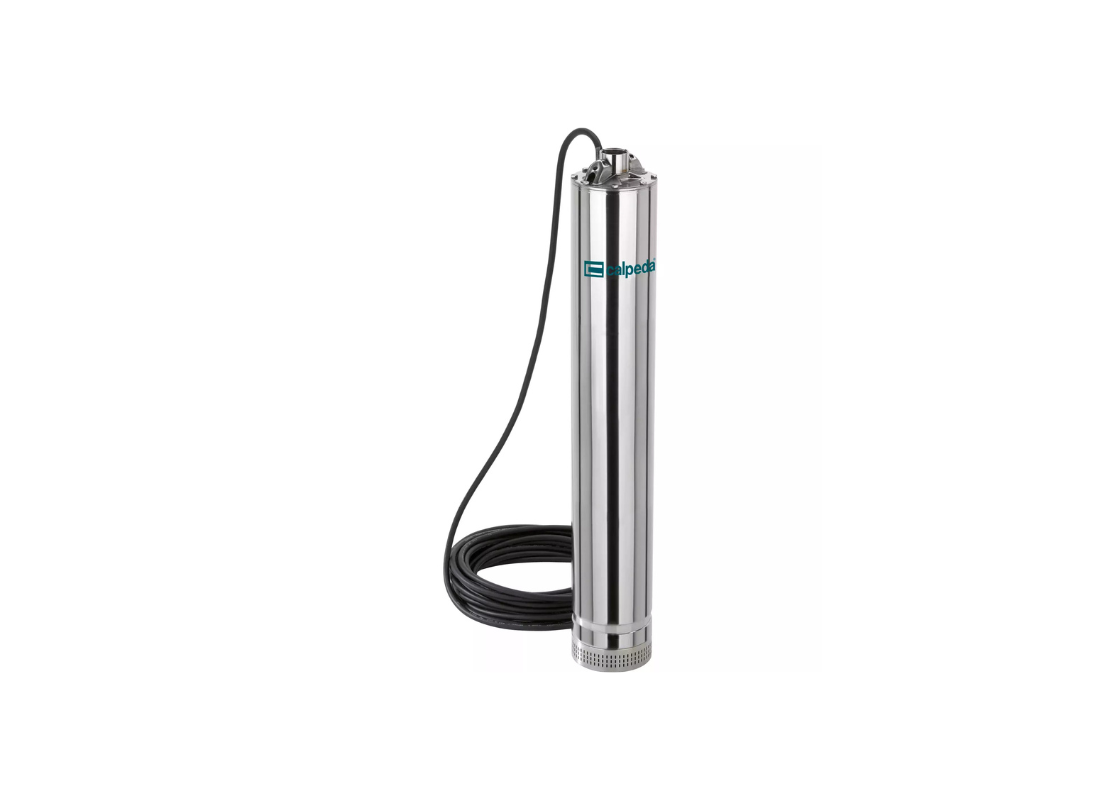

Featuring an internal hydraulic configuration located directly below the motor, the Calpeda MXS 305 close-coupled pump utilizes the pumped fluid for thermal cooling. This pump is designed for domestic water distribution, civil pressure boosting, garden watering, and rainwater recovery setups. The unit is suitable for vertical installations inside wells of 140 mm minimum diameter.
Constructed from AISI 304 stainless steel, the pump external jacket and delivery casing surround the hydraulic elements. The close-coupled stainless steel impeller has a diameter that is not available in provided sources, and the suction strainer blocks entrance of solids with a diameter bigger than 2 mm. The unit weighs 13.6 kg and operates in liquids up to 35°C.
Specified for a 415v electrical supply, the 0.75 kW motor has a rated current of 1.9 Amps. The pump achieves a maximum total head of 49.5 m and a maximum flow rate capacity of 75 L/Min through a 32 mm discharge outlet.
Motor insulation is provided by Class F winding insulation with an IP X8 water enclosure rating. The pump allows operational submergence depths up to 20 meters. Double shaft seals with an intermediate oil chamber containing pharmaceutical-grade non-toxic oil provide fluid containment.
Features
- The power cable H07RN8-F features a length of exactly 15 meters.
- The three-phase electrical motor configuration is supplied without an electrical plug.
- The lower mechanical seal components are constructed from silicon carbide, carbon, and NBR materials.
- The upper mechanical seal features carbon, steatite, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for food and pharmaceutical applications.
- The electrical unit is rated for continuous duty operation.
- The hydraulic engineering design incorporates exactly 5 stages.
