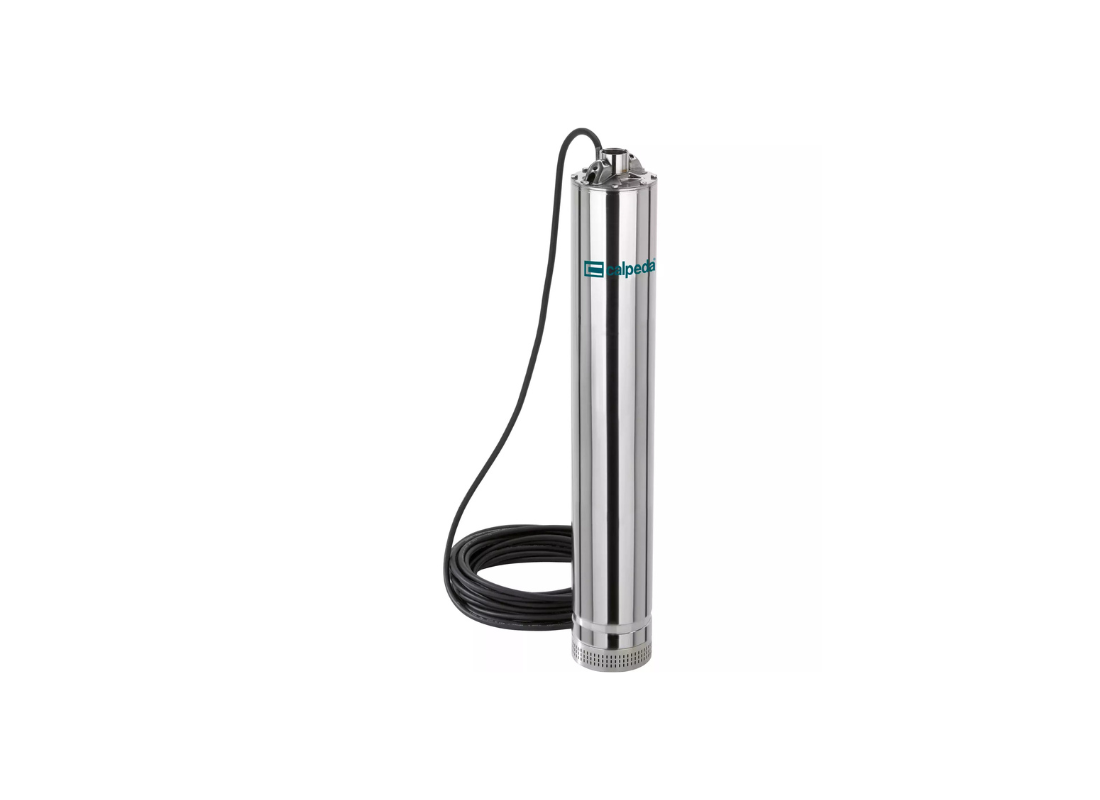

The close-coupled structural design of the Calpeda MXS 309 multi-stage submersible pump places the hydraulic system below the motor. This pump is designed for industrial and civil fluid distribution from reservoirs, irrigation, and rainwater collection systems. Users can position the unit in standing or suspended configurations within wells of 140 mm minimum diameter.
Chrome-nickel steel EN 10088 AISI 304 is selected for the casing, external jacket, and suction strainer. The close-coupled stainless steel impeller, measuring an unspecified diameter, is rated for 2 mm maximum solids passage. Net product weight is not specified in provided sources and fluid temperatures up to 35°C.
The motor, rated at 1.5 kW, operates with a nominal current of 3.8 Amps on a 415v supply. It achieves a maximum head of 91 m and a maximum flow rate capacity of 75 L/Min with a discharge size of 32 mm.
Winding insulation is specified as Class F with an IP X8 liquid protection rating. The pump has a maximum installation depth of 20 meters below the water level. Double shaft seals with an intermediate oil chamber containing pharmaceutical-grade non-toxic oil provide fluid containment.
Features
- The power cable H07RN8-F features a length of exactly 15 meters.
- The three-phase electrical motor configuration is supplied without an electrical plug.
- The lower mechanical seal components are constructed from silicon carbide, carbon, and NBR materials.
- The upper mechanical seal features carbon, steatite, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for food and pharmaceutical applications.
- The electrical unit is rated for continuous duty operation.
- The hydraulic engineering design incorporates exactly 9 stages.
