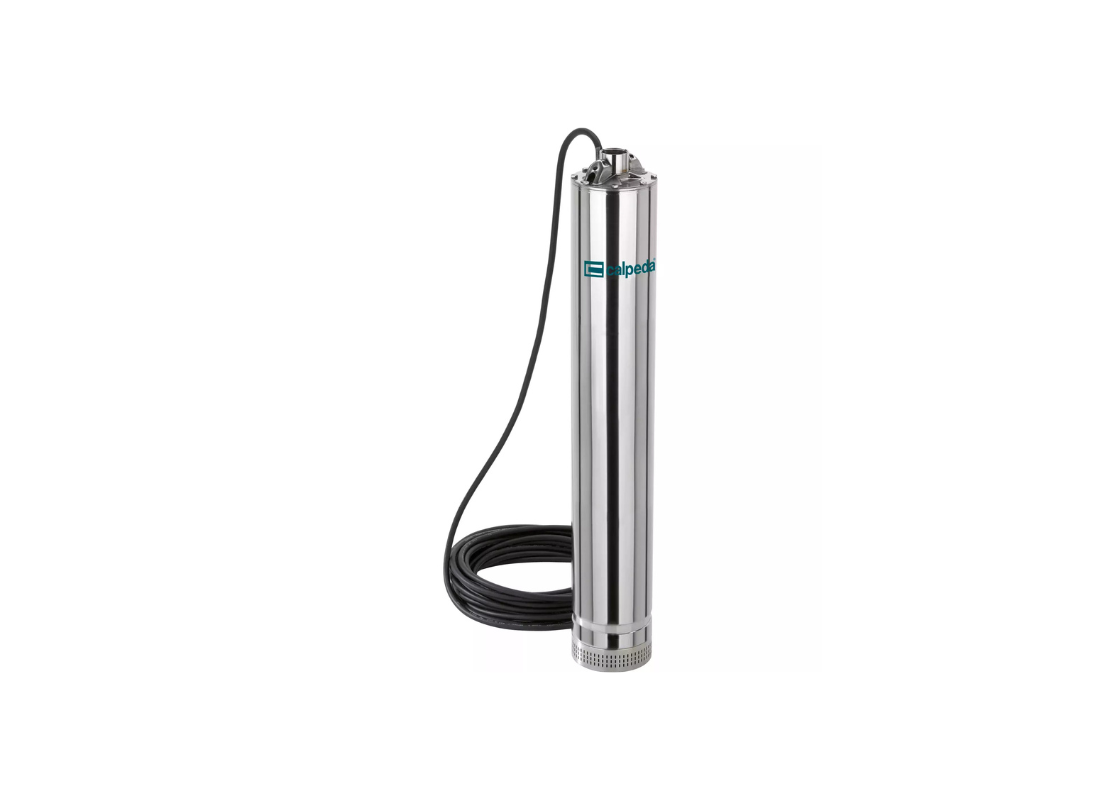

Enclosed in an AISI 304 stainless steel casing, the Calpeda MXS 504 close-coupled pump is suitable for continuous duty submersion. This pump is designed for civil water supply, domestic irrigation setups, and rainwater harvesting infrastructure. The setup allows standing or suspended installations inside wells of 140 mm minimum internal diameter. Operational operating environments are rated for water supply. Operational operating environments are rated for water supply.
All structural elements in contact with liquid are fabricated from AISI 304 chrome-nickel stainless steel. The close-coupled impeller, measuring an unspecified diameter, processes liquids up to 35°C with solids up to 2 mm. The unit weighs 14 kg is specified for this model.
The 415v motor has a rated output of 0.9 kW and a rated operating current of 2.2 Amps. The unit achieves a maximum flow rate of 133 L/Min and a maximum head of 39 m through a 32 mm outlet.
Class F winding insulation is paired with an IP X8 protection rating for permanent water submersion. The pump allows operational submergence down to 20 meters. Double mechanical shaft seals with an intermediate oil chamber containing food-safe lubrication oil provide fluid containment.
Features
- The power cable H07RN8-F features a length of exactly 15 meters.
- The three-phase electrical motor configuration is supplied without an electrical plug.
- The lower mechanical seal components are constructed from silicon carbide, carbon, and NBR materials.
- The upper mechanical seal features carbon, steatite, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for food and pharmaceutical applications.
- The electrical unit is rated for continuous duty operation.
- The hydraulic engineering design incorporates exactly 4 stages.
