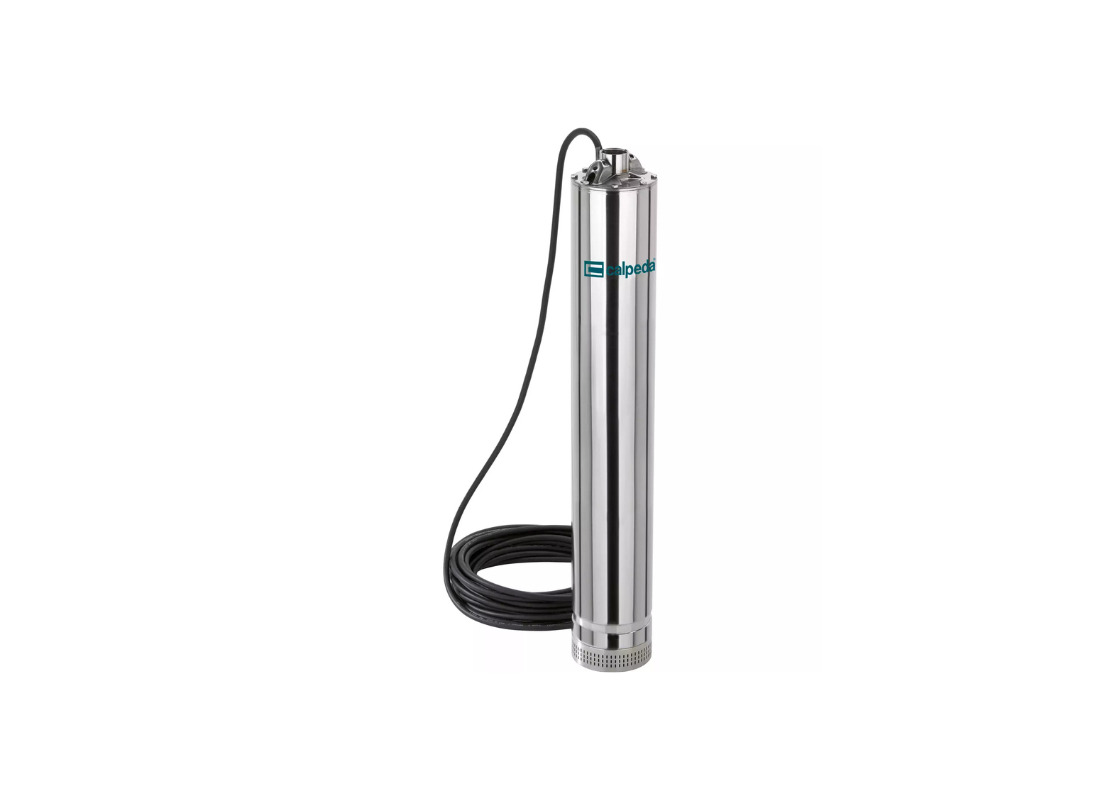

For applications requiring submerged water delivery, the Calpeda MXS 505 multi-stage pump incorporates AISI 304 fluid contact components. This pump is designed for garden watering, domestic water distribution, and civil rainwater recovery systems. It accommodates suspended or standing mounting positions in wells of 140 mm minimum internal diameter. Operational operating environments are rated for water supply.
Manufactured with a chrome-nickel stainless steel external jacket, the pump protects its multi-stage hydraulic system. The close-coupled impeller configuration has an unspecified diameter and a suction strainer that blocks solids over 2 mm. The unit weighs 14.6 kg and operates up to 35°C.
This system uses a 1.1 kW motor operating on 415v with a rated current of 2.6 Amps. It achieves a maximum head of 47.5 m and a maximum flow rate capacity of 133 L/Min through a 32 mm discharge outlet.
The motor incorporates Class F windings and carries an IP X8 liquid enclosure rating for continuous duty. The pump is specified for installation depths up to 20 meters. Double shaft seals with an intermediate oil chamber containing non-toxic oil provide fluid containment.
Features
- The power cable H07RN8-F features a length of exactly 15 meters.
- The three-phase electrical motor configuration is supplied without an electrical plug.
- The lower mechanical seal components are constructed from silicon carbide, carbon, and NBR materials.
- The upper mechanical seal features carbon, steatite, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for food and pharmaceutical applications.
- The electrical unit is rated for continuous duty operation.
- The hydraulic engineering design incorporates exactly 5 stages.
