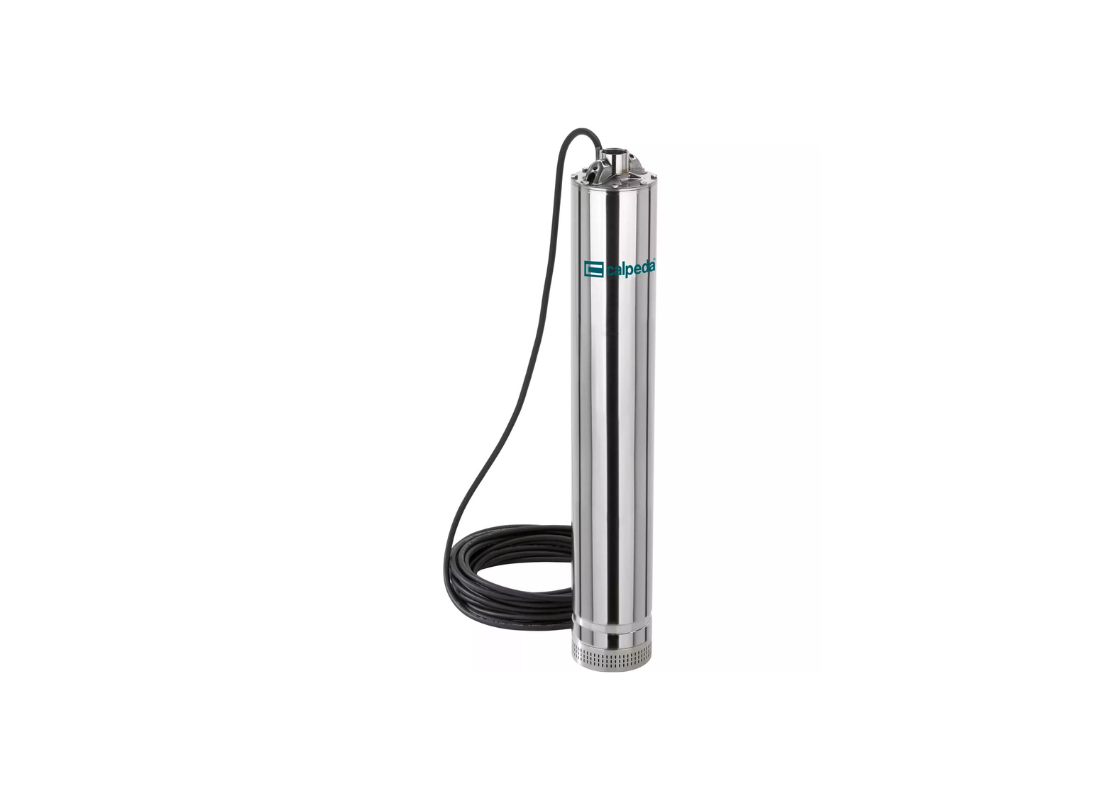

To address civil, domestic, and industrial fluid delivery challenges, the Calpeda MXS 507 close-coupled multi-stage submersible pump features a functional design. This pump is designed for domestic pressure systems, garden use, civil water supply, and rainwater collection setups. The unit is suitable for vertical installations inside wells with a minimum internal diameter of 140 mm.
Constructed from AISI 304 chrome-nickel stainless steel, the pump housing surrounds internal components. The close-coupled impeller configuration, with an impeller diameter that is not specified in provided sources, processes solids up to a maximum diameter of 2 mm. Net product weight is not specified in provided sources and operates in liquids with a maximum temperature up to 35°C.
The 1.5 kW motor operates on a 415v electrical supply with a rated current of 4 Amps. The pump achieves a maximum total head of 69.5 m and a maximum flow rate capacity of 133 L/Min through a 32 mm discharge outlet.
Electrical insulation is provided by Class F winding insulation with an IP X8 liquid enclosure rating for continuous immersion. The pump allows installation depths up to 20 meters below the fluid surface. Double shaft seals with an intermediate oil chamber containing non-toxic lubrication oil provide fluid containment.
Features
- The power cable H07RN8-F features a length of exactly 15 meters.
- The three-phase electrical motor configuration is supplied without an electrical plug.
- The lower mechanical seal components are constructed from silicon carbide, carbon, and NBR materials.
- The upper mechanical seal features carbon, steatite, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for food and pharmaceutical applications.
- The electrical unit is rated for continuous duty operation.
- The hydraulic engineering design incorporates exactly 7 stages.
