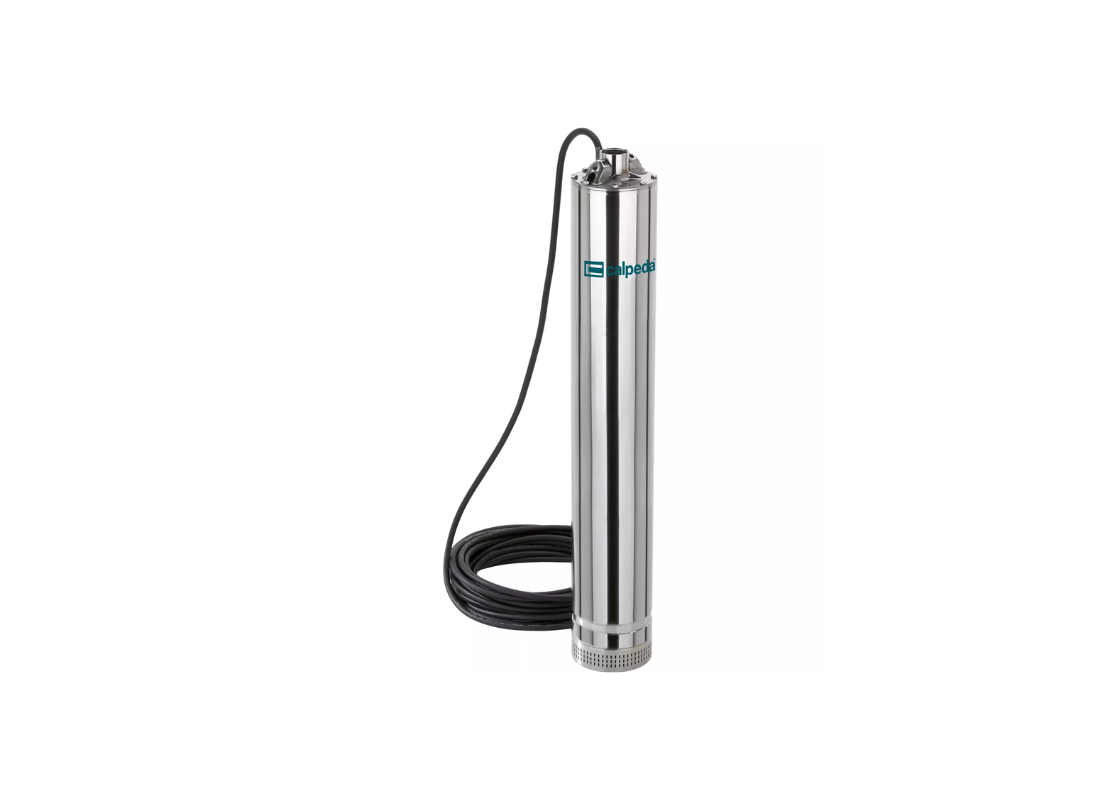

Constructed with an external casing of chrome-nickel stainless steel, the Calpeda MXS 906 close-coupled pump offers corrosion protection. This pump is designed for civil water systems, garden irrigation, and municipal rainwater storage setups. It is suitable for submerged operations inside wells of 140 mm minimum internal diameter. Operational operating environments are rated for water supply.
The delivery casing and external jacket are manufactured from AISI 304 chrome-nickel stainless steel. This unit features a close-coupled multi-stage impeller configuration of unspecified diameter with a suction strainer blocking solids over 2 mm. The unit weighs 22.2 kg, and liquid temperature limits are up to 35°C.
For electrical configurations, the 2.2 kW motor requires a 415v electrical supply and operates at 5.6 Amps. This close-coupled unit achieves a maximum total head of 59.5 m and a maximum flow of 183 L/Min through its 32 mm outlet.
Continuous duty operations are enabled by Class F motor windings and an IP X8 water enclosure rating. The pump accommodates submergence depths up to 20 meters. Double mechanical shaft seals with an intermediate oil chamber containing food-grade non-toxic oil provide fluid containment.
Features
- The power cable H07RN8-F features a length of exactly 15 meters.
- The three-phase electrical motor configuration is supplied without an electrical plug.
- The lower mechanical seal components are constructed from silicon carbide, carbon, and NBR materials.
- The upper mechanical seal features carbon, steatite, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for food and pharmaceutical applications.
- The electrical unit is rated for continuous duty operation.
- The hydraulic engineering design incorporates exactly 6 stages.
