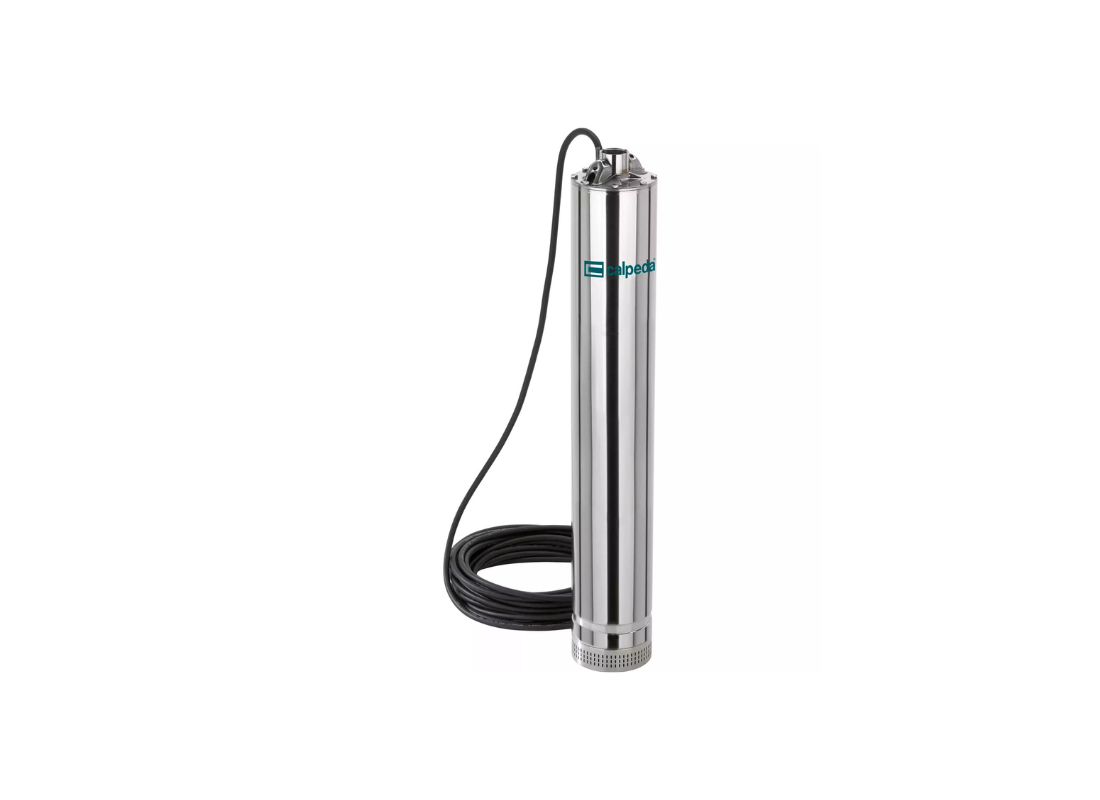

Constructed with parts in contact with fluid manufactured from chrome-nickel stainless steel, the Calpeda MXSM 304 submersible pump features a corrosion-resistant design. This pump is designed for water supply from wells and tanks, garden watering, and civil rainwater recovery. The unit is suitable for suspended or standing setups inside 140 mm minimum diameter wells.
Constructed from chrome-nickel AISI 304 stainless steel, the external jacket protects internal components. The close-coupled impeller configuration has an impeller diameter that is not specified in provided sources, and the suction strainer blocks entrance of solids bigger than 2 mm. Net product weight is not specified in provided sources, and the pump operates in liquids up to 35°C.
Operating on a 240 V electrical supply, the 0.55 kW motor features a rated nominal current of 4.1 Amps. The pump achieves a maximum total head of 41.5 m and a maximum flow rate capacity of 75 L/Min through a 32 mm discharge outlet.
Class F windings with an IP X8 liquid protection rating provide thermal insulation. The pump allows operational installation depths up to 20 meters below the surface. Double mechanical shaft seals containing food-safe lubrication oil provide fluid containment, and the built-in capacitor is accessible through the delivery casing.
Features
- The power cable H07RN8-F features a length of exactly 15 meters and incorporates an electrical plug CEI-UNEL 47166.
- A double mechanical seal is integrated with intermediate lubrication oil.
- The upper mechanical seal features carbon, steatite, and NBR materials.
- The lower mechanical seal contains silicon carbide, carbon, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for pharmaceutical and food applications.
- The induction motor configuration is rated for continuous duty operation.
- The internal engineering design integrates exactly 4 impellers.
