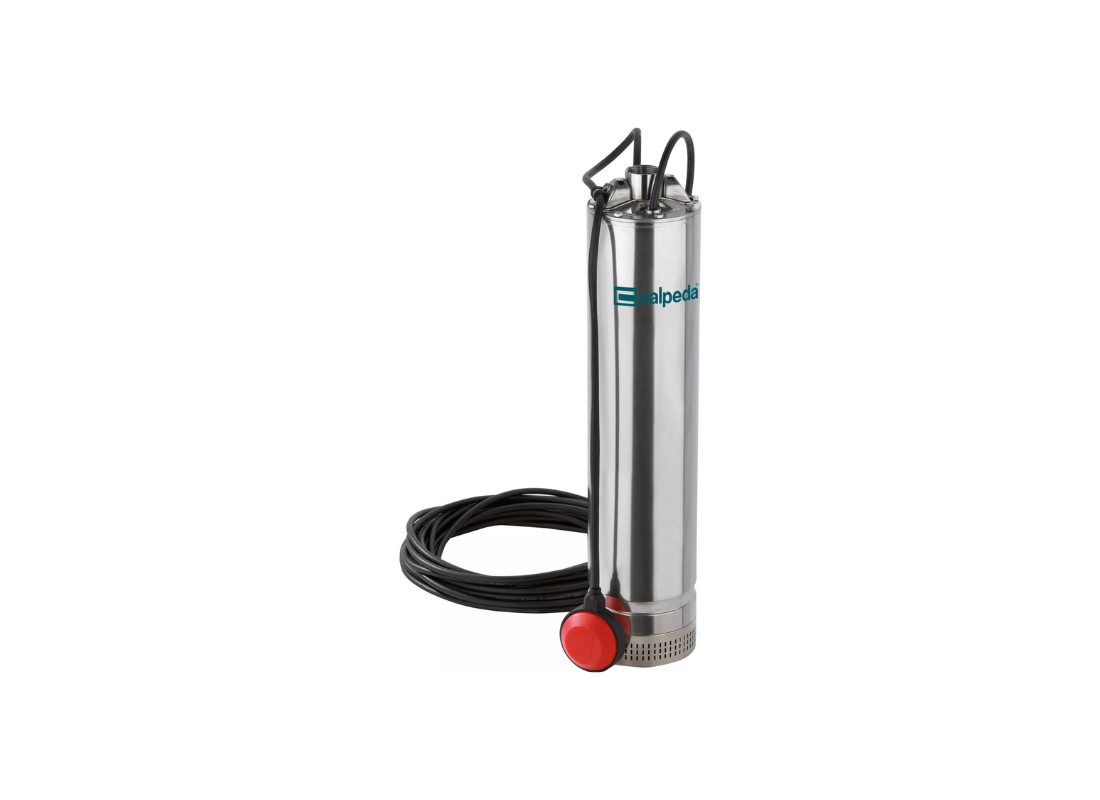

A double mechanical shaft seal isolates the motor of the Calpeda MXSM 304CG, utilizing an oil chamber filled with oil for food machinery and pharmaceutic use. The close-coupled construction incorporates a chrome-nickel stainless steel AISI 304 external jacket and delivery casing. It features a float switch, built-in thermal protector, and triple impregnation humidity-proof dry winding.
Designed for water supply from tanks, the unit is utilized for domestic clean water transfer, rainwater harvesting, and garden irrigation. It handles liquid at temperatures up to 35°C in continuous duty scenarios. The compact 5-inch structure is compatible with narrow wells having a 140 mm minimum diameter.
Hydraulic output reaches a maximum flow rate of 75 L/min and a maximum head of 41.5 m. Powered by a 0.55 kW single-phase 240v motor drawing 4.1 Amps, the pumped liquid dissipates motor heat during operation. This permits safe operation during partial submersion in standing positions.
The hydraulic section incorporates multiple stainless steel impellers housed within stage casings to move clean liquid. An integrated suction strainer at the base prevents the entrance of solids with a diameter bigger than 2 mm, protecting the internal stages. The capacitor is incorporated in the float switch for ease of electrical configuration.
FEATURES
- External jacket and delivery casing manufactured from chrome-nickel stainless steel AISI 304 for durability.
- Motor sealing is achieved using a double mechanical shaft seal with an oil-filled chamber for lubrication.
- Oil chamber contains oil for food machinery and pharmaceutic use according to datasheet specifications.
- Internal cooling is achieved by fluid circulating between the motor jacket and outer shell during service.
- Base-integrated suction strainer restricts the entrance of solid particles to a maximum diameter of 2 mm.
- Single-phase 240v motor includes a capacitor incorporated in the float switch and a built-in thermal protector.
- Triple impregnation humidity-proof dry winding ensures reliable performance in continuous duty.
- Safe continuous duty immersion up to 20 meters is supported by an IPX8 protection rating and 15m cable.
