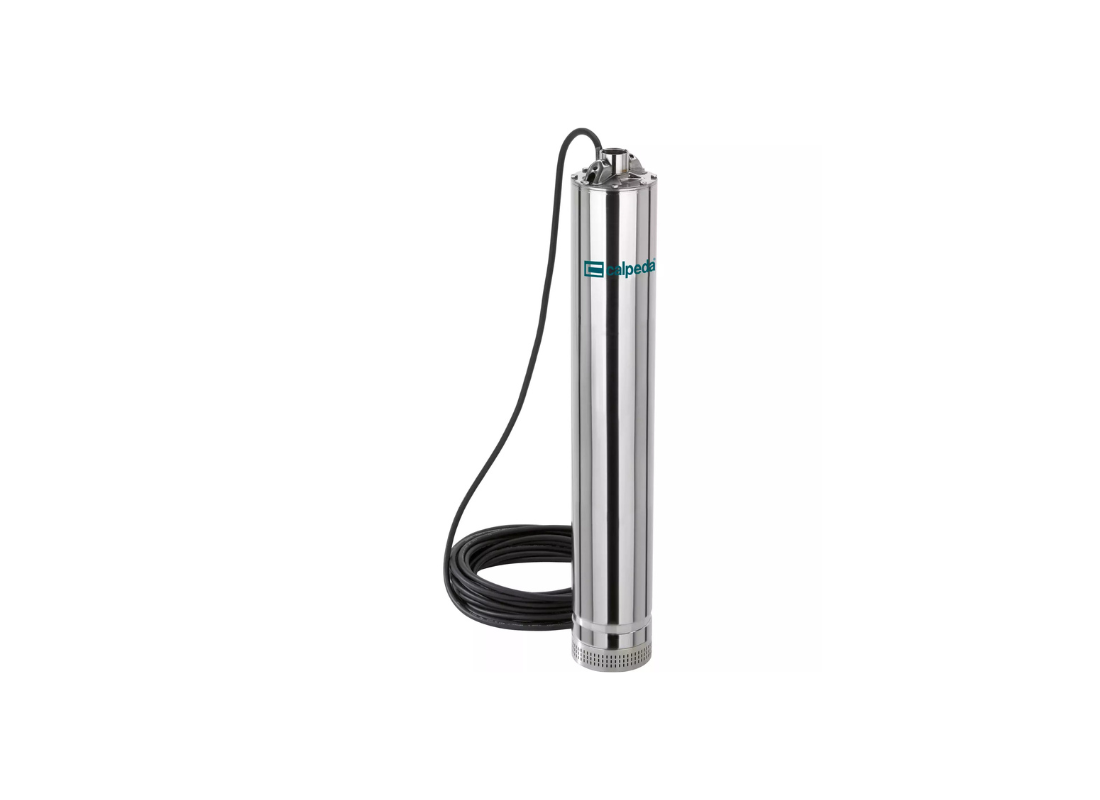

To meet environmental water supply needs, the Calpeda MXSM 308 features a submersible multi-stage design. This close-coupled unit is designed for water supply from wells, agricultural irrigation, and civil rainwater storage installations. Installation setups are compatible with suspended or standing positions in wells measuring 140 mm minimum internal diameter.
Built with EN 10088 AISI 304 stainless steel components, the pump external structure houses the multi-stage impellers. The close-coupled impeller design features an unspecified diameter and filters solids larger than 2 mm via the suction strainer. Net product weight is not specified in provided sources, and fluid temperatures can reach up to 35°C.
A rated current of 8.3 Amps is specified for the 1.1 kW motor operating on a 240 V electrical connection. The hydraulic design achieves a maximum head of 81.5 m and a maximum flow of 75 L/Min with a 32 mm discharge port.
The motor is built with Class F insulation and features an IP X8 protection rating for continuous duty immersion. Submergence depths up to 20 meters are permitted. Double mechanical shaft seals with an intermediate oil chamber containing non-toxic lubrication oil provide fluid containment, and the built-in capacitor is accessible through the delivery casing.
Features
- The power cable H07RN8-F features a length of exactly 15 meters and incorporates an electrical plug CEI-UNEL 47166.
- A double mechanical seal is integrated with intermediate lubrication oil.
- The upper mechanical seal features carbon, steatite, and NBR materials.
- The lower mechanical seal contains silicon carbide, carbon, and NBR construction.
- The shaft seal lubrication utilizes non-toxic oil specified for pharmaceutical and food applications.
- The induction motor configuration is rated for continuous duty operation.
- The internal engineering design integrates exactly 8 impellers.
