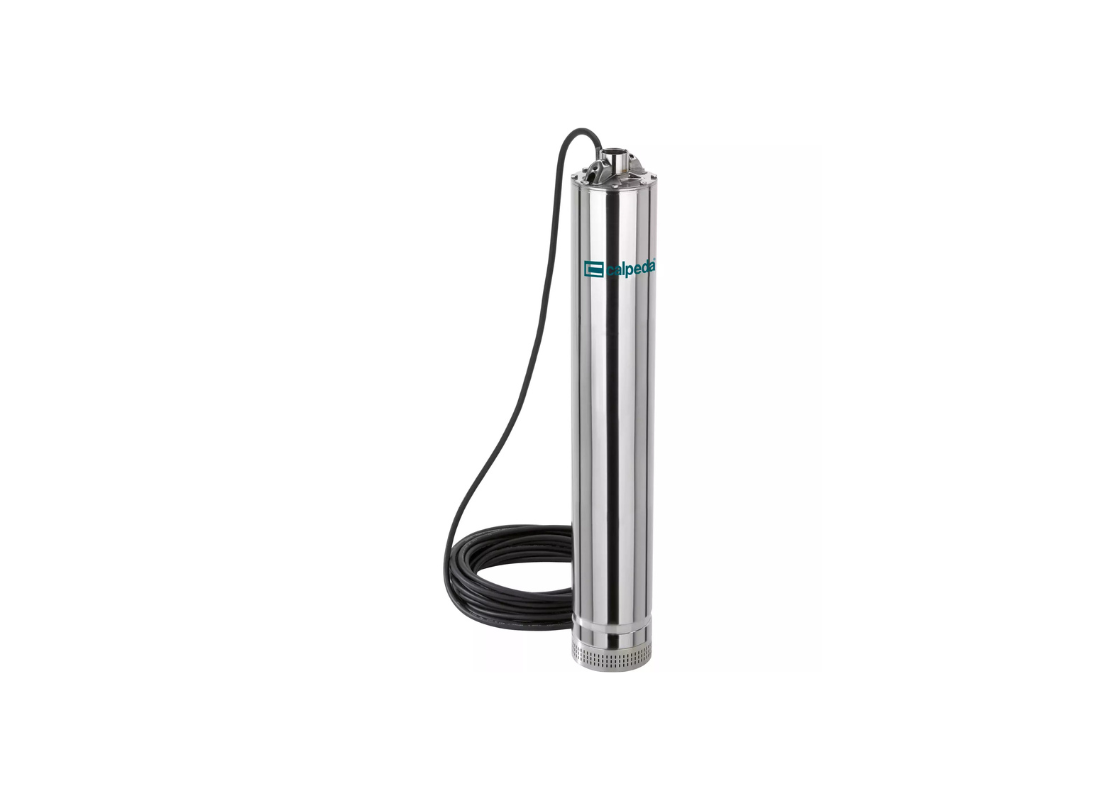

Designed for garden irrigation and rainwater harvesting, the Calpeda MXSM 504 provides clean water transfer for domestic and civil applications. It is suitable for water supply from wells or tanks, operating at clean liquid temperatures up to 35°C. The pump is intended for continuous duty in submerged environments in the standing position.
Performance characteristics for this 0.9 kW single-phase unit include a maximum head of 39 m and a maximum flow rate of 133 L/min. Operating at 240v with a rated current of 6 Amps, the motor is cooled by the pumped fluid to allow for service during partial submersion.
Multi-stage hydraulics feature stainless steel impellers for clean water transfer through the casings. To protect the internal components, an integrated suction strainer limits the entrance of solids to those with a diameter no bigger than 2 mm. The 5-inch close-coupled structure is compatible with wells having a 140 mm minimum internal diameter.
Mechanical features include an external jacket and delivery casing manufactured from chrome-nickel stainless steel AISI 304. Sealing is provided by a double mechanical shaft seal with an oil chamber. The single-phase motor includes an incorporated capacitor, a built-in thermal protector, and a triple impregnation humidity-proof dry winding.
FEATURES
- External jacket and delivery casing manufactured from chrome-nickel stainless steel AISI 304 for durability.
- Double mechanical shaft seal with oil chamber provides motor protection and seals the motor from fluid ingress.
- Shaft seal lubrication uses oil for food machinery and pharmaceutic use within the integrated oil chamber.
- Motor is cooled by the pumped fluid passing between the jacket and the external shell during operation.
- Integrated suction strainer prevents the entrance of solid debris with a diameter bigger than 2 mm.
- Single-phase motor includes an incorporated capacitor and a built-in thermal protector for safe service.
- Motor winding is a triple impregnation humidity-proof dry type constructed in accordance with EN 60335-2-41.
- Suitable for continuous duty operation with IPX8 protection for immersion up to 20 meters.
