Mechanical features include a 5-inch close-coupled integrated design with an external jacket manufactured from chrome-nickel stainless steel AISI 304. Sealing is provided by a double mechanical shaft seal with an oil chamber containing oil for food machinery and pharmaceutic use. It features a float switch, built-in thermal protector, and triple impregnation humidity-proof dry winding.

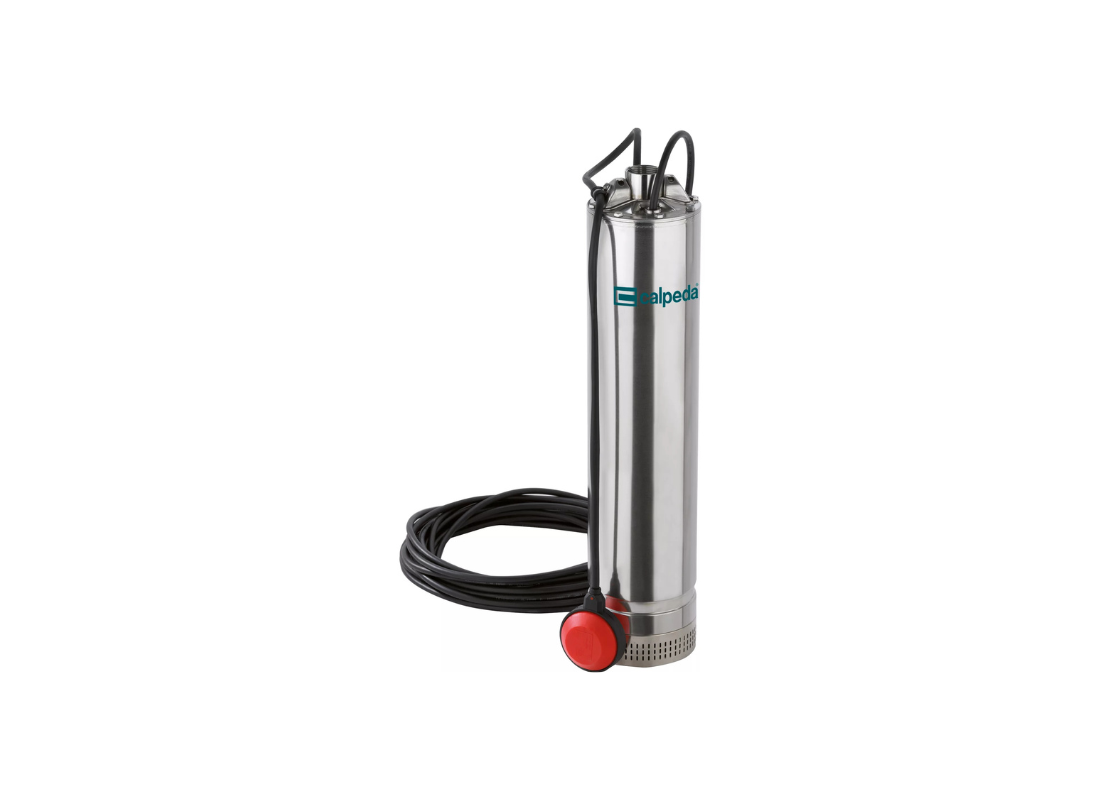

Clean water transfer from wells is supported by the Calpeda MXSM 506CG, which manages automated domestic and civil supply via an integrated float switch. It is suitable for garden irrigation and rainwater harvesting systems with clean liquid temperatures up to 35°C. The pump is rated for continuous duty in standing positions within wells and tanks.
Powered by a 1.50 kW single-phase 240v motor, this model reaches a maximum head of 58 m and a maximum flow of 133 L/min. Drawing a rated current of 8.3 Amps, the pumped liquid dissipates motor heat during operation. This design allows for safe service during partial submersion.
Multi-stage hydraulics feature stainless steel impellers housed within AISI 304 stage casings to move clean water. An integrated suction strainer at the base prevents the entrance of solids with a diameter bigger than 2 mm, protecting the internal components from debris. The unit fits narrow wells with a 140 mm minimum internal diameter.
FEATURES
- Constructed using chrome-nickel stainless steel AISI 304 for all components in contact with the fluid.
- Oil-lubricated double mechanical shaft seal protects the motor against water ingress and provides lubrication.
- Seal lubrication uses oil for food machinery and pharmaceutic use within the integrated oil chamber.
- Pumped liquid provides continuous motor cooling during operation to dissipate heat.
- Base-integrated suction strainer restricts the entrance of solid debris with a diameter bigger than 2 mm.
- Safe electrical service is provided by a built-in thermal protector and a capacitor incorporated in the float switch.
- Triple impregnation humidity-proof dry winding ensures motor reliability under continuous duty cycles.
- Rated for IPX8 protection with continuous immersion up to 20 meters using 15m cable.
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
