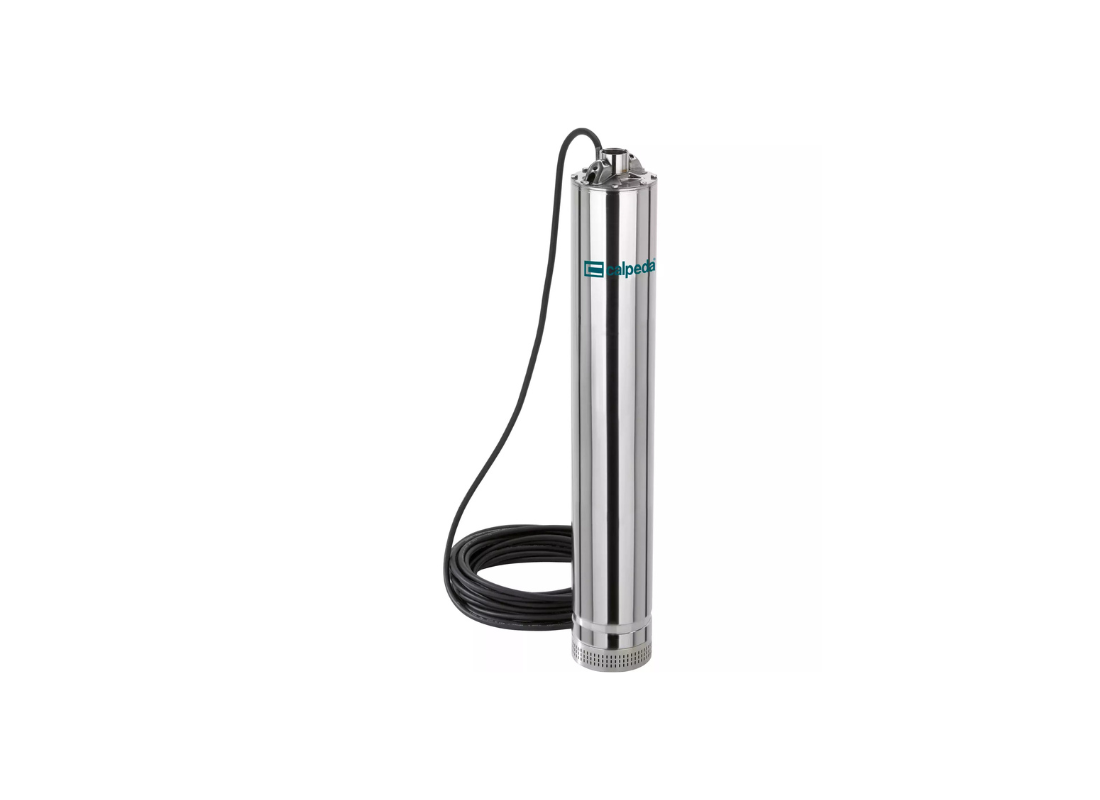

Civil applications utilize the Calpeda MXSM 507 for clean water transfer and domestic water supply from reservoirs or wells. It is used for garden irrigation and rainwater harvesting systems, operating at temperatures up to 35°C. The pump is designed for continuous duty and is compatible with wells having a 140 mm minimum diameter.
This 1.5 kW single-phase 240v model delivers a maximum flow of 133 L/min and reaches a maximum head of 69.5 m. Drawing 12 Amps, the motor is cooled by the pumped fluid passing through the external jacket, which allows for safe service during partial submersion.
Multi-stage hydraulics feature stainless steel impellers for clean water transfer. To protect the internal components, an integrated suction strainer at the base prevents the entrance of solids with a diameter bigger than 2 mm. The unit is intended for installation in the standing position.
Construction features an external jacket and delivery casing manufactured from chrome-nickel stainless steel AISI 304. Sealing is provided by a double mechanical shaft seal with an oil chamber. The motor includes an incorporated capacitor, a built-in thermal protector, and a triple impregnation humidity-proof dry winding.
FEATURES
- Internal and external parts in contact with fluid are manufactured from chrome-nickel stainless steel AISI 304.
- Double mechanical shaft seal with oil chamber provides motor protection and lubricates the shaft seal.
- Shaft seal lubrication uses oil for food machinery and pharmaceutic use within the integrated oil chamber.
- Hydraulics located below the motor ensure the motor is cooled by the pumped fluid during operation.
- Integrated suction strainer restricts the entrance of solid particles to a maximum diameter of 2 mm.
- Single-phase motor includes an incorporated capacitor and a built-in thermal protector for safety.
- Triple impregnation humidity-proof dry winding ensures reliable performance in continuous duty.
- Suitable for continuous duty operation with IPX8 protection for immersion up to 20 meters.
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
