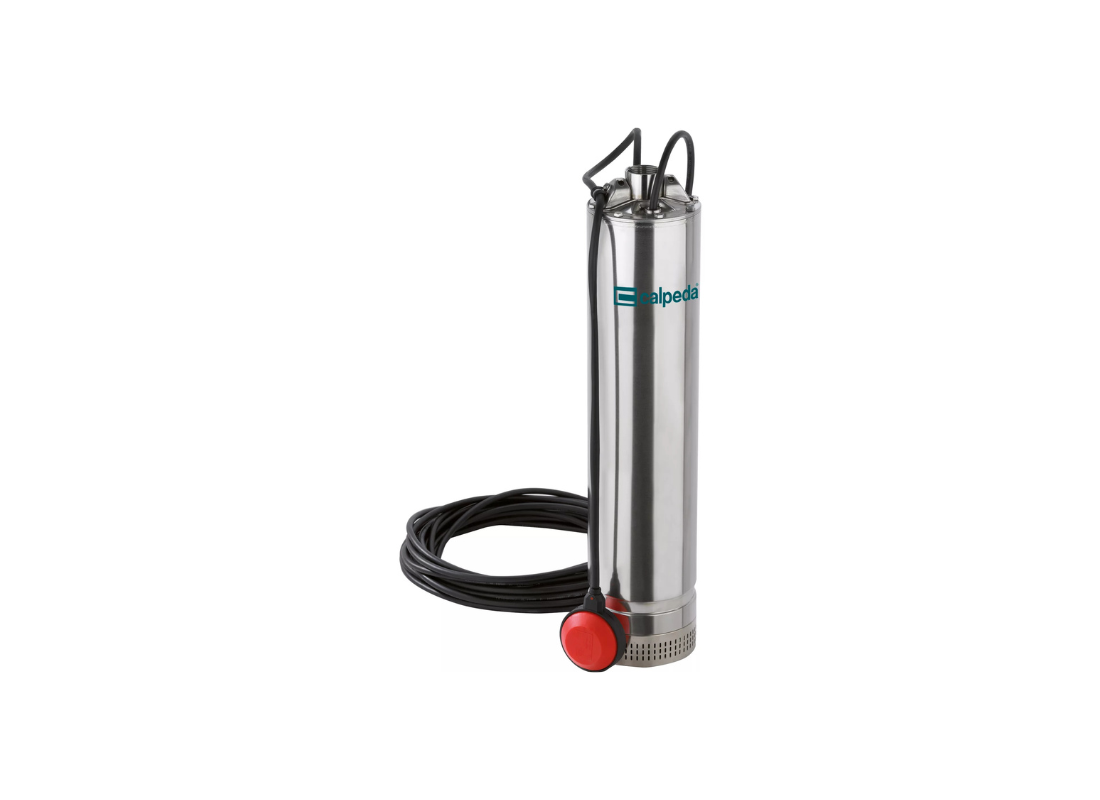

Hydraulic output reaches a maximum flow rate of 133 L/min and a maximum head of 69.5 m for the Calpeda MXSM 507CG. Driven by a 1.50 kW single-phase 240v motor with a rated current of 12 Amps, internal cooling is achieved by fluid circulating between the motor jacket and outer shell. This allows for safe service even when the pump is only partially submerged.
Water passes through multiple stainless steel impellers arranged in stages for clean water transfer in domestic and civil environments. A base-integrated suction strainer restricts the entrance of solid particles to those no bigger than 2 mm in diameter, protecting the internal components. The unit is intended for standing installation in narrow wells of 140 mm diameter.
Civil water supply and garden irrigation are managed by this pump, which includes a float switch for automated service. It is suitable for rainwater harvesting and supply from wells or reservoirs with clean liquid temperatures up to 35°C. Construction features all fluid-contact parts in chrome-nickel stainless steel AISI 304.
Mechanical construction features a 5-inch close-coupled integrated design with a double mechanical shaft seal and oil chamber containing oil for food machinery and pharmaceutic use. It features a capacitor incorporated in the float switch, a built-in thermal protector, and a triple impregnation humidity-proof dry winding.
FEATURES
- Manufactured with all internal and external parts in contact with fluid in chrome-nickel stainless steel AISI 304.
- Double mechanical shaft sealing with an integrated oil chamber enhances motor protection and lubrication.
- Oil chamber contains oil for food machinery and pharmaceutic use as per datasheet specifications.
- The pumped liquid dissipates motor heat during operation, facilitating safe partial immersion.
- Integrated suction strainer restricts the entrance of solid particles to a maximum diameter of 2 mm.
- Single-phase motor winding incorporates a built-in thermal protector and a capacitor incorporated in the float switch.
- Motor features triple impregnation humidity-proof dry winding designed in accordance with EN 60335-2-41.
- Safe continuous duty immersion up to 20 meters is supported by an IPX8 protection rating and 15m cable.
