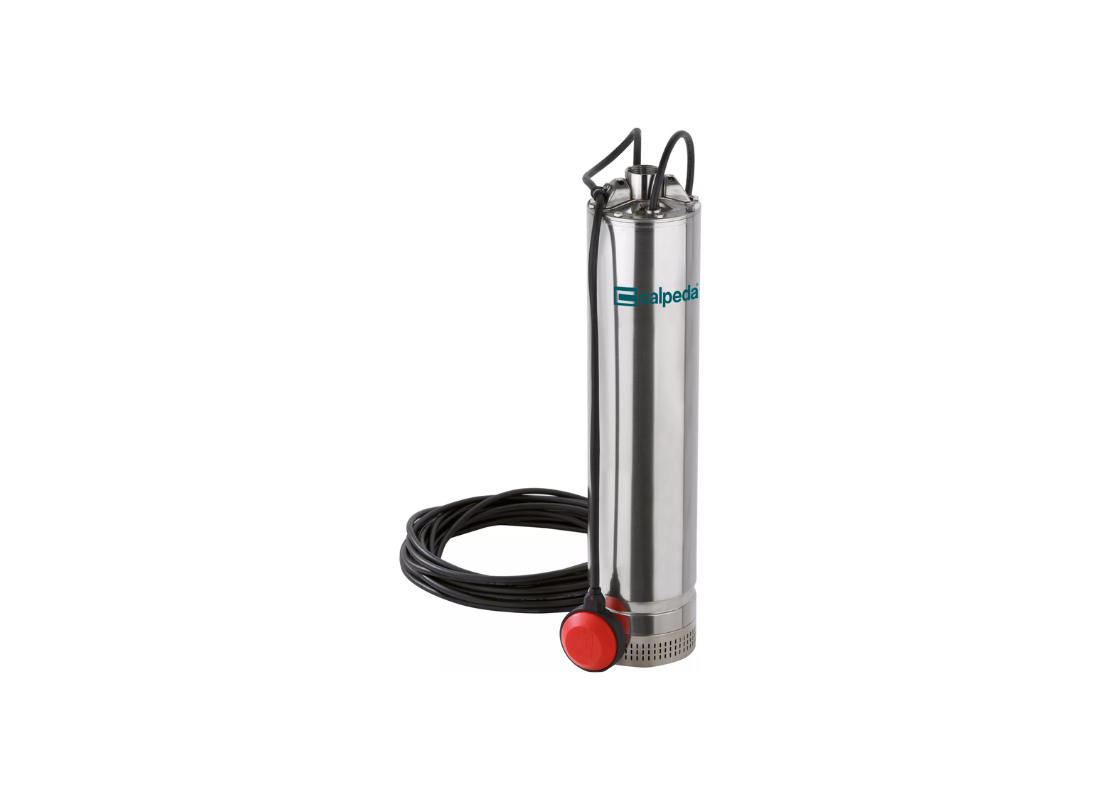

Water supply from wells is handled by the Calpeda MXSM 905CG for civil and industrial clean water transfer tasks. Equipped with a float switch for automated service, it handles clean liquid up to 35°C in continuous duty scenarios. The pump is intended for standing installation in narrow wells of 140 mm minimum internal diameter.
Mechanical construction features a chrome-nickel stainless steel AISI 304 delivery casing and external jacket. Motor protection is provided by a double mechanical shaft seal with an oil chamber containing oil for food machinery and pharmaceutic use. It features a built-in thermal protector, a capacitor incorporated in the float switch, and triple impregnation humidity-proof dry winding.
Water passes through multiple stainless steel impellers arranged in stages within the stage casings to move fluid through the pump. To safeguard the internal components, an integrated suction strainer prevents the entrance of solids with a diameter bigger than 2 mm. The design supports reliable flow behavior during operation in reservoirs and tanks.
Powered by a 2.20 kW single-phase 240v motor with a rated current of 13 Amps, the model reaches a maximum head of 49 m and 183 L/min maximum flow. Pumped liquid provides continuous motor cooling during operation, permitting safe operation during partial submersion.
FEATURES
- Manufactured using chrome-nickel stainless steel AISI 304 for all parts in contact with the pumped fluid.
- Oil-lubricated double mechanical shaft seal protects the motor against water ingress and provides lubrication.
- Seal lubrication uses oil for food machinery and pharmaceutic use within the integrated oil chamber.
- The pumped liquid dissipates motor heat during operation, facilitating safe partial immersion.
- Integrated suction strainer restricts the entrance of solid debris with a diameter bigger than 2 mm.
- Safe electrical service is provided by a built-in thermal protector and a capacitor incorporated in the float switch.
- Triple impregnation humidity-proof dry winding ensures motor reliability under continuous duty cycles.
- Suitable for continuous duty operation with IPX8 protection for immersion up to 20 meters.
