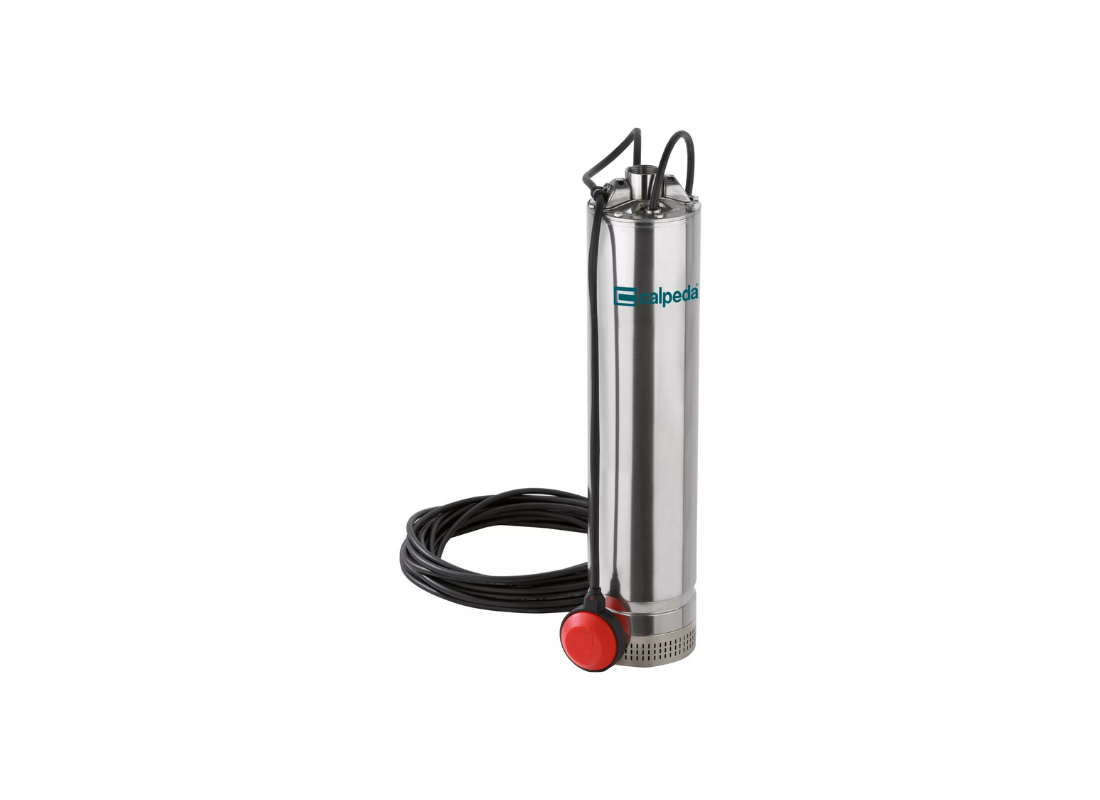

Operating with a maximum head of 59.5 m, the Calpeda MXSM 906CG delivers a maximum flow rate of 183 L/min for automated clean water transfer. This model includes a float switch and is powered by a 2.20 kW single-phase 240v motor with a rated current of 14.3 Amps. The pumped liquid dissipates motor heat during operation, supporting safe operation even when partially submerged.
Designed for rainwater harvesting, the unit is suitable for garden irrigation and clean water transfer from reservoirs or wells with a 140 mm minimum diameter. It handles liquid temperatures up to 35°C in continuous duty scenarios. Construction features all internal and external parts in contact with fluid in chrome-nickel stainless steel AISI 304.
The hydraulic section incorporates multiple stainless steel impellers arranged in stages for clean water transfer. A base-integrated suction strainer restricts the entrance of solid particles to a maximum diameter of 2 mm, protecting internal components. The pump is intended for installation in the standing position within wells and tanks.
Mechanical construction features a 5-inch close-coupled integrated design with an external jacket manufactured from chrome-nickel stainless steel AISI 304. Sealing is provided by a double mechanical shaft seal with an oil chamber housing oil for food machinery and pharmaceutic use. The motor features an incorporated capacitor in the float switch and triple impregnation humidity-proof dry winding.
FEATURES
- Internal and external parts in contact with fluid are manufactured from chrome-nickel stainless steel AISI 304.
- Double mechanical shaft sealing with an integrated oil chamber enhances motor protection and lubrication.
- Mechanical shaft seal lubrication is provided by oil for food machinery and pharmaceutic use in the oil chamber.
- Internal cooling is achieved by fluid circulating between the motor jacket and outer shell during operation.
- Base-integrated suction strainer restricts the entrance of solid particles to a maximum diameter of 2 mm.
- Single-phase 240v motor includes a built-in thermal protector and a capacitor incorporated in the float switch.
- Motor winding features triple impregnation humidity-proof dry construction according to EN 60335-2-41 standards.
- Suitable for continuous duty operation with IPX8 protection for immersion up to 20 meters.
