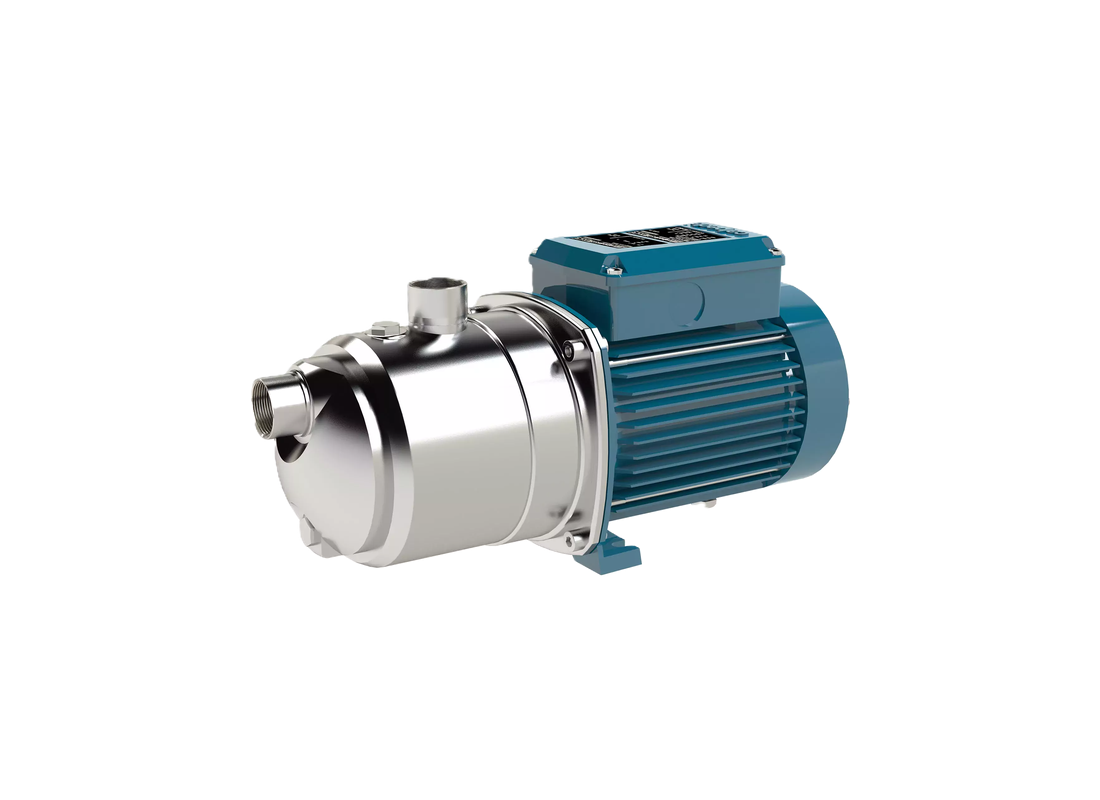

Outdoor water systems and irrigation duties often require dependable self-priming performance where suction conditions may fluctuate during operation. The Calpeda NGXM 4/110 is designed for garden water systems, residential clean water movement, and general transfer applications requiring reliable suction capability and stable pressure delivery.
Capable of delivering flow rates up to 75 L/Min with maximum head reaching 40 m, this self-priming jet pump supports balanced water movement across washing systems, garden irrigation arrangements, and household supply duties. The built-in ejector system enables suction lift capability up to 9 m while assisting rapid priming during start-up conditions.
Hydraulic efficiency is supported through an exclusive diffuser geometry combined with an integrated flow control device that assists in reducing turbulence and lowering operational noise levels. Internal air evacuation around the mechanical seal also helps improve operational reliability by reducing the risk of insufficient seal flushing under temporary abnormal suction conditions.
The compact close-coupled construction provides installation flexibility for restricted spaces and retrofit applications. Both the casing and casing cover are manufactured from AISI 304 stainless steel for improved corrosion resistance, while the Noryl PPO-GF20 impeller contributes to lightweight and durable hydraulic performance for clean water duties.
Single-phase 230V operation is supported by integrated thermal motor protection together with IP54 protection rating and Class F insulation. The pump is suitable for continuous-duty operation with maximum liquid temperatures up to 35°C and permissible casing pressure up to 8 bar.
FEATURES- Self-priming jet pump with built-in ejector system
- Maximum suction lift capability up to 9 m
- Exclusive diffuser geometry reducing hydraulic turbulence
- Integrated flow control device lowering operational noise
- Improved internal air evacuation protecting mechanical seal operation
- Compact close-coupled configuration for easier installation
- AISI 304 stainless steel casing and casing cover
- Noryl PPO-GF20 impeller for lightweight hydraulic performance
