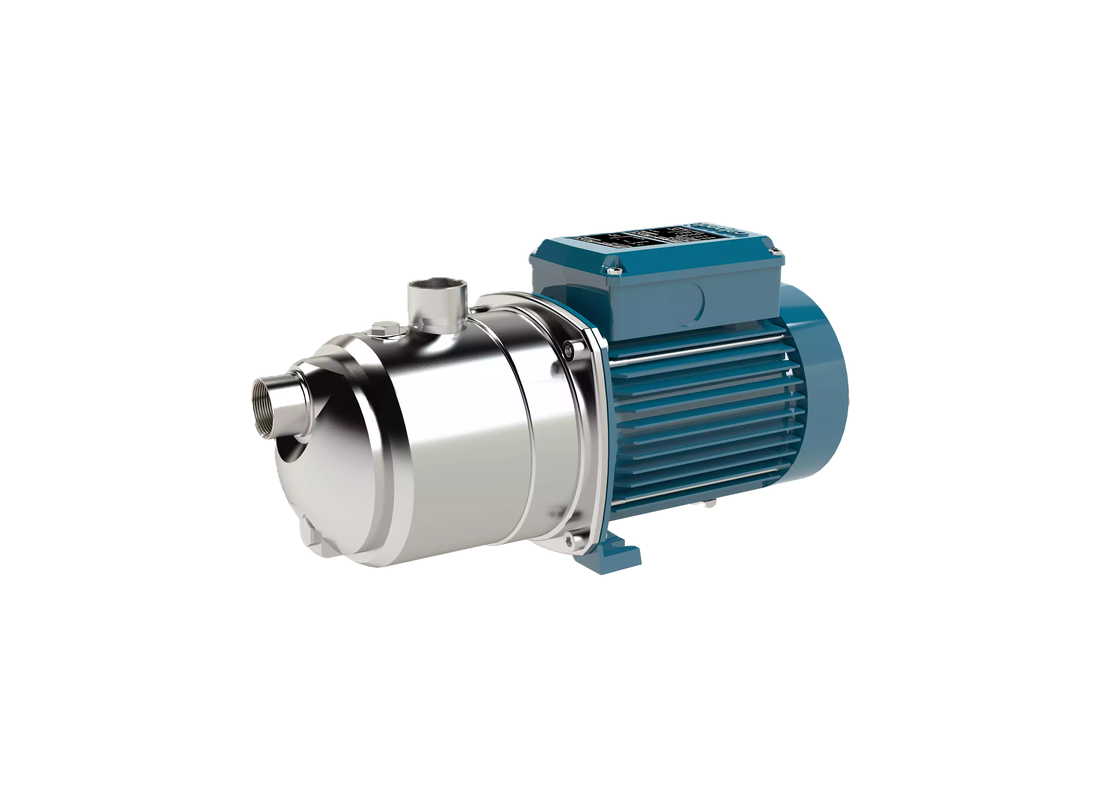

Stable water pressure becomes increasingly important in residential systems where multiple outlets, washing points, or fluctuating demand conditions are involved. The Calpeda NGXM 4/18 combines self-priming jet pump performance with compact close-coupled construction, making it suitable for shallow-well water supply, pressure-assisted transfer duties, and general clean water circulation applications.
Its hydraulic configuration is capable of producing flow rates up to 83.3 L/Min while generating maximum head up to 46 m. A built-in ejector system enables suction lift capability up to 9 m, assisting rapid priming performance where intermittent air intake or irregular suction conditions may occur during operation.
To improve operating stability, the pump incorporates an exclusive diffuser geometry together with an integrated flow control device that assists in minimizing hydraulic turbulence and lowering running noise. Internal air evacuation around the mechanical seal also contributes to improved reliability by helping reduce stress caused by insufficient seal flushing under temporary abnormal operating conditions.
Durability is supported through AISI 304 stainless steel construction across both the pump casing and casing cover, providing improved corrosion resistance for long-term clean water duties. The NGXM 4/18 utilizes a brass impeller designed to maintain strong hydraulic efficiency while supporting dependable operation across demanding residential pressure applications.
The single-phase motor operates on 230V power supply and includes integrated thermal protection together with IP54 enclosure protection and Class F insulation. Continuous-duty operation is supported for liquid temperatures up to 35°C with maximum permissible casing pressure reaching 8 bar.
FEATURES & BENEFITS- Self-priming jet pump design with integrated ejector system
- Produces up to 83.3 L/Min flow and 46 m maximum head
- Suction lift capability up to 9 m for shallow-well applications
- Brass impeller supporting durable hydraulic efficiency
- AISI 304 stainless steel casing and casing cover
- Exclusive diffuser geometry helping reduce turbulence
- Integrated flow control device assisting quieter operation
- Internal air evacuation system improving mechanical seal reliability
- Compact close-coupled construction for easier installation
- IP54 motor protection with Class F insulation
