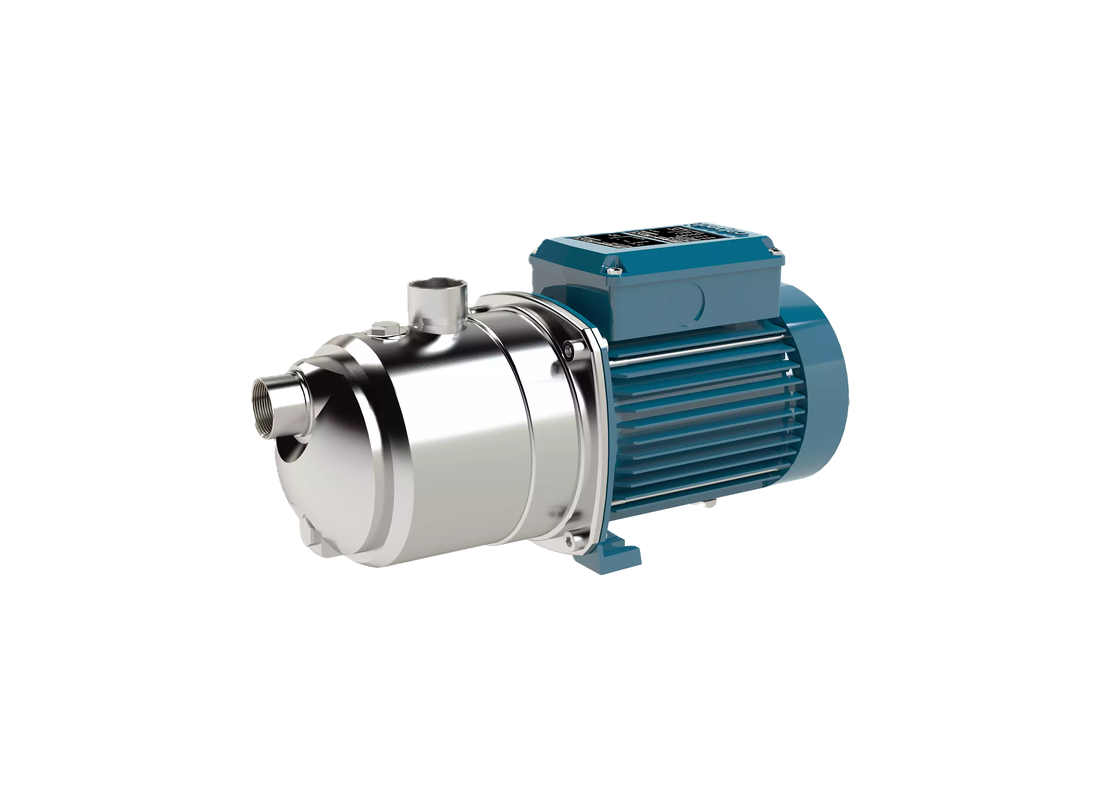

Large clean water transfer systems often require rapid priming performance together with stable delivery across varying suction conditions. The Calpeda NGXM 6/22 is designed as a self-priming jet pump for high-volume water movement, washing systems, garden distribution duties, and pressure-assisted supply applications.
Flow rates up to 140 L/Min combined with maximum head reaching 45 m allow the pump to maintain efficient water movement across demanding residential and above-ground transfer arrangements. A built-in ejector system supports suction lift capability up to 9 m while assisting automatic priming performance during start-up operation.
Calpeda incorporates an exclusive diffuser geometry together with an integrated flow control device to help stabilize hydraulic operation and reduce running noise during continuous-duty use. Internal air evacuation around the mechanical seal also assists in minimizing seal stress caused by temporary abnormal suction conditions.
AISI 304 stainless steel construction across the casing and casing cover provides corrosion resistance for continuous clean water applications, while the brass impeller supports durable hydraulic efficiency under higher-flow operating duties. The compact close-coupled layout also improves installation flexibility where available space is restricted.
The single-phase motor operates on 230V power supply with integrated thermal protection, IP54 enclosure protection, and Class F insulation. Continuous-duty operation is supported for liquid temperatures up to 35°C with maximum permissible casing pressure reaching 8 bar.
FEATURES- Built-in ejector system supporting rapid self-priming operation
- Suitable for high-volume clean water movement
- Up to 9 m suction lift capability for shallow-well duties
- Brass impeller for demanding hydraulic applications
- AISI 304 stainless steel casing and casing cover
- Integrated flow control device assisting quieter operation
- Internal air evacuation helping protect seal reliability
- Compact close-coupled configuration simplifying installation
- IP54 motor enclosure with Class F insulation
