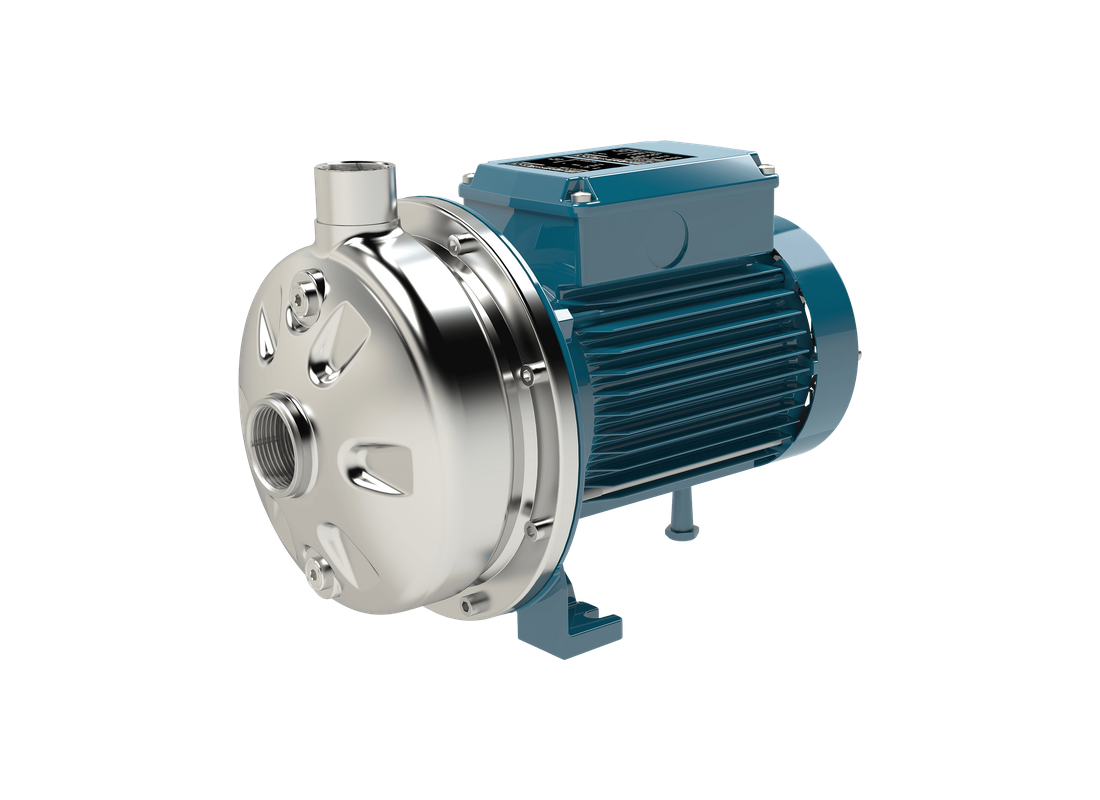

Cooling and service liquid transfer layouts can benefit from the Calpeda NMXM 25/90A, a close-coupled centrifugal pump developed for clean liquids that are non-aggressive toward stainless steel materials. The hydraulic assembly is manufactured in AISI 304 stainless steel and supports domestic, civil, garden, irrigation, and industrial utility applications where compact installation and corrosion-resistant construction are important. Its single-phase motor configuration allows operation from standard 230V supply while maintaining continuous-duty performance characteristics.
Hydraulic capability extends to a maximum head of 28.2 m with flow rates reaching 6.6 m³/h. The motor develops 1.1 kW rated output with maximum power input of 1.5 kW while operating at 7 A under 230V single-phase supply conditions. A two-pole induction motor operating near 2900 rpm supports stable pressure generation and controlled flow transfer across varying operating demand. Threaded suction and discharge ports in ISO 228/1 configuration simplify integration into compact pipework systems.
Flow movement is managed through a closed impeller arrangement engineered for smooth hydraulic transfer with clean, non-abrasive liquids. The close-coupled motor and hydraulic layout minimizes alignment requirements and reduces overall installation footprint compared with separately coupled assemblies. Stainless steel casing, shaft, impeller, and casing cover components contribute to corrosion resistance and long-term hydraulic consistency during extended operating periods.
Mechanical sealing uses ceramic alumina and carbon seal faces combined with EPDM elastomer components. Operating capability covers liquid temperatures from -10°C to +90°C with maximum permissible working pressure up to 10 bar. The motor assembly incorporates class F insulation and IP54 protection, while the integrated thermal protector used on NMXM single-phase models supports additional operating safety. Approximate unit weight for this model is 13.6 kg according to the technical data sheet.
FEATURES- Single-phase 230V close-coupled centrifugal pump configuration
- Closed impeller hydraulic design for stable clean liquid transfer
- AISI 304 stainless steel casing, shaft, impeller, and casing cover
- ISO 228/1 threaded suction and discharge connection arrangement
- Ceramic alumina and carbon mechanical seal face combination
- EPDM elastomer support components for sealing stability
- Two-pole induction motor operating at approximately 2900 rpm
- Integrated thermal protector with IP54 motor enclosure and class F insulation
