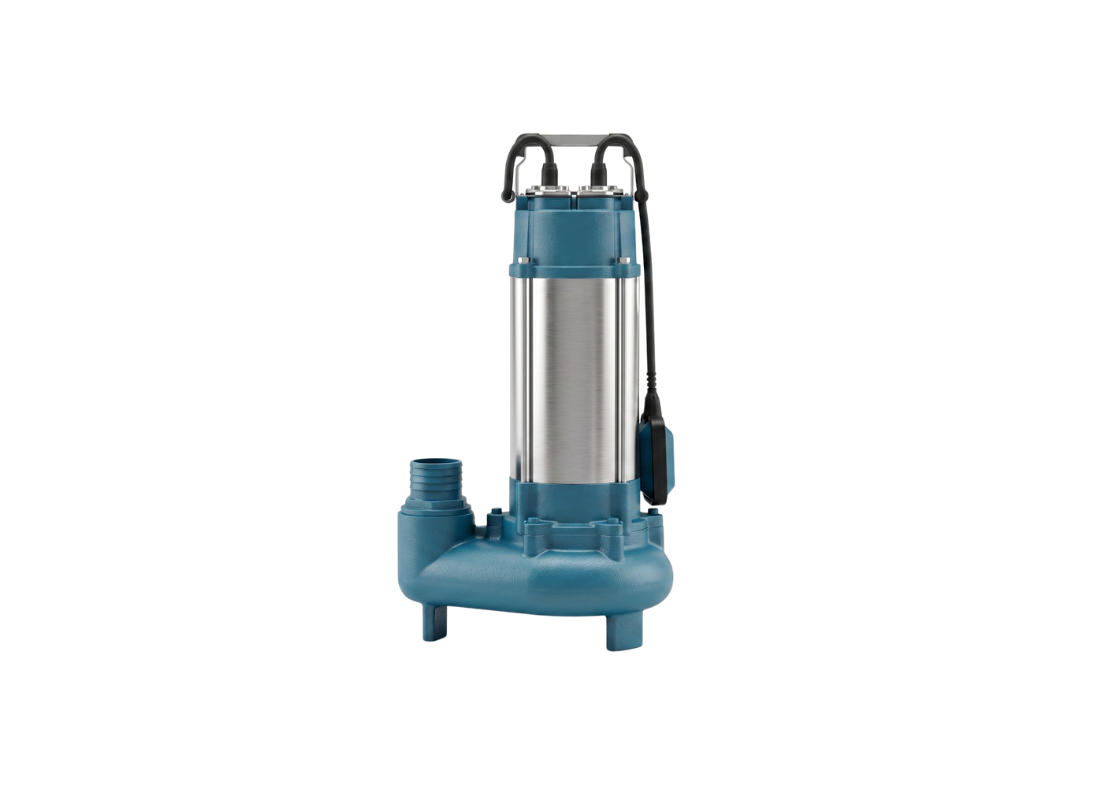

Addressing long-term operating cost scaling and energy efficiency is achieved through the mechanical design of this high-capacity discharge system. The SPRINT GVM 750 submersible pump is designed for high-flow drainage, industrial slurry, storm dewatering, and mine dewatering applications. It is suitable for standard setups and works in diverse wastewater environments.
Constructed from cast iron GJL 200 EN 1561, the housing surrounds internal components. The vortex impeller, measuring 147 mm, processes solids up to 15 mm. The unit weighs 17.2 kg and operates in liquids up to 35°C. An integrated chrome-nickel steel AISI 304 motor jacket has high structural resistance to corrosion.
The 0.75 kW motor operates on a 240v supply with a rated current of 5.6 Amps. The pump achieves a maximum head of 13.5 meters and a maximum flow of 400 L/Min through a 50 mm discharge outlet. A rotational speed of 2900 rpm provides steady discharge outputs under continuous operation.
Thermal protection is provided by Class B insulation with an IP X8 enclosure rating. The pump is rated for installation depths up to 5 metres below the liquid surface. Lubricated mechanical seals with oil chamber configuration provide containment. The system includes a float switch, thermal protector, and 10 m power cable with an Australian plug.
Features
- Equipped with a standard 10 meter H05RN-F 3G1 mm2 power cable featuring an Australian plug connection.
- Features a 20 microfarad run capacitor rated for 450 V operating limits.
- Includes an automatic float switch for system cycling based on water level shifts.
- Constructed with a physical height measuring 426 mm and a width measuring 160 mm.
- Features a physical length measuring 230 mm and a net unit weight measuring 17.2 kg.
- Features a 50 mm gas thread outlet connection size specified as 2 inches.
