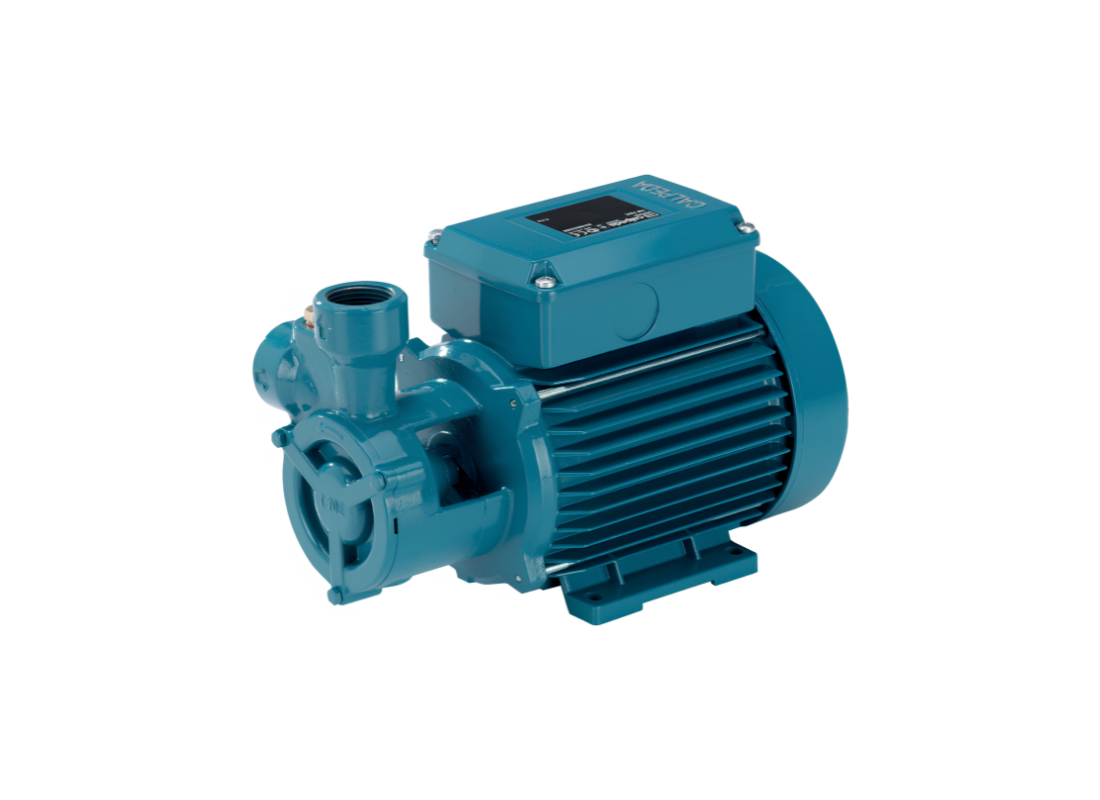

The Calpeda T 61E is a three-phase peripheral electropump designed for domestic pressure boosting, compact cooling equipment, circulation systems, and clean water transfer applications requiring dependable pressure generation with compact installation dimensions. Operating on 400V three-phase power with 0.33 kW (0.45 HP) motor output, the pump is suitable for installations where stable pressure performance and reduced space requirements are important.
The peripheral hydraulic configuration combined with a precision-machined Brass CW617N EN 12167 impeller allows the T 61E to generate head up to 38 metres while delivering flow performance up to 40 L/Min). This operating characteristic makes the pump highly suitable for network pressure boosting, cooling unit circulation, air-conditioning equipment, compact utility systems, and controlled clean liquid transfer duties.
The pump casing, lantern bracket, and casing cover are manufactured from Cast Iron GJL 200 EN 1561 for dependable structural rigidity and long-term operating durability. The close-coupled peripheral construction helps reduce installation space requirements while supporting efficient integration into compact machinery and circulation equipment.
The hydraulic assembly incorporates a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon/Ceramic/NBR mechanical seal arrangement for dependable sealing reliability and operational stability. The 2-pole induction motor operates at approximately 2900 rpm and includes IP54 protection with Class F insulation for continuous-duty operation in demanding utility and circulation applications.
The T 61E is designed for clean liquids without abrasives, suspended solids, explosive fluids, or aggressive substances for pump materials. Operating conditions support liquid temperatures from -10°C up to +90°C, ambient temperatures up to 40°C, suction lift up to 7 metres, and maximum permissible casing pressure up to 12.5 bar.
FEATURES
- Peripheral hydraulic design supports high-pressure clean water transfer
- Brass CW617N EN 12167 impeller improves hydraulic efficiency
- Cast Iron GJL 200 EN 1561 construction improves structural durability
- Compact close-coupled configuration reduces installation space
- Suitable for cooling systems and air-conditioning circulation equipment
- Designed for domestic pressure boosting and utility circulation duties
- IP54 motor protection with Class F insulation supports continuous-duty operation
- Supports liquid temperatures from -10°C to +90°C
