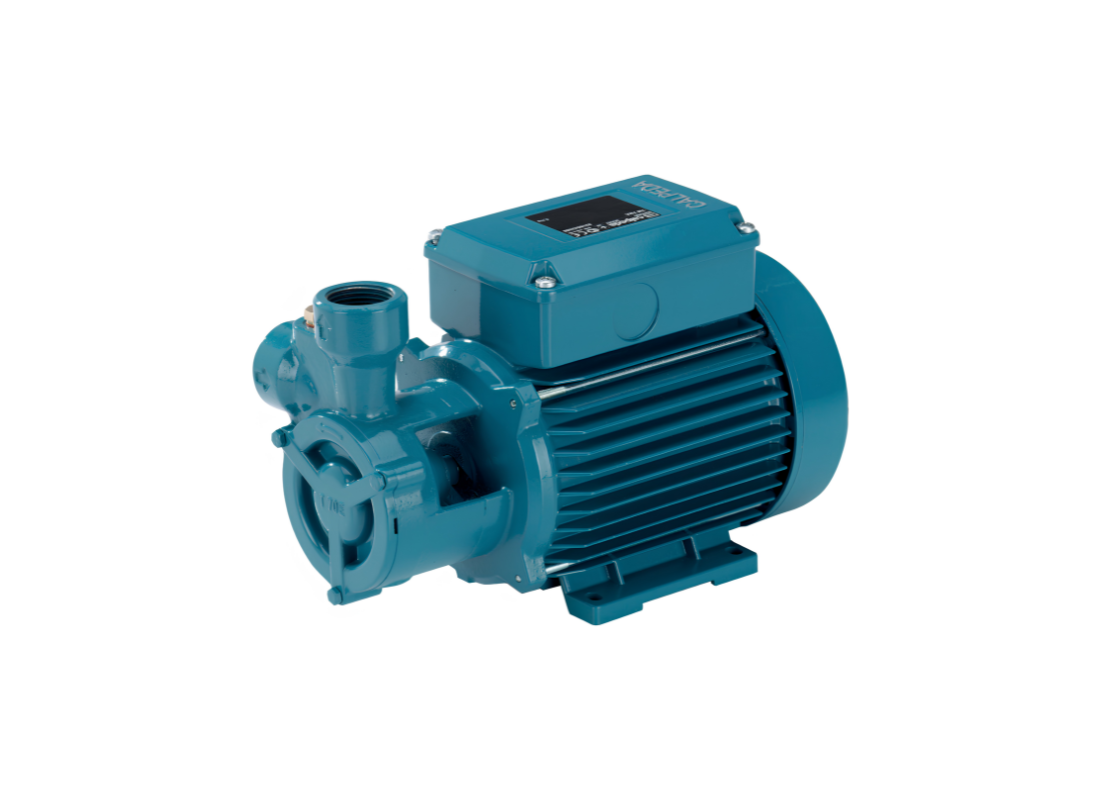

Industrial liquid handling systems operating under elevated pressure conditions require pumps capable of maintaining dependable hydraulic performance during continuous-duty operation. The Calpeda TP 132R peripheral electropump is engineered for these demanding duties through its high-head peripheral hydraulic configuration suitable for industrial boiler systems, pressure boosting installations, technical circulation duties, and high-pressure clean liquid transfer applications.
The three-phase 400V motor delivers 5.5 kW rated output power while generating operating head up to 145 metres with flow performance reaching 80 L/Min. This hydraulic characteristic makes the TP 132R particularly suitable for installations where substantial pressure generation is required alongside moderate-flow transfer performance within industrial utility and technical process systems.
A precision-machined Brass CW617N EN 12167 impeller operates within the peripheral pumping stage to maintain efficient pressure-oriented hydraulic behaviour relative to the pump’s compact dimensions. The close-coupled electropump structure also improves installation flexibility inside industrial pressure systems, technical feed arrangements, circulation assemblies, and compact high-pressure transfer installations.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Cast Iron GJL 200 EN 1561 for dependable mechanical rigidity under continuous-duty service conditions. The rotating assembly incorporates a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. The 2-pole induction motor operates near 2900 rpm with IP54 protection and Class F insulation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-pressure hydraulic arrangement supports dependable pressure transfer and circulation performance across industrial and technical liquid handling systems.
FEATURES
- High-pressure peripheral electropump for industrial boiler applications
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Cast Iron GJL 200 EN 1561 hydraulic construction improves durability
- Compact close-coupled structure for industrial installation layouts
- Steel 1.4104 EN 10088 (AISI 430F) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- 2-pole induction motor operating near 2900 rpm
- IP54 motor protection with Class F insulation system
