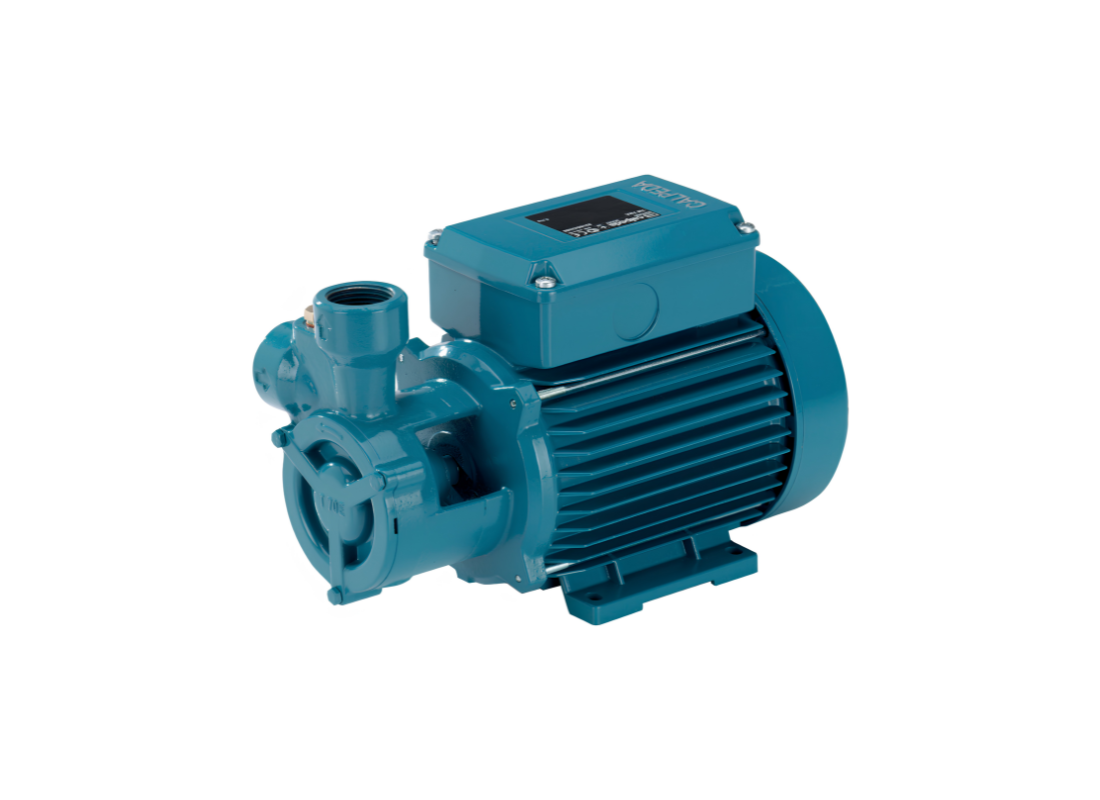

Applications operating under elevated pressure conditions often require compact pumps capable of delivering stable hydraulic performance with relatively low-flow transfer characteristics. The Calpeda TP 80 peripheral electropump is configured specifically for these duties through its high-head peripheral hydraulic arrangement suitable for pressure feed systems, technical circulation duties, compact boosting installations, and controlled clean liquid transfer applications.
The three-phase 400V motor develops 0.75 kW rated output power while producing operating head up to 90 metres with flow performance reaching 31.5 L/Min. This operating characteristic makes the TP 80 particularly suitable for installations where substantial pressure generation is required across compact system layouts and moderate-flow operating conditions.
Its peripheral pumping stage incorporates a precision-machined Brass CW617N EN 12167 impeller designed to maintain efficient pressure-oriented hydraulic behaviour relative to pump dimensions. The close-coupled electropump structure also supports installation flexibility inside compact utility systems, pressure support assemblies, technical circulation arrangements, and feed-related applications requiring elevated head performance.
The hydraulic body assembly incorporates Cast Iron GJL 200 EN 1561 construction across the pump casing, lantern bracket, and casing cover for dependable mechanical rigidity during continuous-duty operation. The rotating assembly includes a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. The 2-pole induction motor operates near 2900 rpm with IP54 protection and Class F insulation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-head hydraulic configuration supports dependable pressure transfer and circulation performance across technical and utility liquid handling systems.
FEATURES- High-head peripheral electropump for compact pressure applications
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Cast Iron GJL 200 EN 1561 hydraulic construction improves durability
- Compact close-coupled structure for restricted installation layouts
- Steel 1.4104 EN 10088 (AISI 430F) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- 2-pole induction motor operating near 2900 rpm
- IP54 motor protection with Class F insulation system
