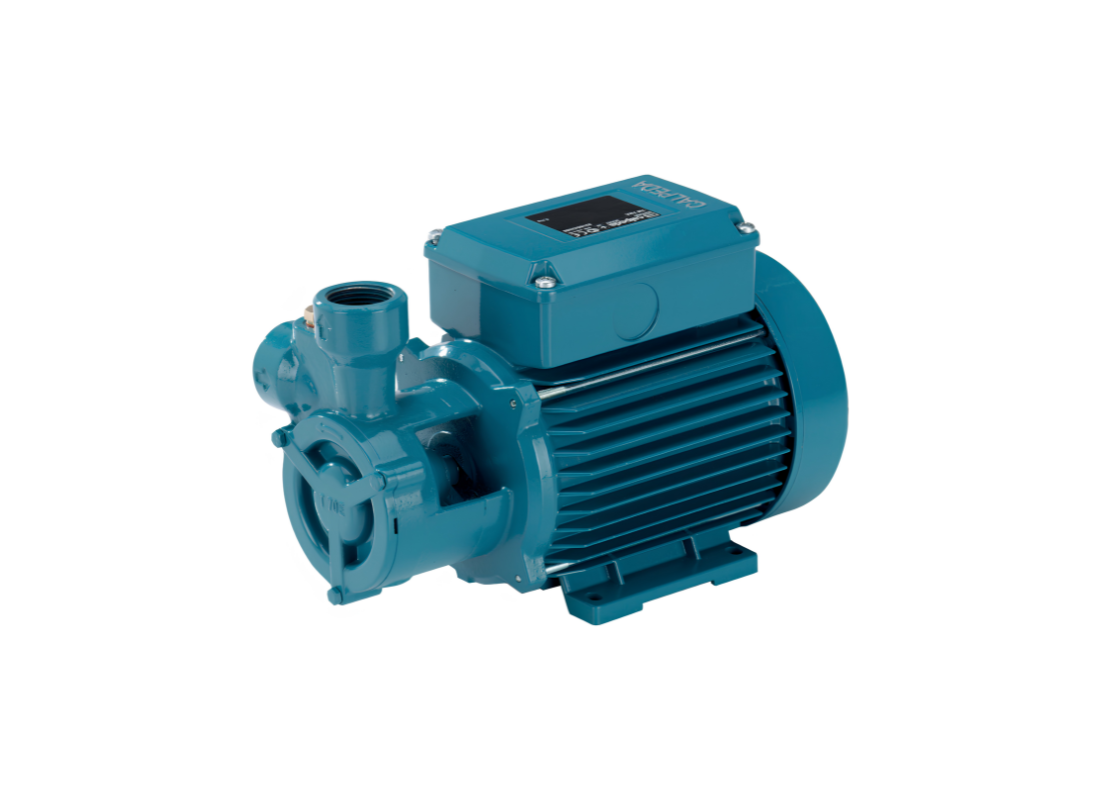

Pressure circulation systems operating under elevated head conditions require compact pumps capable of stable hydraulic performance and dependable continuous-duty operation. The Calpeda TPM 80 peripheral electropump is configured for these duties through its high-head peripheral hydraulic arrangement suitable for pressure boosting installations, compact circulation systems, technical clean liquid transfer, and controlled utility water handling applications.
The single-phase 230V motor operates with 1.01 kW input power while generating operating head up to 90 metres and flow performance reaching 31.5 L/Min. This pressure-oriented hydraulic behaviour makes the TPM 80 suitable for installations where strong pressure delivery is required across moderate-flow circulation and transfer duties.
A precision-machined Brass CW617N EN 12167 impeller operates within the peripheral pumping stage to maintain efficient pressure generation relative to the pump’s compact dimensions. The close-coupled electropump structure also improves installation flexibility inside compact utility systems, pressure transfer arrangements, technical circulation assemblies, and restricted equipment layouts.
Mechanical construction incorporates Cast Iron GJL 200 EN 1561 components across the pump casing, lantern bracket, and casing cover for dependable operating durability. The rotating assembly includes a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. Integrated thermal protection, IP54 motor protection, and Class F insulation support reliable continuous-duty operation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-pressure hydraulic configuration supports dependable circulation and pressure transfer performance across technical and utility liquid handling systems.
FEATURES
- High-head peripheral electropump for compact pressure applications
- Single-phase motor with integrated thermal protector
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Cast Iron GJL 200 EN 1561 hydraulic body construction
- Compact close-coupled structure for restricted installation layouts
- Steel 1.4104 EN 10088 (AISI 430F) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- IP54 motor protection with Class F insulation system
