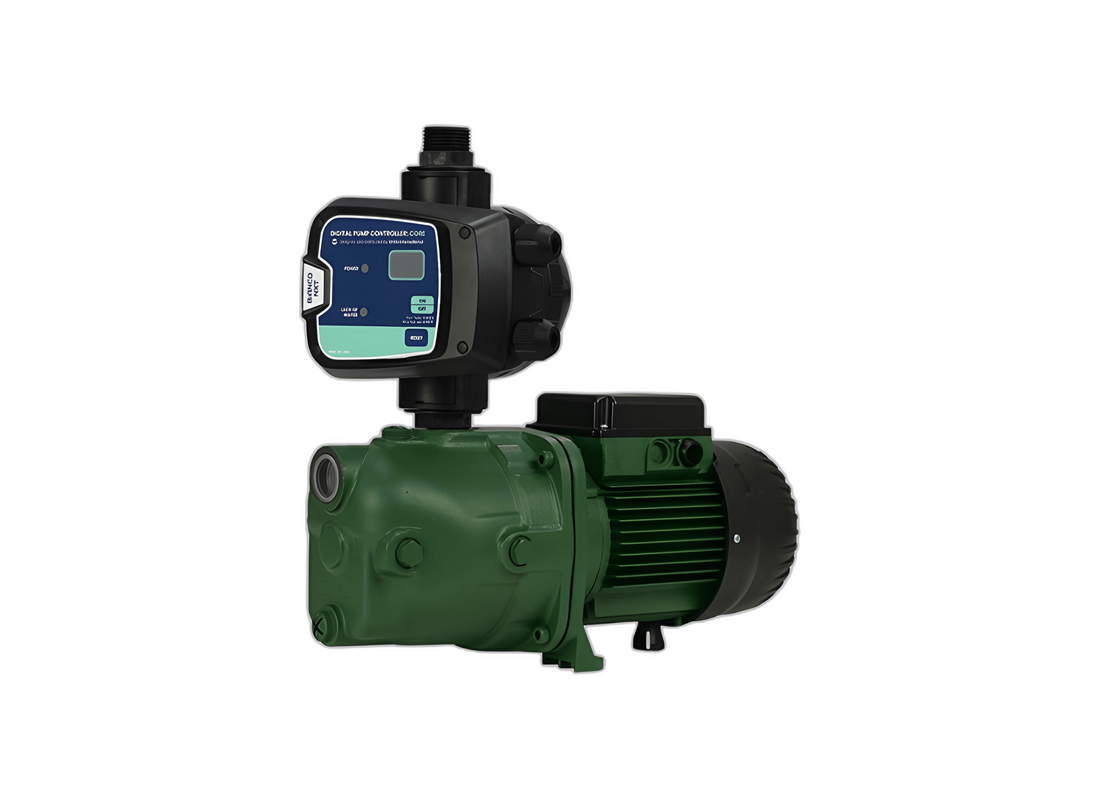

DAB 102CORE Cast Iron NXT Controller Jet Pump for Water Supply with Single Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB 102CORE is a self-priming jet pump system designed for domestic water supply, irrigation, and water transfer applications. It combines the proven JETCOM 102 hydraulic performance with a cast iron pump body and an integrated NXT Core controller for automatic operation.
The pump features a robust cast iron construction for enhanced durability and long service life. The self-priming design allows reliable operation even in the presence of air, making it suitable for suction applications from tanks, wells, and underground sources.
According to the performance data, the pump delivers a maximum head of 53.8 metres and a maximum flow of 60 L/min under defined operating conditions. It supports a suction lift of up to 8 metres, ensuring consistent water delivery across residential and irrigation systems.
The unit is powered by a 0.75 kW motor operating on 220–240 V, 50 Hz supply, with a rated current of 5.1 Amps. The integrated NXT Core controller provides automatic start and stop, dry-run protection, anti-cycling functionality, and stable pressure control for efficient operation.
FEATURES
- NXT Core Controller for automatic pump operation and pressure control
- Dry-run protection to prevent damage during low water conditions
- Anti-cycling system to reduce unnecessary pump operation
- Self-priming capability with suction lift up to 8 m
- Cast iron pump body for strength and durability
- Stable pressure performance for consistent water delivery
- Suitable for residential and irrigation applications
- Compact surface-mounted design for easy installation
- Thermal protection for motor safety
- Designed for continuous and reliable operation
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 54 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.1 Amps |
| Suitable For | Water Supply |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What construction material is used for the pump body?Which suction lift is supported for tank or well supply?What electrical supply and motor rating does it require?What are the maximum flow and head ratings?How is automatic pressure operation managed by this system?
Unlike technopolymer-bodied versions the DAB 102 CORE uses a cast iron pump body for robust domestic supply and irrigation transfer duties.For a suitable tank or well installation DAB 102/CORE can draw water through a suction lift of up to 8 metres.A 0.75 kW motor drives the DAB 102CORE on a 240 V 50 Hz supply and its rated current is 5.1 Amps.The DAB 102-CORE maximum flow is 60 L/min while its maximum head is 53.8 metres.For domestic supply the NXT Core controller on DAB_102_CORE handles automatic starting and stopping and provides dry-run and anti-cycling protection.
