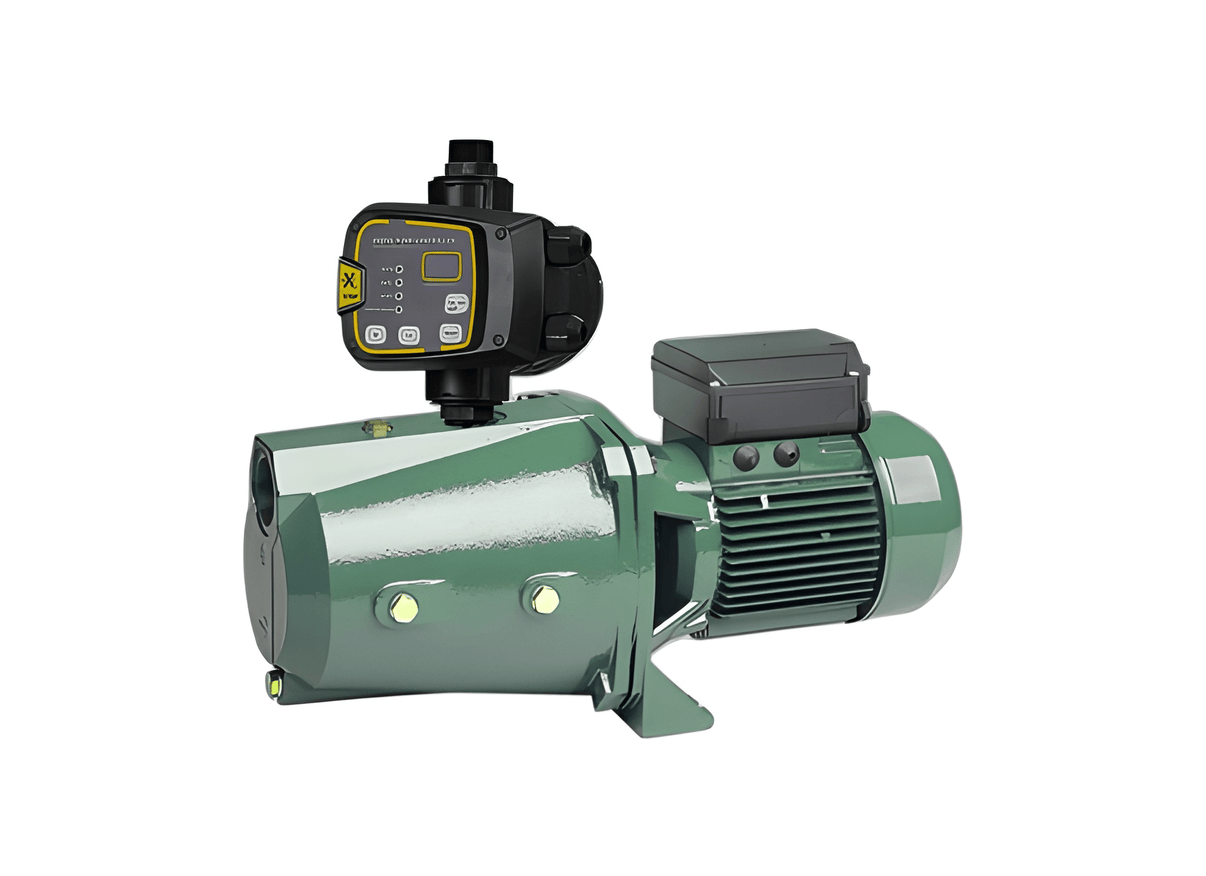

The DAB 200PRO is a surface-mounted self-priming jet pressure pump designed for water transfer, irrigation, and pressure boosting applications. It is suitable for installations where reliable suction performance is required, including drawing water from tanks, rivers, and dams even when air bubbles or light sandy particles are present.
Engineered for domestic water systems, horticulture, and small-scale agricultural use, the pump provides consistent performance across a variety of applications including washdown and light industrial services. The internal jet and venturi system ensures efficient priming and stable operation.
Constructed with a GJL 200 cast iron pump body, the unit offers strong structural durability. The hydraulic components including the impeller, jet, venturi, and diffuser are manufactured from glass reinforced Noryl, providing efficient flow characteristics and resistance to wear. A carbon ceramic nitrile mechanical seal and nitrile O-rings ensure reliable sealing performance.
This model delivers a maximum head of 41 metres and a maximum flow rate of 185 L/Min. The self-priming system provides suction capability of up to 8 metres under optimal conditions, ensuring dependable operation in demanding environments.
Powered by a 1.47 kW single-phase motor operating on 240V, the pump features a TEFC motor design with built-in auto-reset thermal overload protection. It operates at 2800 RPM with an IP44 protection rating, ensuring safe and consistent performance. The nXt PRO dual mode controller enables automatic operation, includes a built-in check valve, and provides dry run protection.
The pump supports a fluid temperature range from 0°C to 35°C and operates at a maximum pressure of 8 bar. It is approved for drinking water applications as per AS/NZ 4020 certification, making it suitable for potable water systems :contentReference[oaicite:0]{index=0}.
FEATURES- Single impeller design delivering up to 185 L/Min flow and 41 m head
- nXt PRO controller with automatic operation and dry run protection
- Integrated check valve for system efficiency
- Self-priming capability with suction up to 8 metres
- GJL 200 cast iron pump body for structural strength
- Glass reinforced Noryl impeller, jet, venturi, and diffuser
- Carbon ceramic nitrile mechanical seal with nitrile O-rings
- 1.47 kW single-phase TEFC motor with thermal overload protection
- IP44 rated motor operating at 2800 RPM
- Maximum operating pressure up to 8 bar
- Approved for drinking water (AS/NZ 4020)
- Suitable for clean water with light sandy impurities
