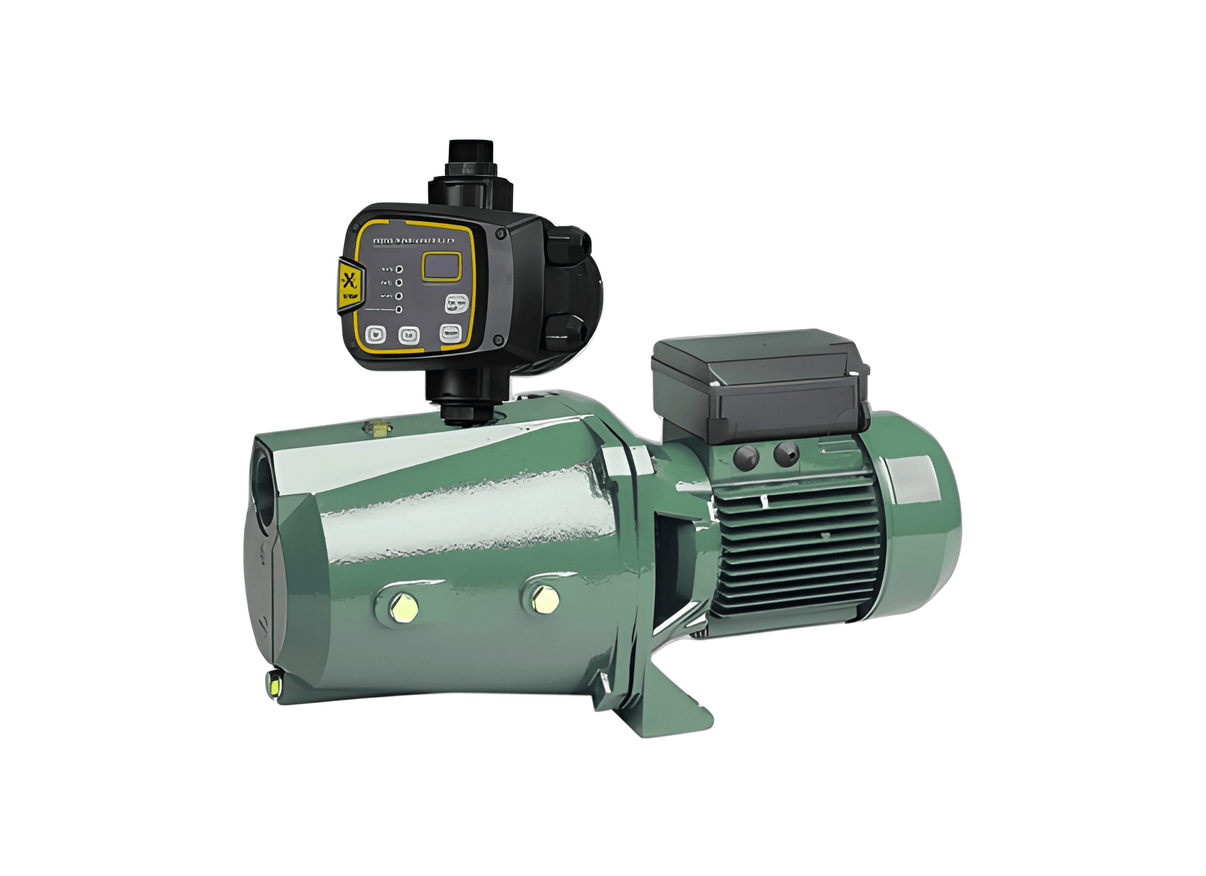

The DAB 300PRO is a surface-mounted self-priming jet pressure pump designed for high-capacity water transfer, irrigation, and pressure boosting applications. It is well suited for installations requiring dependable suction performance, including pumping from tanks, rivers, and dams where air bubbles or light sandy particles may be present.
Ideal for domestic water supply, horticulture, and small-scale agricultural systems, the pump also supports washdown and light industrial applications. The integrated jet and venturi system ensures stable priming and efficient operation across varying conditions.
Constructed with a GJL 200 cast iron pump body, the unit provides excellent mechanical strength and durability. The impeller, jet, venturi, and diffuser are manufactured from glass reinforced Noryl, delivering efficient hydraulic performance and resistance to wear. A carbon ceramic nitrile mechanical seal and nitrile O-rings ensure reliable sealing and long-term operation.
This model delivers a maximum head of 51 metres and a maximum flow rate of 185 L/Min. The self-priming system supports suction capability up to 8 metres under optimal conditions, ensuring consistent performance in demanding environments.
Powered by a 2.2 kW single-phase motor operating on 240V, the pump features a TEFC motor design with auto-reset thermal overload protection. Operating at 2800 RPM with an IP44 rating, it ensures safe and reliable operation. The nXt PRO dual mode controller enables automatic operation, incorporates a check valve, and provides dry run protection.
The pump supports a fluid temperature range from 0°C to 35°C and operates at a maximum pressure of 8 bar. It is approved for drinking water applications as per AS/NZ 4020 certification, making it suitable for potable water systems :contentReference[oaicite:0]{index=0}.
FEATURES- Single impeller design delivering up to 185 L/Min flow and 51 m head
- nXt PRO controller with automatic operation and dry run protection
- Integrated check valve for improved system efficiency
- Self-priming capability with suction up to 8 metres
- GJL 200 cast iron pump body for high durability
- Glass reinforced Noryl impeller, jet, venturi, and diffuser
- Carbon ceramic nitrile mechanical seal with nitrile O-rings
- 2.2 kW single-phase TEFC motor with thermal overload protection
- IP44 rated motor operating at 2800 RPM
- Maximum operating pressure up to 8 bar
- Approved for drinking water (AS/NZ 4020)
- Suitable for clean water with light sandy impurities
