SKU: 701433

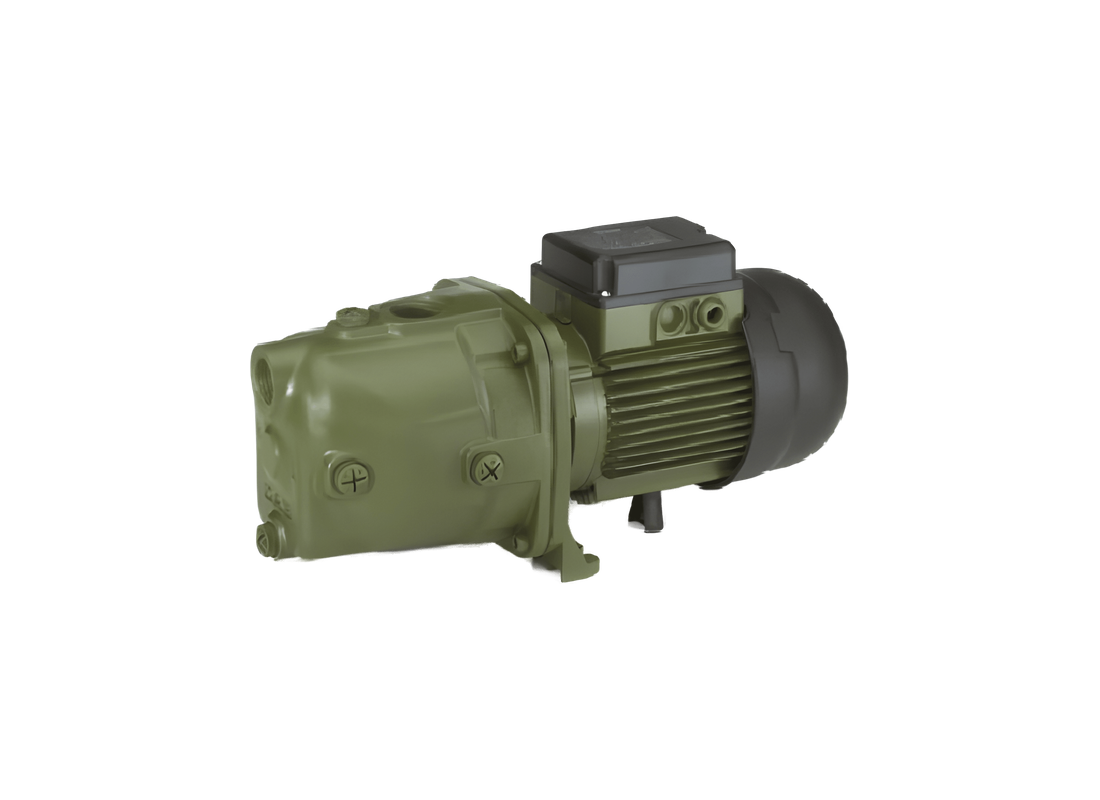

DAB 62M Cast Iron Self-Priming Jet Pump Water Transfer Pump with Single Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB 62M is a self-priming jet pump designed for water transfer, garden irrigation, and household pumping applications. This surface-mounted bare pump offers flexible installation where external pressure control systems or switches are required.
The pump is constructed with a robust cast iron body that provides strength and durability for long-term operation. The internal hydraulic design enables efficient water movement, while the self-priming capability allows the pump to operate effectively even when air is present in the suction line.
Based on the performance data, the pump delivers a maximum head of 42 metres and a maximum flow of 45 L/min. It supports suction lift up to 8 metres, making it suitable for drawing water from tanks, wells, and below-ground sources.
The unit operates with a 0.44 kW motor on a 220–240 V, 50 Hz power supply, drawing a rated current of 3.1 Amps. The motor is designed for continuous duty and includes thermal protection for reliable performance.
FEATURES- Self-priming operation for suction-based applications
- Cast iron construction for structural strength
- Stable pressure output for consistent flow delivery
- Suitable for integration with external control systems
- Efficient hydraulic design for reduced energy use
- Thermal protection integrated in motor
- Compact surface-mounted installation
- Designed for continuous operation conditions
- Low maintenance pump configuration
- Reliable performance across domestic applications
SPECIFICATIONS
| Max Flow | 45 L/Min |
| Max Head | 42 m |
| Power | 0.44 kW / 240v |
| Rated Current | 3.1 Amps |
| Suitable For | Domestic Transfer |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this pump lift water from a source?Which material provides structural strength to the pump body?How is pressure control managed in this bare pump?What are the maximum head and flow ratings?What motor output and rated current does it use?
From suitable tanks or wells DAB 62_M supports suction lift up to 8 metres for household water supply and garden irrigation.The main housing of DAB 62 M uses cast iron which provides structural strength for water transfer and domestic pumping duties.For automatic system control 62-M can be installed with an external pressure switch because the bare pump has no integrated controller.Performance for DAB 62/M are a maximum head of 42 metres and a maximum flow of 45 L/min.A 0.44 kW motor powers DAB 62M from a 220–240 V 50 Hz supply and draws a rated current of 3.1 Amps.
