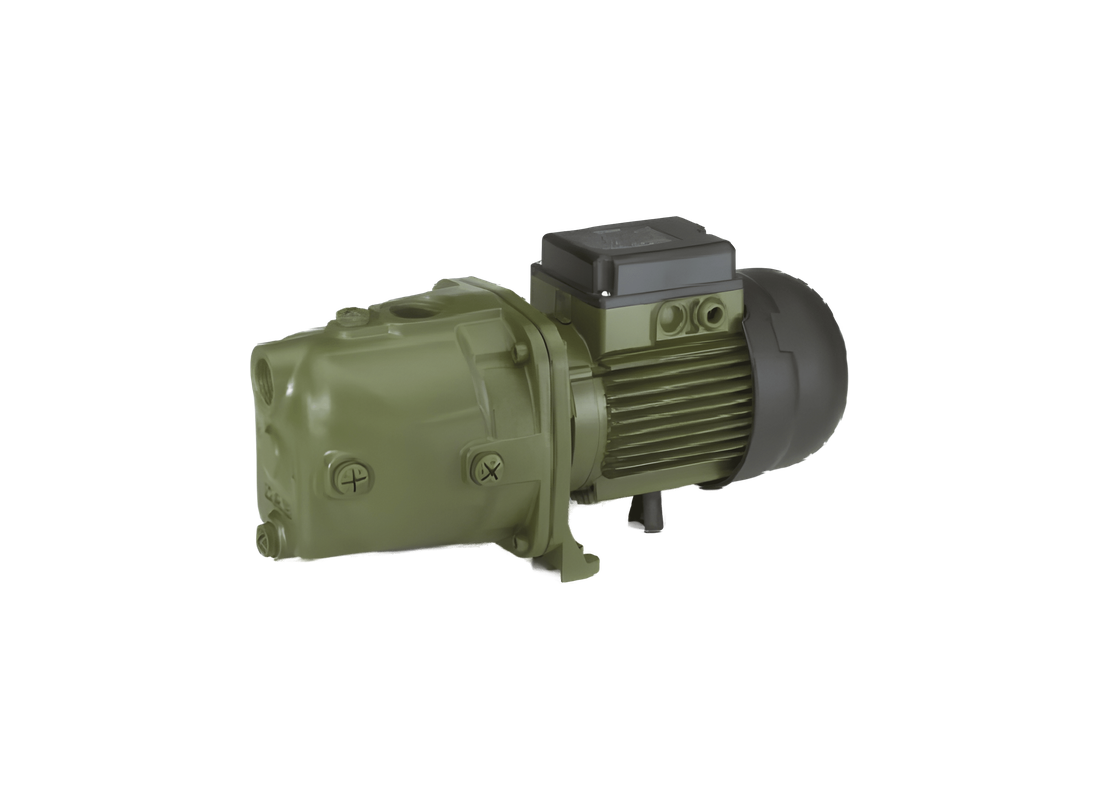

DAB 82M Cast Iron Self-Priming Jet Pump Garden Irrigation Pump with Single Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB 82M is a self-priming jet pump designed for garden irrigation, residential water movement, and general pumping applications. This surface-mounted bare pump allows flexible installation with external pressure switches or control systems.
The pump is built with a durable cast iron body that provides strength and long service life. Its self-priming capability enables efficient operation even in the presence of air, making it suitable for suction from tanks, wells, and underground water sources.
Based on the performance data, the pump delivers a maximum head of 47 metres and a maximum flow of 60 L/min. It supports suction lift up to 8 metres, ensuring stable performance across residential and irrigation usage.
The unit operates with a 0.6 kW motor on a 220–240 V, 50 Hz power supply, drawing a rated current of 3.8 Amps. The motor is designed for continuous duty and includes thermal protection for safe operation.
FEATURES- Self-priming design suitable for suction-based applications
- Cast iron body ensures durability and structural strength
- Efficient hydraulic performance for consistent output
- Compatible with external pressure control systems
- Thermal protection integrated for motor safety
- Compact surface-mounted installation design
- Low maintenance construction for long-term use
- Reliable performance across irrigation applications
- Stable flow delivery under varying demand
- Designed for continuous operation conditions
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 47 m |
| Power | 0.6 kW / 240v |
| Rated Current | 3.8 Amps |
| Suitable For | Garden Irrigation |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which construction material is used for the main body?What motor power and rated current apply to this model?How much suction lift is available for water intake?What are the maximum flow and head figures?Which applications suit this surface-mounted bare jet pump?
Cast iron forms the main body of DAB 82_M and provides structural strength for residential water movement and regular garden irrigation.The 0.6 kW motor in DAB 82 M operates on a 220–240 V 50 Hz supply and draws 3.8 Amps rated current.Suitable tanks or wells can supply water through suction lift up to 8 metres when using DAB 82-M for household or irrigation needs.The performance for DAB 82/M are a maximum flow of 60 L/min and a maximum head of 47 metres.For garden irrigation and residential water movement DAB 82M offers self-priming operation and supports external pressure switches or suitable control systems.
