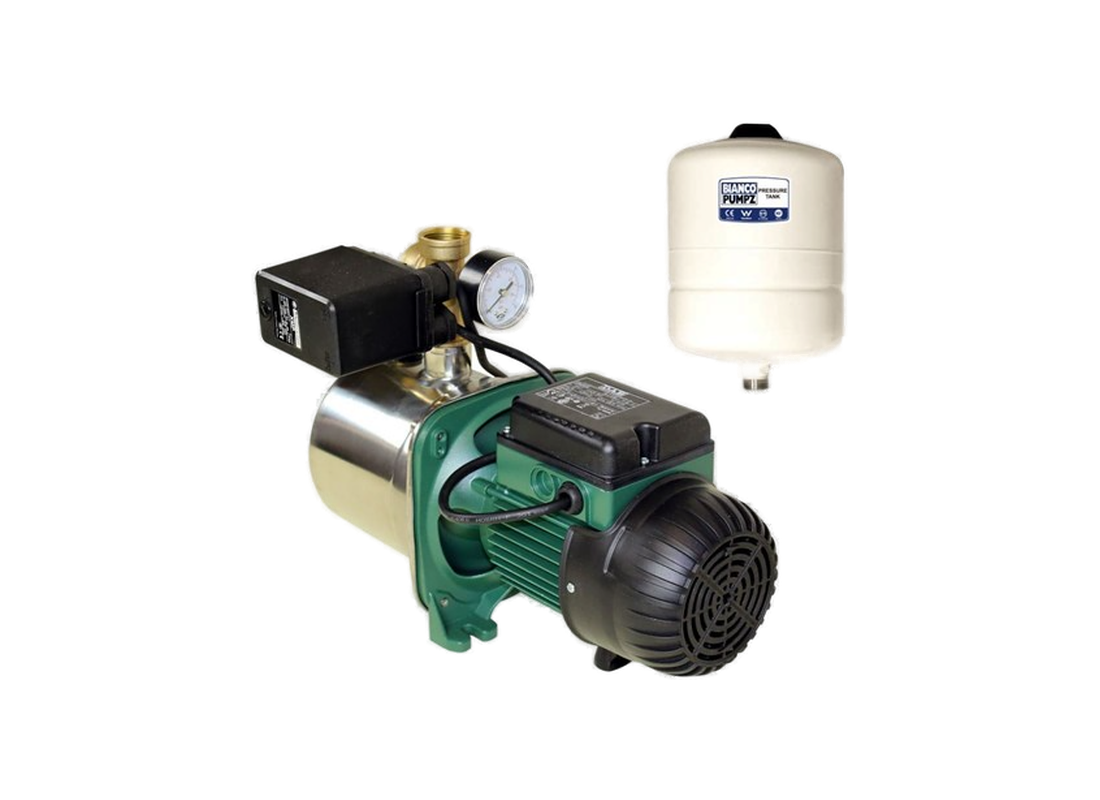

DAB 82MP-8V Stainless Steel Self-Priming Jet Domestic Water Pump with 8L Tank Technopolymer Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB 82MP-8V is a surface-mounted self-priming jet pump system designed for pressure boosting, tank filling, and domestic water applications. Supplied with an integrated pressure switch and an 8-litre pressure tank, this unit provides automatic operation, stable pressure output, and reduced pump cycling for improved efficiency and reliability.
Constructed with a stainless steel pump body, seal holder, and wear ring, the pump offers excellent corrosion resistance and long service life. The internal hydraulic components including the impeller, diffuser, and venturi are manufactured from technopolymer, ensuring efficient performance and smooth water flow. A carbon/ceramic mechanical seal enhances durability and dependable operation.
This model delivers a maximum head of 47 metres and a maximum flow rate of 60 L/Min, making it suitable for maintaining consistent pressure across residential systems. Its self-priming capability allows efficient suction even in the presence of air, with a suction depth of up to 8 metres under optimal conditions.
Powered by a 0.6 kW single-phase motor operating on 240V, the pump includes built-in thermal protection for safe and reliable operation. The integrated pressure switch combined with the 8L tank ensures automatic start/stop functionality while minimizing frequent cycling and pressure fluctuations.
FEATURES- 8-litre pressure tank for smoother pressure delivery and reduced cycling
- Integrated pressure switch for automatic pump control
- Self-priming design capable of handling air in suction line
- Consistent pressure output for residential applications
- Stainless steel construction for corrosion resistance
- Technopolymer hydraulic components for efficient performance
- Carbon/ceramic mechanical seal for long service life
- Thermal motor protection for safe operation
- Low-noise motor with permanently lubricated bearings
- Surface-mounted design for easy installation
- Suitable for clean, non-aggressive and non-viscous liquids
SPECIFICATIONS
| Max Flow | 60 L/Min |
| Max Head | 47 m |
| Power | 0.6 kW / 240v |
| Rated Current | 3.8 Amps |
| Suitable For | Domestic Supply |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What tank capacity is included to reduce pump cycling?Which electrical protection is included with the motor?What are the maximum flow and head ratings?Which materials are used in the pump body and hydraulic parts?How far can this self-priming pump draw water?
The integrated pressure switch and 8-litre tank help 82MP_8V stabilize household pressure and limit frequent pump cycling during water demand.Built-in thermal protection accompanies the 0.6 kW single-phase motor in 82MP 8V which operates on a 240 V supply for household pumping.For 82MP-8V the maximum flow is 60 L/min and the maximum head is 47 metres under defined operating conditions.Stainless steel body components and technopolymer hydraulic parts are used in 82MP/8V with a carbon ceramic mechanical seal for sealing reliability.Water can be drawn from a suction depth up to 8 metres by 82MP8V and the design can handle air in the suction line.
