SKU: 808452

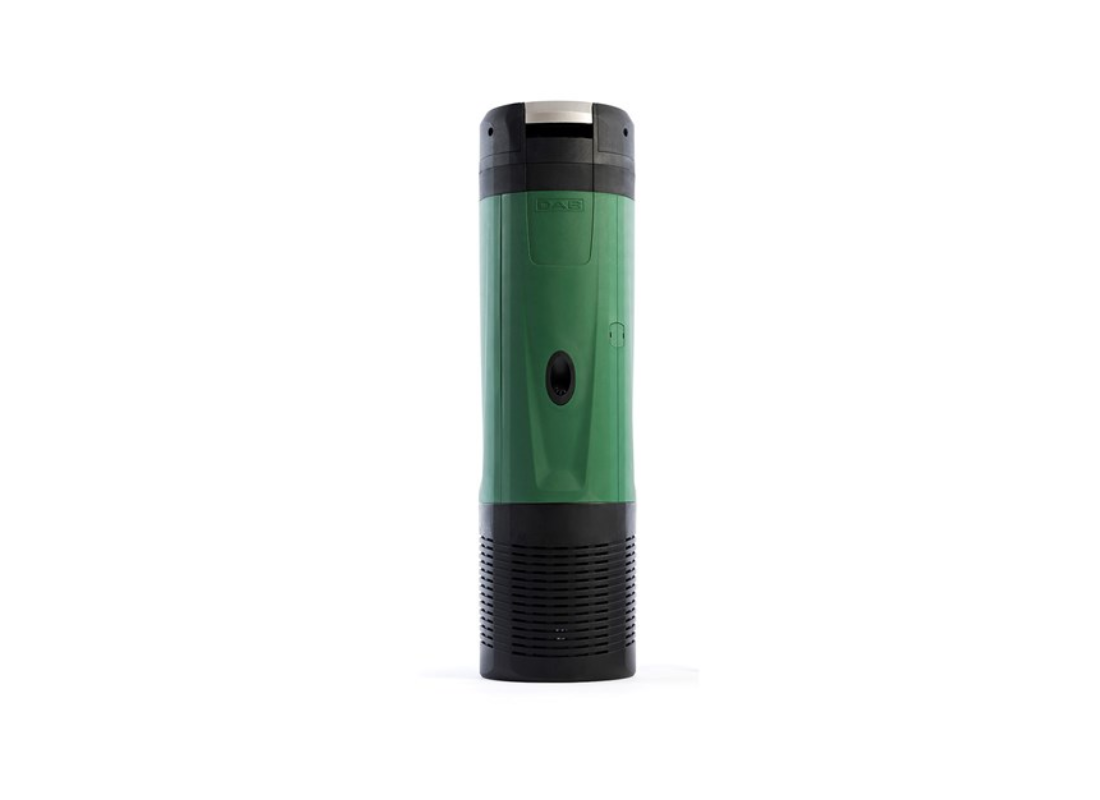

DAB E.SYBOX DIVER 55/120 VFD Submersible Multistage Pump with DConnect Box 2
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB E.SYBOX DIVER 55/120 is a variable-speed electronic submersible multistage pump designed for domestic water supply, rainwater harvesting and irrigation systems. Featuring integrated inverter technology, the pump automatically adjusts motor speed to maintain constant pressure while improving energy efficiency and reducing pump wear. Its compact 7-inch multistage design allows installation in wells, tanks or cisterns while delivering reliable residential water pressure.
Powered by a 1.25 kW (approx. 1.3 HP) single-phase motor, the pump delivers up to 120 litres per minute with a maximum head of 55 metres. The built-in variable frequency drive allows the pump to start and stop automatically according to system demand while maintaining adjustable constant pressure between approximately 1 and 5.5 bar.
The system is supplied with the DConnect Box 2, which communicates with the pump through the power cable using PLC technology. This enables remote monitoring and control through the DAB mobile app, allowing users to check system pressure, alarms and tank water levels directly from a smartphone or tablet.
FEATURES
- 1.3HP (1.25kW) single phase motor (240V)
- Maximum flow: 120 litres per minute
- Maximum head: 55 metres
- Variable speed inverter technology for constant pressure
- 7" multistage submersible pump design
- Integrated expansion vessel
- Built-in non-return valve
- Dry-run protection with electronic control system
- DConnect Box 2 smart connectivity and remote monitoring
- 1 1/4" outlet connection
- Designed for clean water supply and rainwater systems
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 55 m |
| Power | 1.25 kW / 240v |
| Suitable For | Domestic Water Supply / Rainwater Harvesting / Irrigation |
| Body Material | Technopolymer |
| Liquid Temperature | 0°C to +50°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is constant pressure adjusted to match system demand?What equipment enables remote monitoring through a mobile app?Can this submersible pump be used for rainwater systems?Which built-in features support operation and protection?What are the maximum flow and head specifications?
The inverter adjusts motor speed to maintain pressure between approximately 1 and 5.5 bar on the E.SYBOX_DIVER_55_120 during water demand.The supplied DConnect Box 2 communicates through the power cable using PLC technology, enabling remote monitoring of the E.SYBOX DIVER 55 120.The DAB E.SYBOX-DIVER-55-120 is designed for domestic water supply rainwater harvesting and irrigation, including suitable tank or cistern installations.The E.SYBOX/DIVER/55/120 includes an expansion vessel a non-return valve and electronic dry-run protection for controlled submersible water supply.Maximum flow for the E.SYBOXDIVER55120 is 120 L/min while Its maximum head is 55 metres.
