SKU: 808421

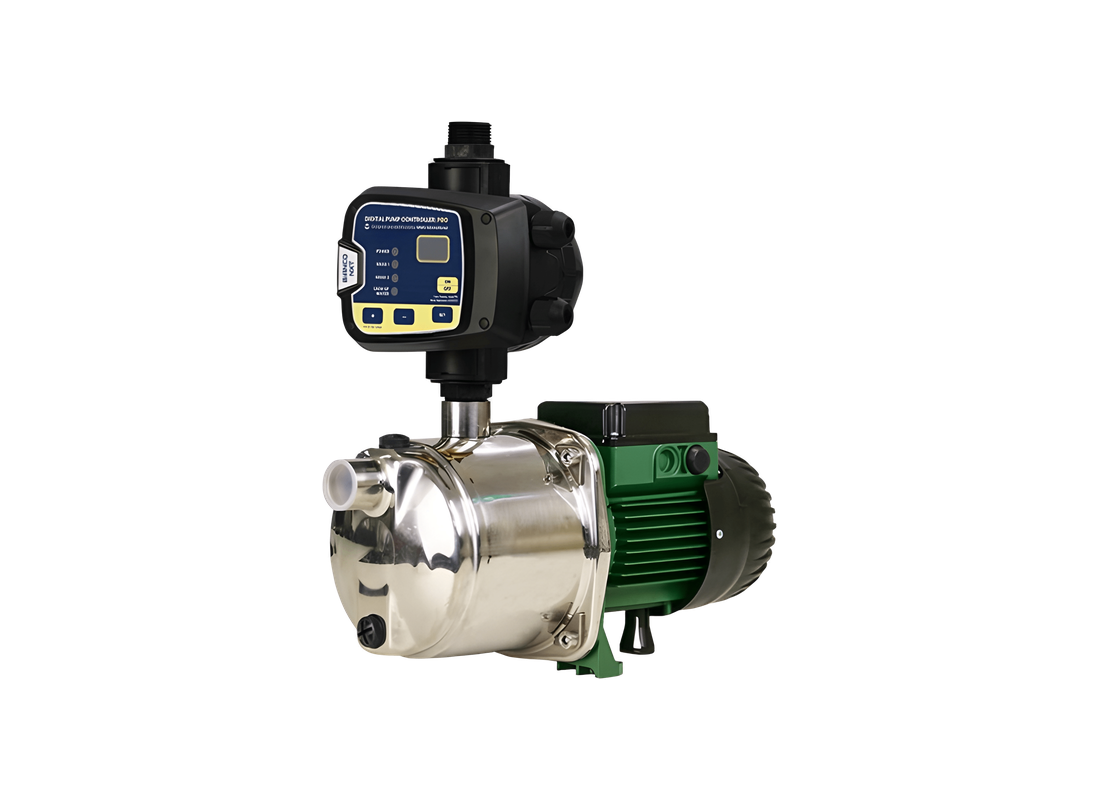

DAB EUROINOX30/50NXTP Stainless Steel Multistage Pump for Pressure Boosting with NXT PRO
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
The DAB EUROINOX30/50NXTP is a stainless steel horizontal multistage pump system designed for pressure boosting, household water supply, irrigation, and general water transfer applications. It combines a high-efficiency EUROINOX multistage pump with the advanced BiANCO NXT PRO controller for automatic and intelligent pressure management.
The pump features a stainless steel pump body with a die-cast aluminium motor support and AISI 304 stainless steel shaft. The multistage hydraulic design ensures higher pressure generation with stable and quiet operation, making it ideal for residential and light commercial use.
Based on the performance data, the pump operates within a range up to 80 L/min and achieves a maximum head of approximately 42.2 metres under defined operating conditions. The design supports excellent suction capability even in the presence of air bubbles.
The unit is powered by a 0.75 kW motor operating on 220–240 V, 50 Hz supply. The integrated NXT PRO controller provides automatic start and stop, dry-run protection, anti-cycling functionality, overload protection, and adjustable pressure control for consistent system performance.
FEATURES
- Horizontal multistage design for high pressure output
- Stainless steel pump body for corrosion resistance
- AISI 304 stainless steel shaft for durability
- Technopolymer impellers and diffusers for efficient operation
- Carbon/ceramic mechanical seal for reliable sealing
- Die-cast aluminium motor support for structural strength
- NXT PRO controller with dual operating modes
- Dry-run protection with automatic restart functionality
- Anti-cycling and overload protection for system safety
- Quiet operation suitable for residential environments
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 42 m |
| Power | 0.75 kW / 240v |
| Rated Current | 3.9 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which applications are suited to this multistage pump system?What materials are used for the pump body and shaft?What maximum flow and head values are provided?Which controller protections are included in this system?What hydraulic design supports higher pressure generation?
Pressure boosting and household supply suit EUROINOX30_50NXTP which combines a horizontal multistage pump system with NXT PRO control for domestic installations.Stainless steel forms the pump body and AISI 304 stainless steel forms the shaft while EUROINOX30 50NXTP uses aluminium motor support.Performance figures for EUROINOX30-50NXTP include flow up to 80 L/min and a maximum head of approximately 42.2 metres.The NXT PRO controller on EUROINOX30/50NXTP provides automatic start-stop operation plus dry-run anti-cycling and overload protection with adjustable pressure control.A horizontal multistage hydraulic design supports higher pressure generation and quiet operation in EUROINOX3050NXTP for residential and light commercial use.
