DAB EUROINOX40/50NXTP Stainless Steel Multistage Pump for Pressure Boosting with NXT PRO
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview

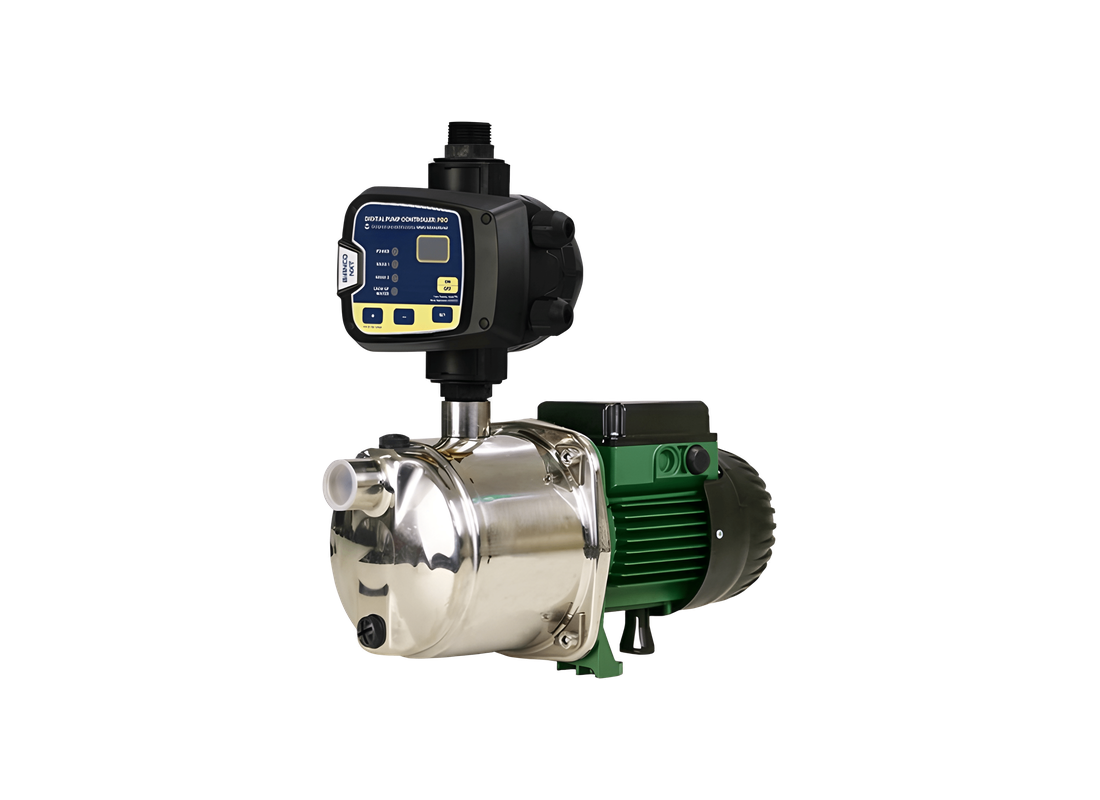

The DAB EUROINOX40/50NXTP is a stainless steel horizontal multistage pump system designed for pressure boosting, domestic water supply, and irrigation applications. It integrates a high-efficiency EUROINOX multistage pump with the advanced BiANCO NXT PRO controller for automatic and stable pressure control.
The pump features a stainless steel pump body with a die-cast aluminium motor support and AISI 304 stainless steel shaft. The multistage hydraulic design ensures high pressure output with smooth and quiet operation, making it suitable for residential and light commercial systems.
Based on the performance data, the pump delivers a maximum head of approximately 57.7 metres and a maximum flow of approximately 80 L/min under defined operating conditions. The design provides excellent suction capability even in the presence of air bubbles.
The unit operates with a 0.75 kW motor on a 220–240 V, 50 Hz supply, drawing a rated current of 5.3 Amps. The integrated NXT PRO controller enables automatic start and stop, dry-run protection, anti-cycling functionality, and adjustable pressure control for consistent performance.
FEATURES
- Horizontal multistage design for high pressure performance
- Stainless steel pump body for corrosion resistance
- AISI 304 stainless steel shaft for durability
- Technopolymer impellers and diffusers for efficient operation
- Carbon/ceramic mechanical seal for reliable sealing
- Stainless steel wear ring for improved longevity
- Die-cast aluminium motor support for structural strength
- NXT PRO controller with dual operating modes
- Dry-run and anti-cycling protection for system safety
- Quiet operation suitable for residential installations
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 57 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.3 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What controller manages automatic pressure regulation in this system?Which materials are used for the pump body and shaft?What are the maximum flow and head figures?Which hydraulic design supports high-pressure water delivery?What motor rating and electrical supply does it use?
Built into the BiANCO NXT PRO controller EUROINOX40_50NXTP are automatic start and stop functions plus dry-run and anti-cycling protection for safe operation.The stainless steel body is paired with an AISI 304 stainless steel shaft and die-cast aluminium motor support in EUROINOX40 50NXTP.Performance data gives EUROINOX40-50NXTP a maximum flow of approximately 80 L/min and a maximum head of approximately 57.7 metres.A horizontal multistage hydraulic design helps EUROINOX40/50/NXTP produce high pressure output with smooth and quiet operation for residential and light commercial systems.The 0.75 kW motor in EUROINOX4050NXTP operates on a 220–240 V 50 Hz supply and draws a rated current of 5.3 Amps.
