SKU: 808423
DAB EUROINOX40/80NXTP Stainless Steel Multistage Pump for Pressure Boosting with NXT PRO
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview

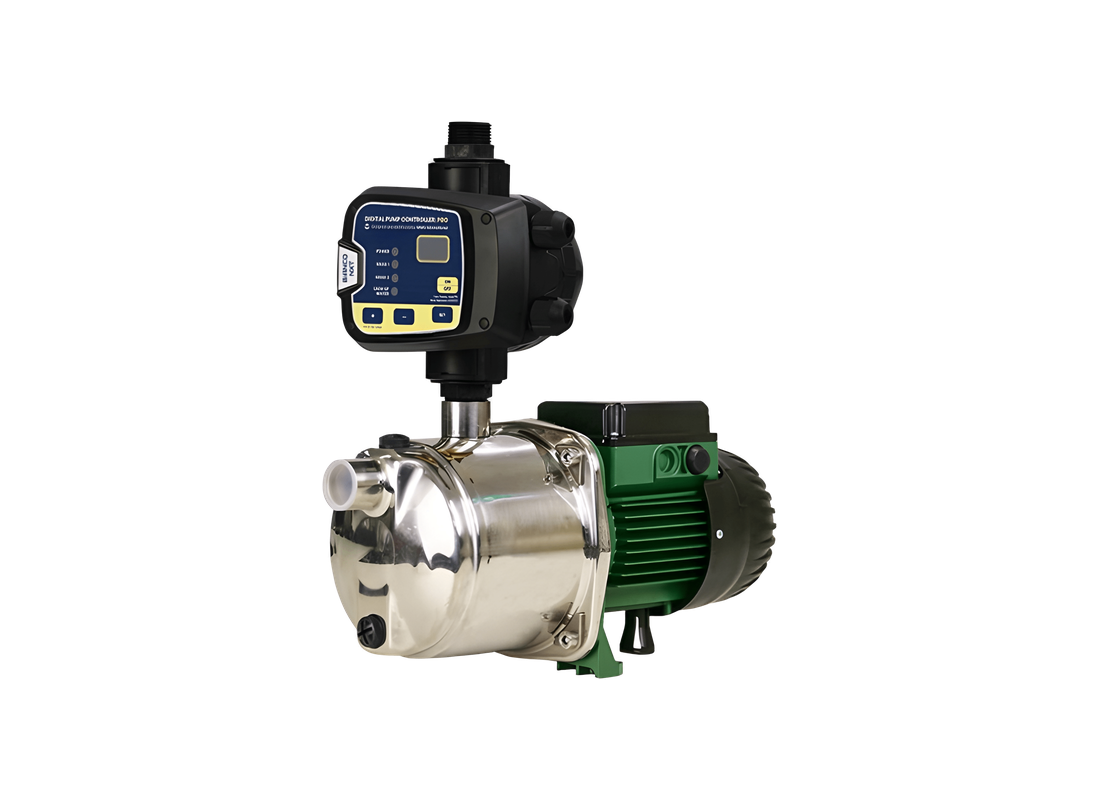

The DAB EUROINOX40/80NXTP is a stainless steel horizontal multistage pump system designed for pressure boosting, domestic water supply, and irrigation applications. It combines a high-efficiency EUROINOX multistage pump with the advanced BiANCO NXT PRO controller for automatic and stable pressure control.
The pump features a stainless steel pump body with a die-cast aluminium motor support and AISI 304 stainless steel shaft. The multistage hydraulic design enables high pressure output with smooth and quiet operation, making it suitable for residential and light commercial installations.
Based on the performance data, the pump delivers a maximum head of 59 metres and a maximum flow of 120 L/min under defined operating conditions. The design ensures efficient performance with reliable suction capability even in the presence of air bubbles.
The unit operates with a 1.0 kW motor on a 220–240 V, 50 Hz supply, drawing a rated current of 6.5 Amps. The integrated NXT PRO controller provides automatic start and stop, dry-run protection, anti-cycling functionality, and adjustable pressure control for consistent system performance.
FEATURES- Horizontal multistage design for high pressure output
- Stainless steel pump body for corrosion resistance
- AISI 304 stainless steel shaft for durability
- Technopolymer impellers and diffusers for efficient operation
- Carbon/ceramic mechanical seal for reliable sealing
- Stainless steel wear ring for extended service life
- Die-cast aluminium motor support for structural stability
- NXT PRO controller with dual operating modes
- Dry-run and anti-cycling protection for system safety
- Quiet operation suitable for residential environments
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 59 m |
| Power | 1 kW / 240v |
| Rated Current | 6.5 Amps |
| Suitable For | Pressure Boosting |
| Body Material | Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the system protect against dry running and cycling?What maximum head and flow values are provided?Which construction materials are used in the hydraulic assembly?What electrical supply and motor output are required?Why is this pump suited to residential pressure boosting?
Dry-run protection and anti-cycling functionality are built into the NXT PRO controller on EUROINOX40_80NXTP alongside automatic start and stop control for system safety.For EUROINOX40 80NXTP the maximum head is 59 metres and the maximum flow is 120 L/min under defined operating conditions.A stainless steel pump body and AISI 304 shaft are combined with a die-cast aluminium motor support in EUROINOX40-80NXTP construction.The EUROINOX40/80/NXTP uses a 1.0 kW motor on a 220–240 V 50 Hz supply and draws 6.5 Amps.Its horizontal multistage design supports high pressure delivery with quiet operation while the NXT PRO controller maintains automatic pressure control in EUROINOX4080NXTP.
