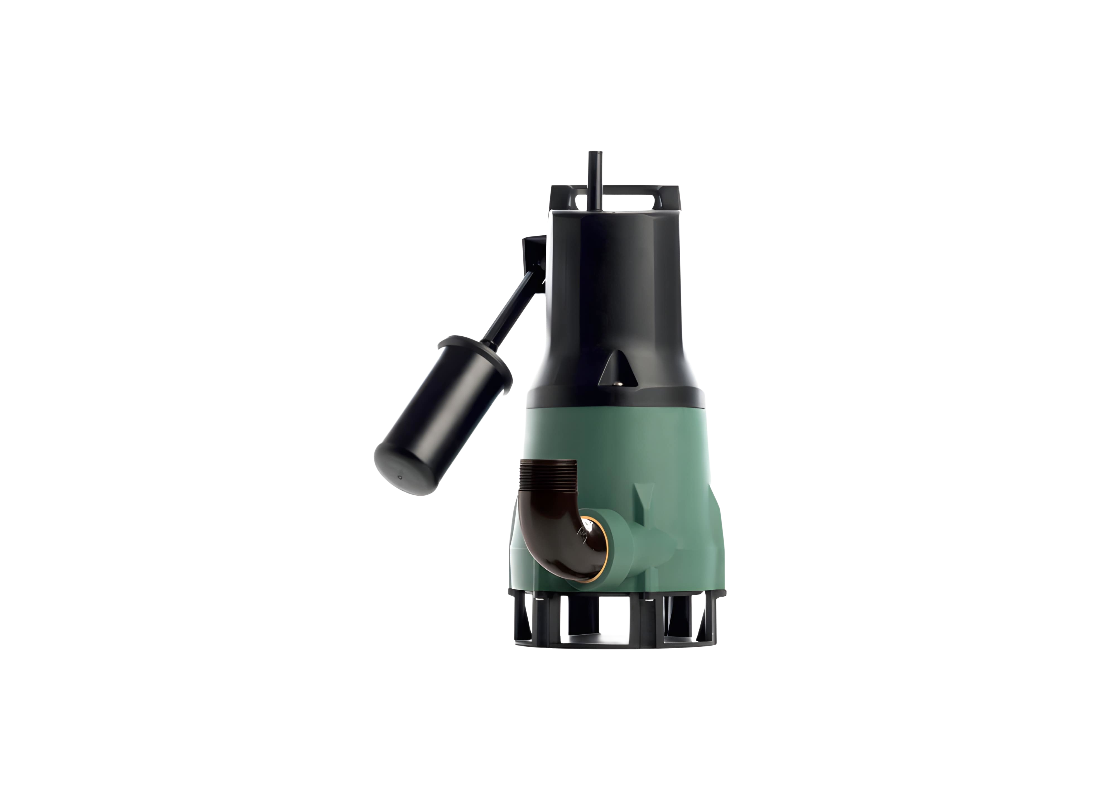

Managing rainwater, grey water and light wastewater in residential environments is simplified with the DAB-FEKA300A submersible drainage pump. Designed for automatic operation using an integrated float switch, this compact unit is suitable for both fixed installations and portable emergency drainage duties. Its more reliable, resistant and ergonomic to use make it ideal for flooded basements, collection pits, tanks and other domestic applications where dependable water removal is required.
Hydraulic performance is delivered by a 0.22 kW single-phase motor operating on a 240v supply with a rated current of 1.9 Amps. The pump achieves a maximum flow rate of 200 L/Min and a maximum head of 6.4 m, providing reliable lifting capability for domestic drainage systems. Continuous-duty operation is supported by the asynchronous submersible motor, ensuring stable performance during prolonged dewatering cycles when fully submerged.
Efficient liquid handling is achieved through a technopolymer vortex impeller designed to process wastewater containing suspended solids. The hydraulic design provides a free passage of up to 25 mm, allowing rainwater and light wastewater to pass through with reduced risk of blockage. This configuration supports dependable operation in residential drainage applications where debris and suspended particles may be present.
Structural durability is provided by a technopolymer pump body and suction grille combined with a stainless steel motor casing. The rotor shaft is manufactured from AISI 431 stainless steel for enhanced resistance to corrosion, while a triple ring seal operating in an oil bath protects the motor from liquid ingress. Thermal protection is integrated into the motor assembly and the IP68 enclosure rating supports submerged operation in demanding domestic environments.
Features
- Integrated float switch enables automatic operation based on changing water levels.
- Technopolymer vortex impeller provides reliable wastewater transfer with 25 mm solids passage.
- Continuous-duty asynchronous motor supports extended drainage applications when submerged.
- Triple ring seal operating in an oil bath protects the motor against liquid ingress.
- Technopolymer pump body and suction grille offer corrosion-resistant construction.
- AISI 304 stainless steel motor casing provides durability in submerged service.
- AISI 431 stainless steel rotor shaft enhances resistance to corrosive attack.
- Suitable for fixed or portable installation in domestic drainage and rainwater applications.
