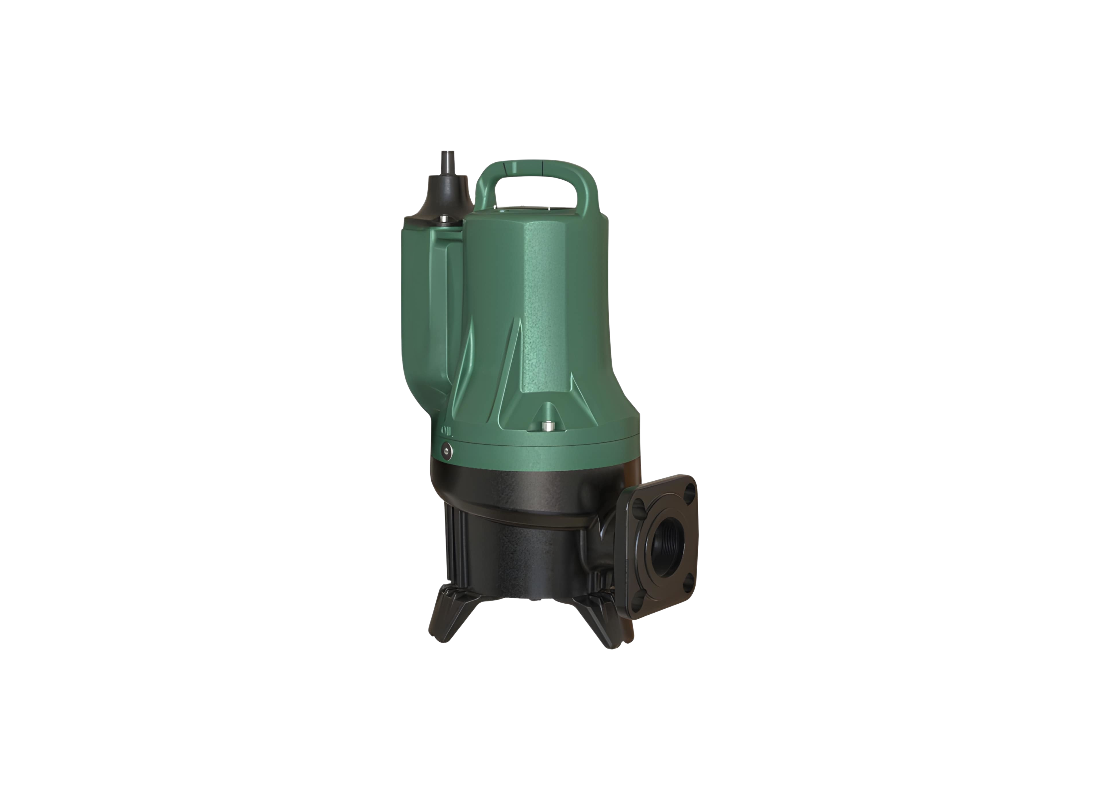

DAB FEKAFXV20.15MEX Cast Iron 50mm Free Passage Sewage Pump for Effluent Management with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Reliable lifting of wastewater containing solids and long fibers is the primary application for the DAB-FEKAFXV20.15MEX. This submersible sewage pump is designed for commercial building services where untreated sewage must be moved from low-level pits to elevated discharge mains. Certified to EN 12050-1 standards, it provides a dependable asset for construction sites and civil complexes requiring high-capacity fluid management and property protection against ingress and flooding.
Sustaining fluid transfer is a 1.7 kW single-phase motor operating on a 240v supply with a rated current of 10.5 Amps. The system generates a maximum flow of 600 L/Min and reaches a maximum head of 17.5 m, providing the lifting force necessary for demanding wastewater transfer applications. Rated for continuous S1 operation when fully submerged, the pump delivers stable hydraulic performance in collection pits, sewage lifting stations and commercial drainage networks.
Reliable passage of filamentary bodies is achieved through a high-performance vortex impeller in GJL 250 cast iron. With a 50 mm free passage, this unit efficiently processes sewage without the risk of internal clogs or mechanical jams. The outlet ports are designed for versatility, featuring both 2-inch threaded and DN50 flanged connections to accommodate various discharge pipework configurations and coupling devices in commercial lift stations and drainage networks.
Mechanical construction is focused on durability, featuring a GJL 200 cast iron pump body and motor housing with a cataphoretic protective coating. The motor assembly is protected by a double mechanical seal operating in an oil chamber to help prevent contaminated liquid from reaching critical components. Integrated thermal sensors provide additional protection for the Class F insulated motor during intensive wastewater handling duties.
Features
- High-performance 1.7 kW single-phase motor provides the head capability required for wastewater lifting applications.
- Super vortex impeller design provides 50 mm free passage for untreated sewage water containing solids.
- Construction in GJL 200 cast iron with cataphoretic coating ensures durability in submerged service.
- Double mechanical seal arrangement in an oil chamber provides protection for the motor assembly.
- Thermal protection sensors integrated into the motor windings assist in safe operation.
- Continuous S1 duty rating when fully immersed supports extended operating periods.
- Threaded 2" and flanged DN50 outlet ports provide installation flexibility.
- Certified according to EN 12050-1 for lifting sewage containing faecal material in civil constructions.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 17.5 m |
| Power | 1.7 kW / 240v |
| Rated Current | 10.5 Amps |
| Suitable For | Commercial Sewage Drainage |
| Body Material | Cast Iron EN GJL 200 |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which outlet options help connect the pump to discharge pipework?
Commercial discharge layouts can use threaded 2-inch or flanged DN50 outlets on DAB FEKAFXV20.15MEX for connection flexibility in lifting stations.
What type of wastewater can the impeller pass through?
Untreated sewage containing solids and long fibers passes through the 50 mm free passage of DAB-FEKAFXV20.15MEX with reduced clogging risk.
Which motor configuration powers this sewage lifting unit?
A 1.7 kW single-phase motor runs on 240V and DAB/FEKAFXV20.15MEX has a rated current of 10.5 A for wastewater transfer.
What operating condition supports continuous duty performance?
Continuous S1 operation is intended when fully submerged and DAB_FEKAFXV20.15MEX develops a separate maximum head of 17.5 m during service.
Which standard certifies the pump for sewage lifting?
EN 12050-1 certification covers DAB FEKAFXV20 15MEX for sewage lifting and its maximum flow reaches up to 600 L/Min in operation.
