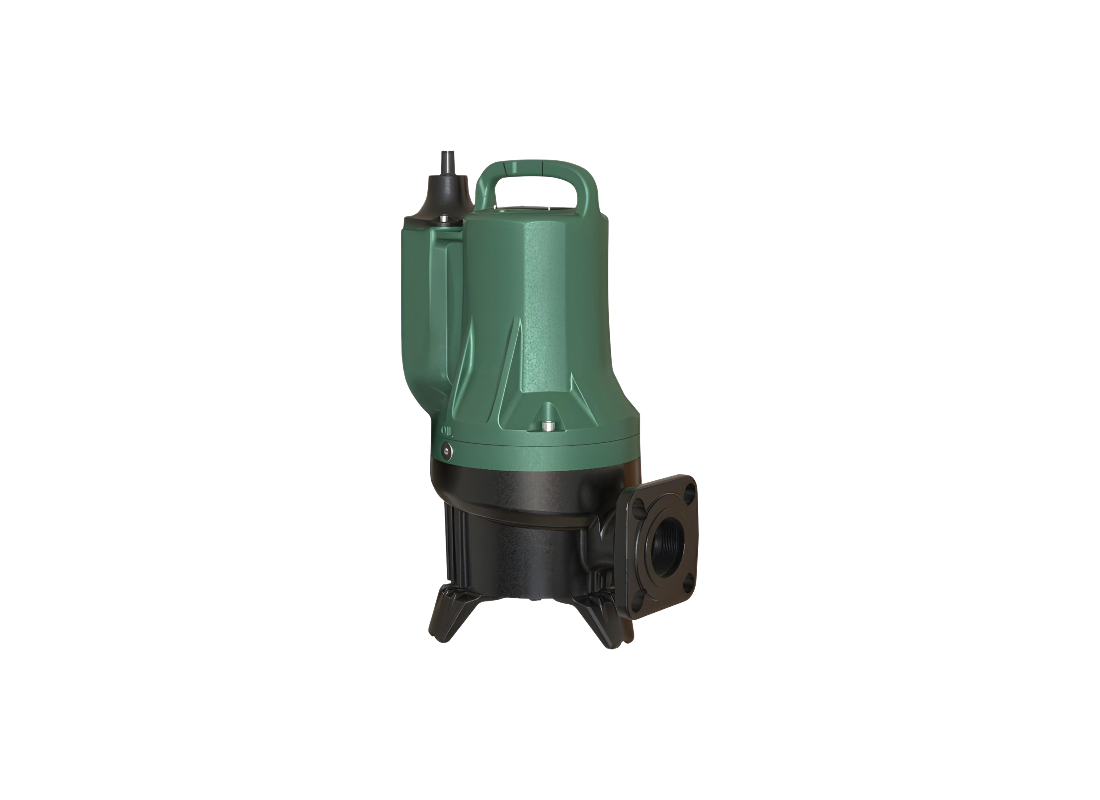

DAB FEKAFXV20.15TEX Cast Iron ATEX Approved Sewage Pump for Civil Infrastructure with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Handling high-volume sewage in civil infrastructure and commercial buildings is managed by the DAB-FEKAFXV20.15TEX. This submersible sewage pump is optimized for untreated wastewater containing suspended solids or long fibers, ensuring consistent evacuation in lifting stations. It is suitable for fixed installations using coupling devices or mobile applications when placed on the tank floor, providing a versatile solution for drainage requirements where EN 12050-1 certified reliability is mandatory.
Performance is characterized by a 1.7 kW three-phase motor on a 415v supply with a rated current of 4 Amps. This model delivers a maximum flow of 600 L/Min and reaches a 17.5 m head, maintaining efficient hydraulic performance during intensive duty cycles. Designed for continuous S1 operation when fully submerged, the pump provides dependable wastewater transfer for commercial facilities, collection pits and sewage lifting stations.
Clog-resistant operation is achieved through a cast iron vortex impeller that provides a 50 mm free passage for contaminated liquid. This configuration allows solids to pass through the housing with minimal restriction, reducing maintenance requirements and supporting long-term reliability. Horizontal and vertical discharge options via the 2-inch DN50 port facilitate easy installation and replacement in established civil wastewater systems and drainage networks.
Durability is ensured through a GJL 200 cast iron body and motor housing protected by an acrylic and cataphoretic coating for corrosion resistance. The motor assembly is protected by a double mechanical seal operating in an oil chamber to help isolate internal components from the pumped liquid. Thermal sensors integrated within the windings provide protection for the Class F insulated motor during demanding wastewater handling applications.
Features
- Super vortex impeller in GJL 250 cast iron facilitates 50 mm free passage for solids and long fibers.
- Compliant with EN 12050-1 standards for sewage lifting containing faecal matter.
- Powerful 1.7 kW three-phase motor provides reliable wastewater transfer performance.
- Double mechanical seal operating in an oil chamber helps protect the motor assembly.
- GJL 200 cast iron construction with protective coating provides durability in wastewater pits.
- Universal outlet port supports both 2" threaded and DN50 flanged connections.
- Motor winding thermal sensors provide protection against excessive operating temperatures.
- Constructive solution allows convenient access to major service components.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 17.5 m |
| Power | 1.7 kW / 415v |
| Rated Current | 4 Amps |
| Suitable For | Commercial Sewage Drainage |
| Body Material | Cast Iron EN GJL 200 |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which installation options are available for this sewage pump?
Fixed coupling or mobile tank-floor placement is supported and DAB FEKAFXV20.15TEX suits commercial sewage lifting stations and civil drainage networks.
What solids passage helps reduce wastewater clogging?
A cast iron vortex impeller allows 50 mm free passage for contaminated liquid and DAB-FEKAFXV20.15TEX helps limit restrictions from suspended solids.
What is the maximum flow rate for this model?
Transfer capacity reaches up to 600 L/Min. DAB/FEKAFXV20/15TEX has a separate maximum head of 17.5 m for sewage lifting in below-ground stations.
What features help protect the motor from liquid ingress?
A double mechanical seal operates inside an oil chamber while DAB_FEKAFXV20_15TEX uses winding thermal sensors to protect its Class F motor.
Which sewage standard and operating duty rating apply?
EN 12050-1 compliance supports sewage lifting and DAB FEKAFXV20 15TEX is rated for continuous S1 operation when fully submerged in sewage stations.
