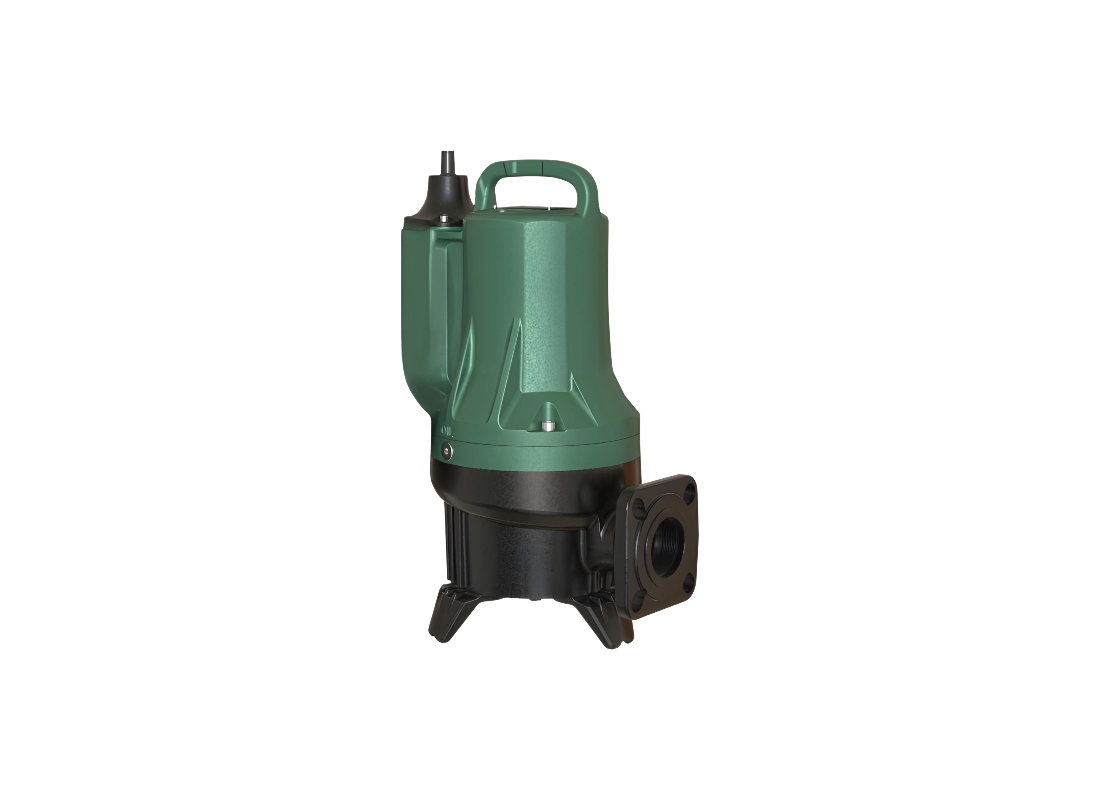

DAB FEKAFXV20.22TEX Cast Iron 50mm Free Passage Sewage Pump for Building Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official DAB
Peace of Mind
Product Overview
Designed for heavy-duty evacuation of sewage water in large complexes, the DAB-FEKAFXV20.22TEX is a high-capacity submersible pump for commercial services. It processes untreated wastewater with solids and filamentary bodies in suspension, making it suitable for lifting stations in construction sites and civil infrastructure. Certified to EN 12050-1, this unit provides the durability required for property protection and wastewater transfer in rooms subject to frequent flooding and high ingress.
Evacuation capability is powered by a 2.2 kW three-phase motor on a 415v supply with a rated current of 5 Amps. This high-capacity model produces a maximum flow of 800 L/Min and reaches a maximum head of 19 m for the efficient movement of effluent. Rated for continuous S1 operation when fully submerged, it provides dependable hydraulic performance for wastewater transfer duties in commercial drainage systems and sewage collection stations.
Fluid handling is supported by a super vortex impeller in GJL 250 cast iron, providing a 50 mm free passage for untreated sewage. This design minimizes the risk of clogging by allowing wastewater and suspended solids to move freely through the hydraulic section. The horizontal and vertical discharge ports, featuring both flanged DN50 and threaded 2" connections, ensure the pump can be integrated into commercial drainage networks and sewage lifting infrastructure.
The motor housing and pump body are constructed from GJL 200 cast iron with a protective cataphoretic coating to resist corrosion in aggressive fluids. A double mechanical seal operating in an oil chamber provides protection for the motor assembly, while thermal sensors integrated into the windings help safeguard the Class F insulated motor during demanding service conditions. The construction also facilitates access to major components for simplified maintenance procedures.
Features
- Super vortex impeller design provides 50 mm free passage for sewage containing solids and long fibers.
- High-capacity 2.2 kW three-phase motor delivers 800 L/Min flow for demanding wastewater transfer applications.
- EN 12050-1 certification confirms suitability for sewage lifting containing faecal material.
- GJL 200 cast iron body and motor housing provide durability in aggressive wastewater environments.
- Double mechanical seal operating in an oil chamber assists in protecting the motor assembly.
- Motor winding thermal sensors provide additional protection during intensive operation.
- Versatile discharge port supports DN50 flanged and 2" threaded connections.
- Protective coating system helps improve corrosion resistance and service life.
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 19 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5 Amps |
| Suitable For | Commercial Sewage Drainage |
| Body Material | Cast Iron EN GJL 200 |
| Liquid Temperature | Maximum 50°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which solids passage helps reduce blockages during sewage transfer?
During untreated sewage transfer DAB FEKAFXV20.22TEX uses a super vortex impeller that provides a 50 mm free passage for suspended solids and fibers.
What motor supply and rated current support this pump?
Three-phase operation uses a 415V supply and DAB-FEKAFXV20.22TEX has a 2.2 kW motor with a rated current of 5 A.
Which discharge connections are available for installation flexibility?
Installation can use DN50 flanged or 2-inch threaded outlets on DAB/FEKAFXV20.22TEX to suit commercial drainage pipework and sewage lifting stations.
What operating duty applies when the pump is submerged?
Continuous S1 duty is supported when fully submerged and DAB_FEKAFXV20.22TEX has a maximum head of 19 m for sewage evacuation.
Which certification covers sewage lifting in commercial infrastructure?
EN 12050-1 certification applies to DAB FEKAFXV20 22TEX for sewage lifting while its maximum flow reaches up to 800 L/Min.
